Procedure For Malfunction A

WARNING: This page is about a different variant/trim than selected.

NOTE: If engine will not start or stops soon, wait at least 10 seconds with engine stopped (Ignition switch ON) instead of running engine at idle speed.

With CONSULT-II

Turn ignition switch ON.
Select "DATA MONITOR" mode with CONSULT-II.

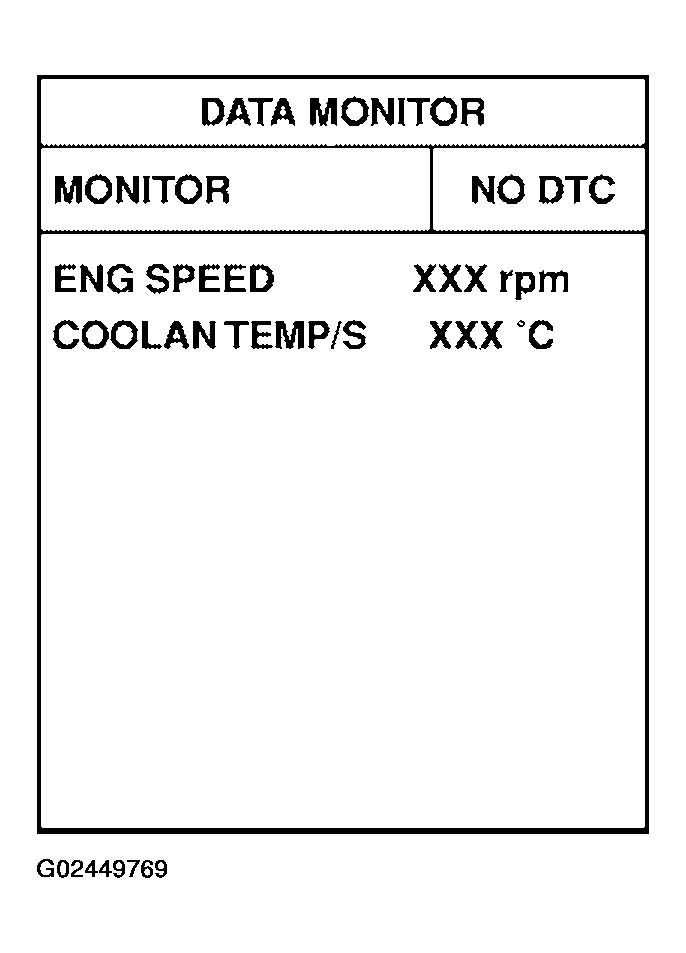

Fig 1: CONSULT-II Display - DATA MONITOR Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and warm it up to normal operating temperature.
Run engine for at least 10 seconds at idle speed.
If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

With GST

Follow the procedure "With CONSULT-II" above.
