On Board Diagnosis Logic: Notes

These self-diagnoses have the one trip detection logic.

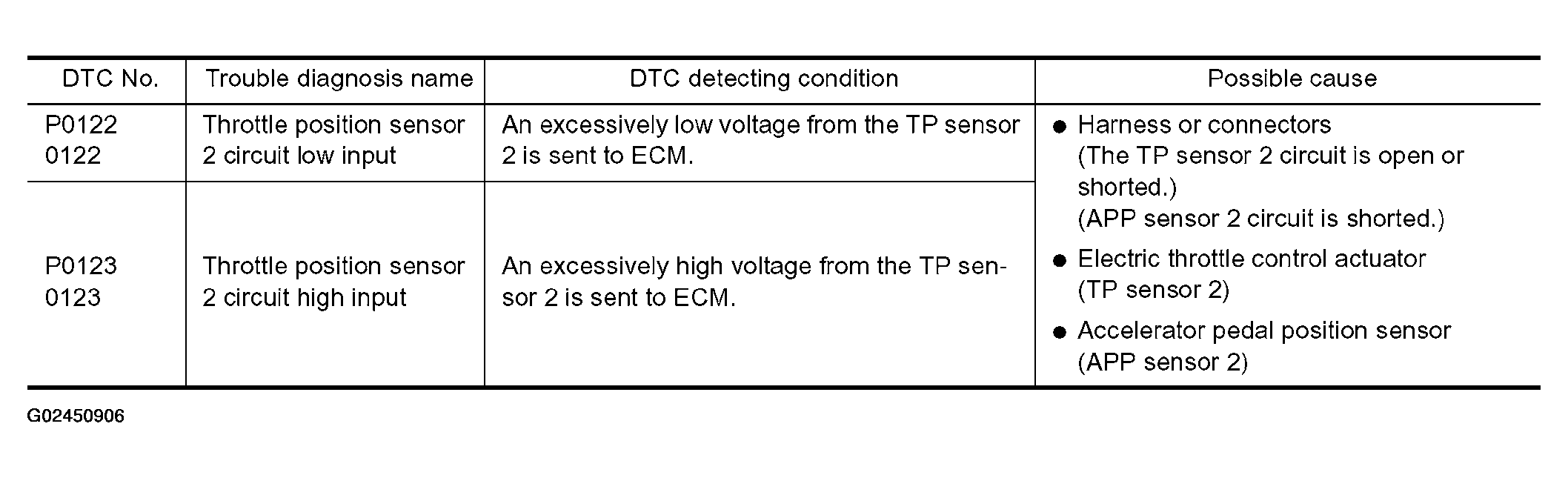

Fig 1: DTC P0122 & P0123: Detecting Condition Chart

G02450906

Courtesy of NISSAN MOTOR CO., U.S.A.
