Diagnostic Procedure

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten engine two screws on the body.
  Refer to "GROUND INSPECTION ".

  Fig 1: Locating ECM Ground Screws On Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 2.
2. NG : Repair or replace ground connections.
CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select "MAIN SW", "RESUME/ACC SW", "SET SW" and "CANCEL SW" in "DATA MONITOR" mode with CONSULT-II.
3. Check each item indication under the following conditions.

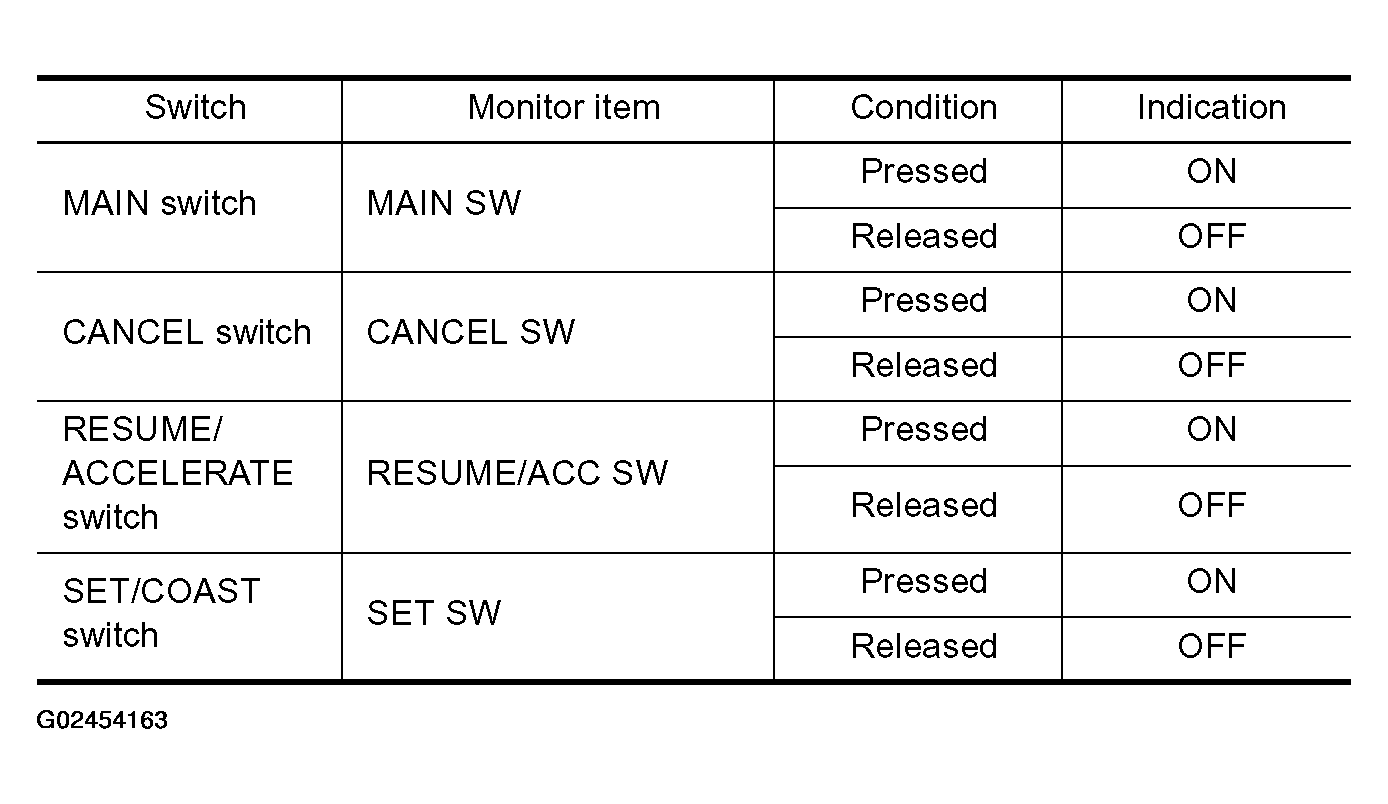

  Fig 2: Monitor Item And Condition Chart - ASCD (Cruise Control) Steering Switch
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 3: DATA MONITOR - CONSULT-II Display Screen
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 99 and ground with pressing each button.

  Fig 4: ECM Terminal 99 Voltage Specification Chart - ASCD (Cruise Control) Steering Switch
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 5: Checking Voltage Between ECM Connector Terminal 99 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 8.
2. NG : GO TO 3.
CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ASCD steering switch harness connector.

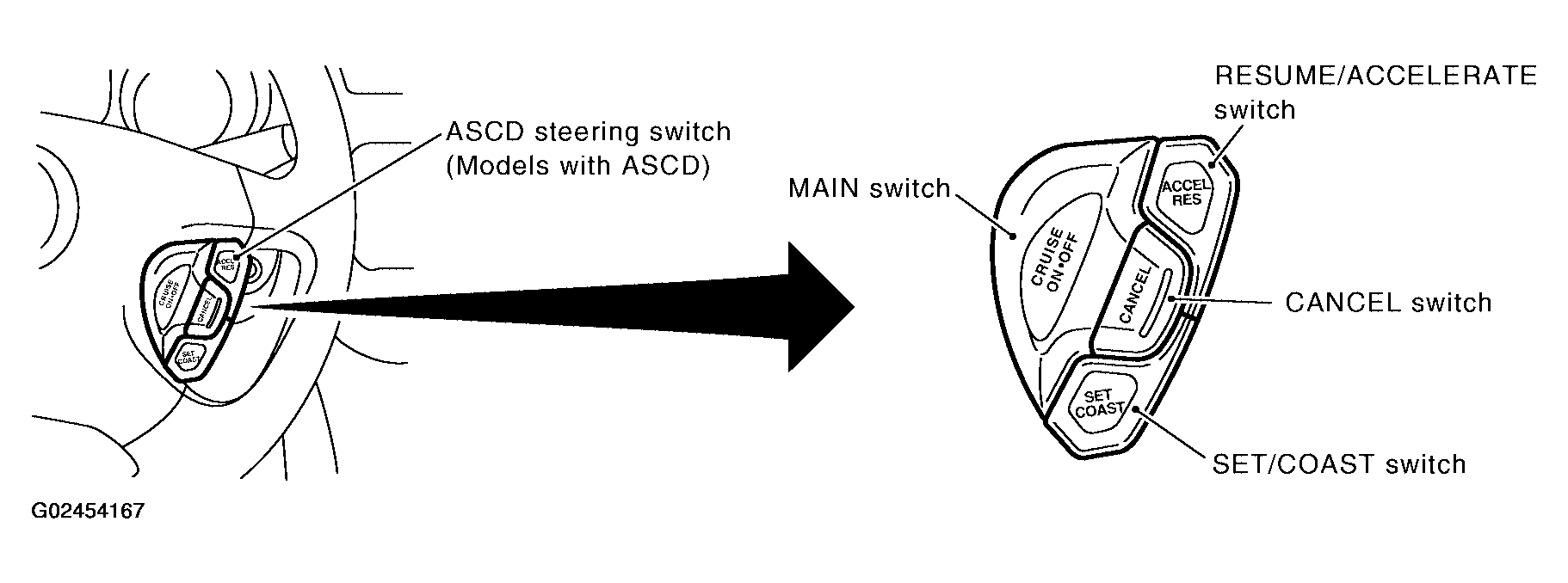

  Fig 6: Identifying ASCD (Cruise Control) Steering Switch
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Disconnect ECM harness connector.
4. Check harness continuity between ASCD steering switch terminal 1 and ECM terminal 67. Refer to WIRING DIAGRAM .
  1. Continuity should exist.
5. Also check harness for short to ground and short to power.
OK or NG
1. OK : GO TO 5.
2. NG : GO TO 4.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors M401, M102
- Harness connectors M59, F27
- Spiral cable
- Harness for open or short between ECM and ASCD steering switch
  1. : Repair open circuit or short to ground or short to power in harness or connectors.
CHECK ASCD STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 99 and ASCD steering switch terminal 4. Refer to WIRING DIAGRAM .
  1. Continuity should exist.
2. Also check harness for short to ground and short to power.
OK or NG
1. OK : GO TO 7.
2. NG : GO TO 6.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors M401, M102
- Harness connectors M59, F27
- Spiral cable
- Harness for open or short between ECM and ASCD steering switch
  1. : Repair open circuit or short to ground or short to power in harness or connectors.
CHECK ASCD STEERING SWITCH
Refer to "COMPONENT INSPECTION ".

OK or NG
1. OK : GO TO 8.
2. NG : Replace ASCD steering switch.
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
1. : INSPECTION END
