On Board Diagnosis Logic

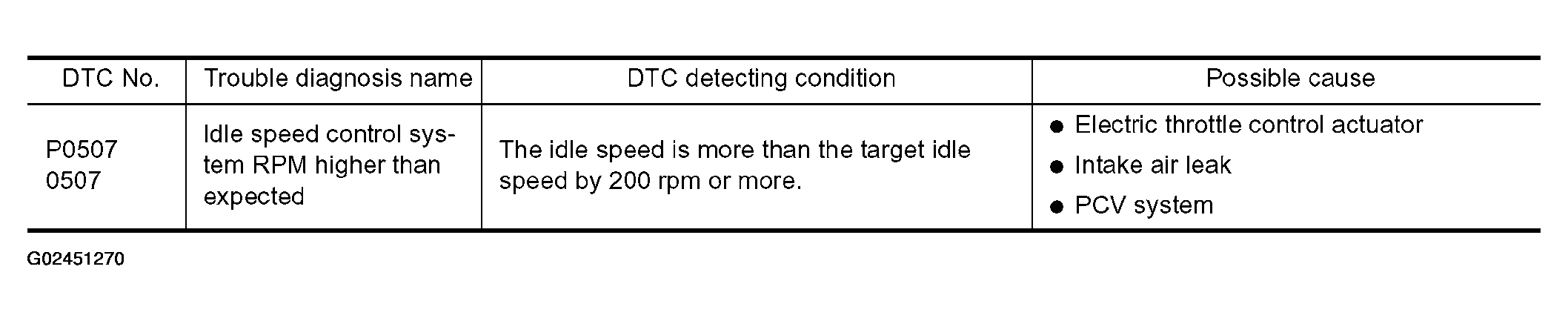

Fig 1: DTC P0507: Condition Detecting Chart

G02451270

Courtesy of NISSAN MOTOR CO., U.S.A.
