Data Monitor (Spec) Mode
>>
Monitored Item
Monitored Item

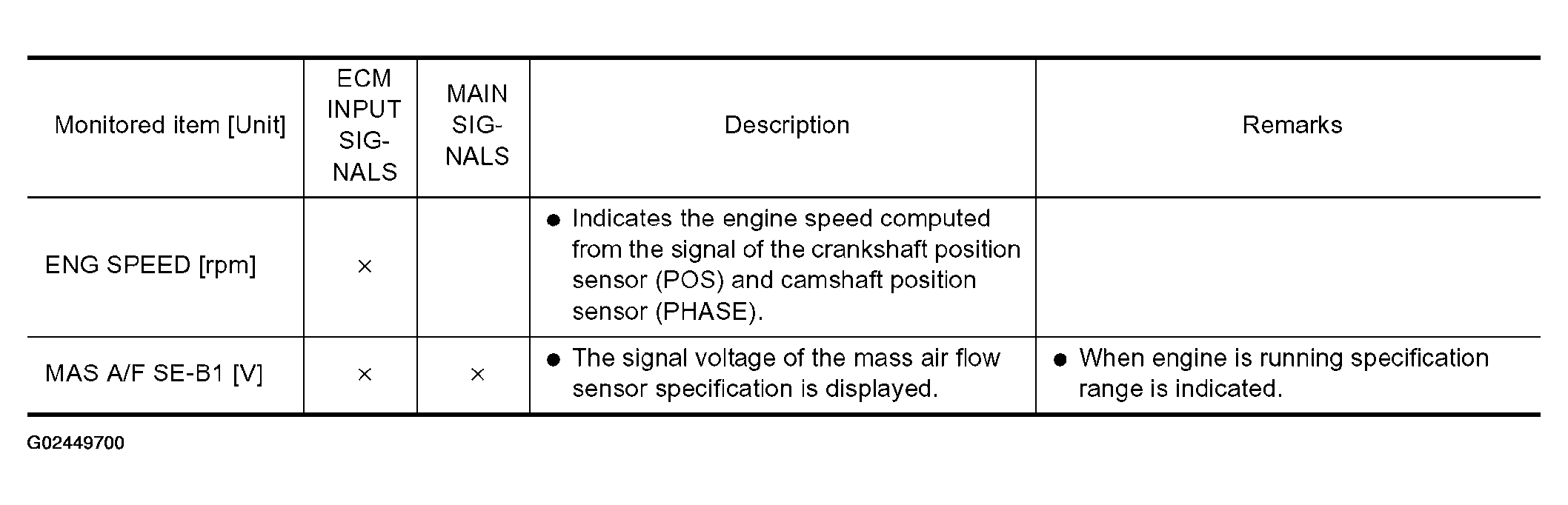

Fig 1: Data Monitor (SPEC) - Monitored Item (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

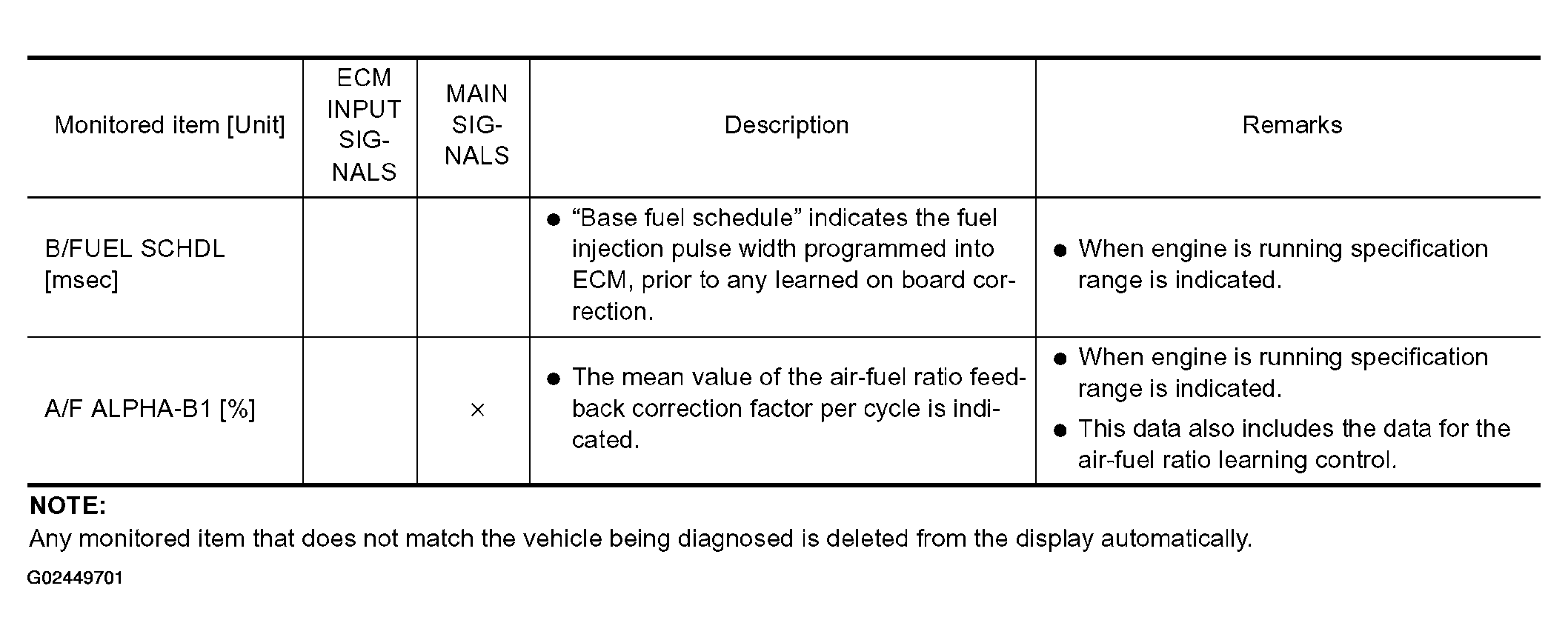

Fig 2: Data Monitor (SPEC) - Monitored Item (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
