With Consult-II

  1. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
  2. Start engine and warm it up to the normal operating temperature.
  3. Maintain the following conditions for at least 6 consecutive seconds.

    Hold the accelerator pedal as steady as possible.

    SPECIFIED CONDITIONS TABLE

    ENG SPEED 1, 200 - 2, 000 RPM
    COOLAN TEMP/S 60 - 120°C (140 - 248°F)
    B/FUEL SCHDL More than 3.38 msec
    Shift lever P or N position

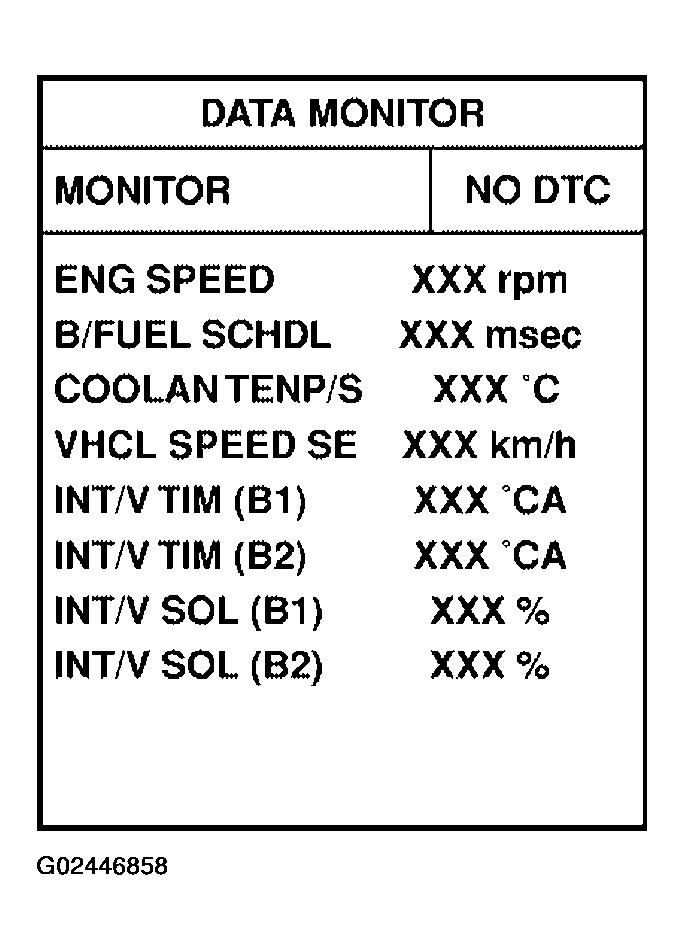

    Fig 1: CONSULT-II Data Monitor Screen Display
    G02446858Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Let engine idle for 10 seconds.
  5. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

    If 1st trip DTC is not detected, go to next step.

  6. Maintain the following conditions for at least 20 consecutive seconds.
    SPECIFIED CONDITIONS TABLE

    ENG SPEED 1, 700 - 3, 175 RPM (A constant rotation is maintained.)
    COOLANT TEMPS 70 - 105°C (158 - 221°F)
    Shift lever 1st or 2nd position
    Driving location uphill Driving vehicle uphill (Increased engine load will help maintain the driving conditions required for this test.)
  7. If the 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
