Battery Current Sensor

WARNING: This page is about a different car, the 2005 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reconnect harness connectors disconnected.
  2. Disconnect battery negative cable.
  3. Install jumper cable between battery negative terminal and body ground.

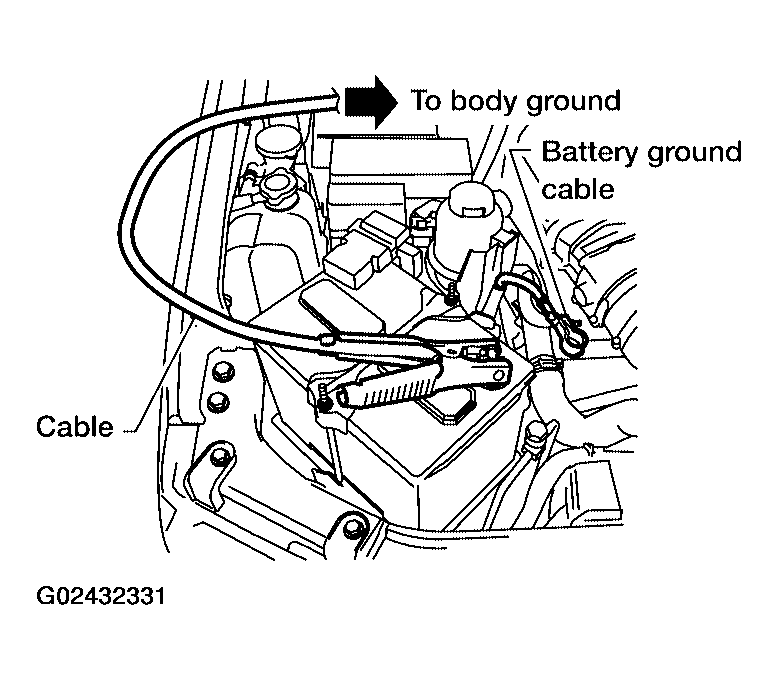

    Fig 1: Installing Jumper Cable Between Battery Negative Terminal And Body Ground
    G02432331Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Turn ignition switch ON.
  5. Check voltage between ECM terminal 71 (battery current sensor signal) and ground.
    • Voltage: Approximately 2.5V
    Fig 2: Checking Voltage Between ECM Connector Terminal 71 (Battery Current Sensor Signal) And Ground
    G02432332Courtesy of NISSAN MOTOR CO., U.S.A.
  6. If NG, replace battery negative cable assembly.
