Stop Lamp Switch

WARNING: This page is about a different car, the 2005 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check harness continuity between stop lamp switch terminals 1 and 2 under the conditions listed in STOP LAMP SWITCH DIAGNOSTIC CONDITIONS  table.
    STOP LAMP SWITCH DIAGNOSTIC CONDITIONS

    Condition Continuity
    When brake pedal is fully released. Should not exist.
    When brake pedal is slightly depressed. Should exist.

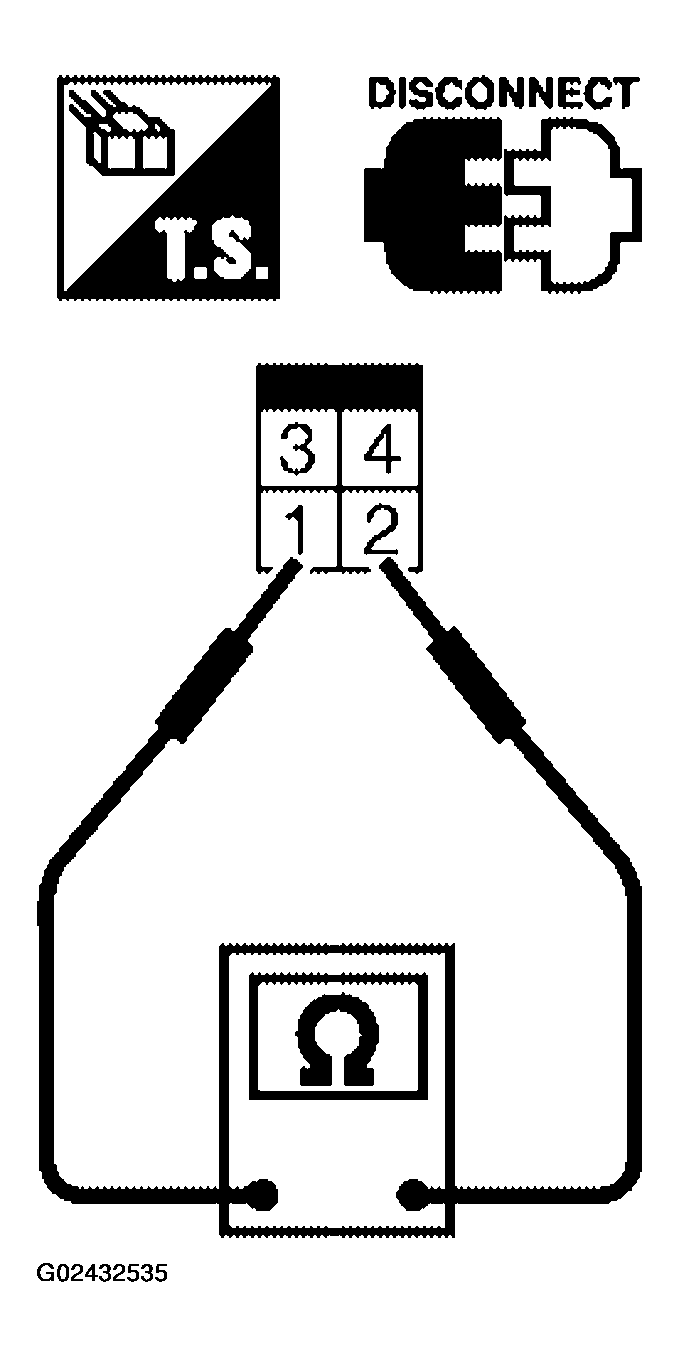

    Fig 1: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2
    G02432535Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, adjust stop lamp switch installation, refer to BRAKE PEDAL , and perform step 3 again.
