On Board Diagnosis Logic

The MIL will not light up for this self-diagnosis.

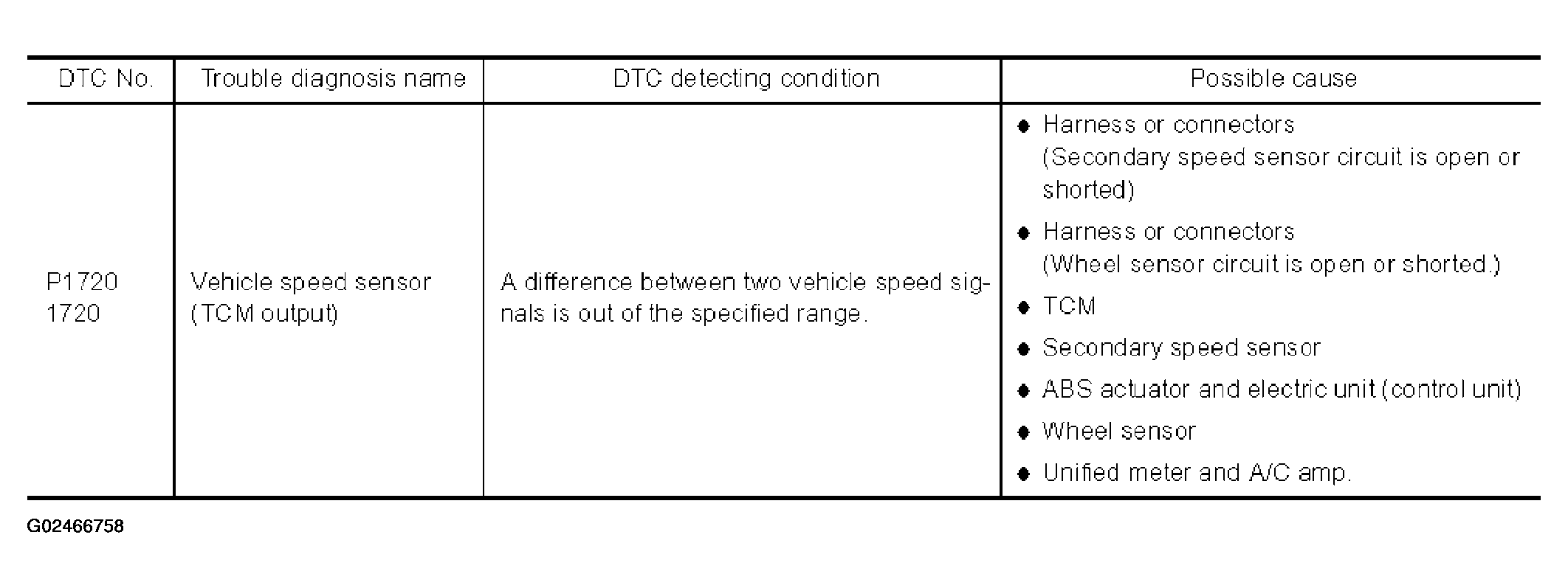

Fig 1: DTC Detecting Condition - Possible Cause Chart

G02466758

Courtesy of NISSAN MOTOR CO., U.S.A.
