On Board Diagnosis Logic

This self-diagnosis has the one trip detection logic.

The MIL will not light up for this diagnosis.

NOTE:
  • If DTC P1574 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000, U1001. refer to DTC U1000, U1001 CAN COMMUNICATION LINE .
  • If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500. refer to DTC P0500 VSS
  • If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. refer to DTC P0605 ECM

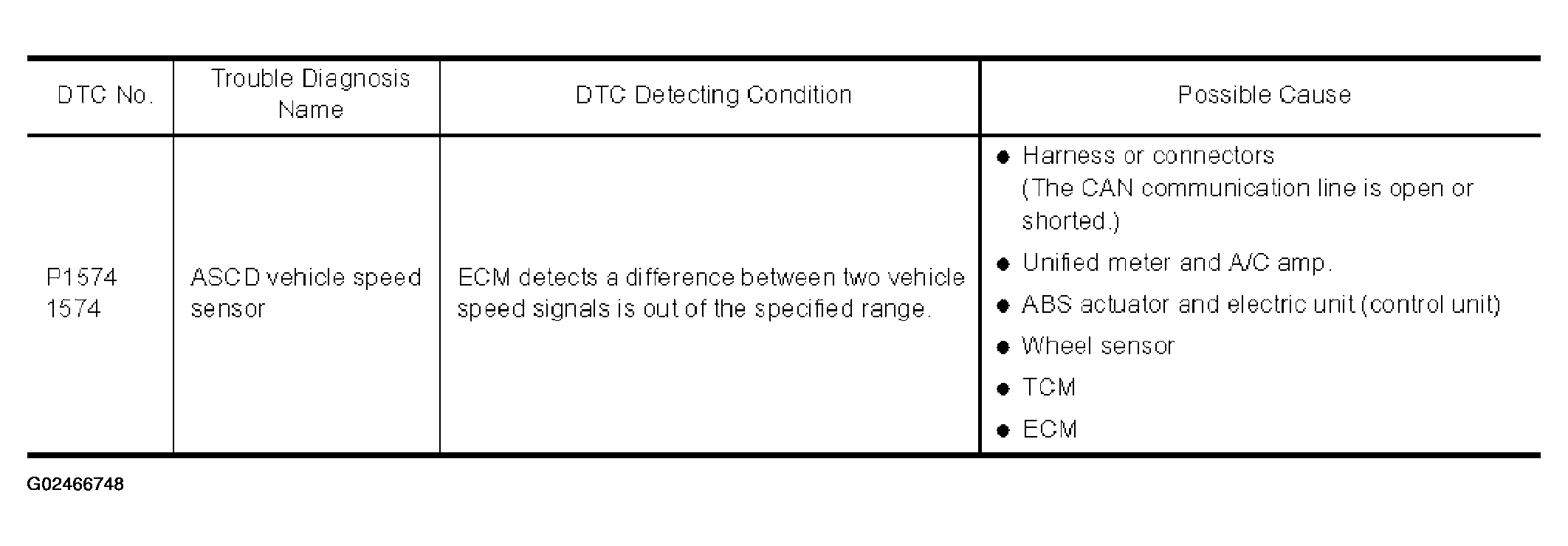

Fig 1: DTC Detecting Condition - Possible Cause Chart
G02466748Courtesy of NISSAN MOTOR CO., U.S.A.
