Fail-Safe Mode

When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

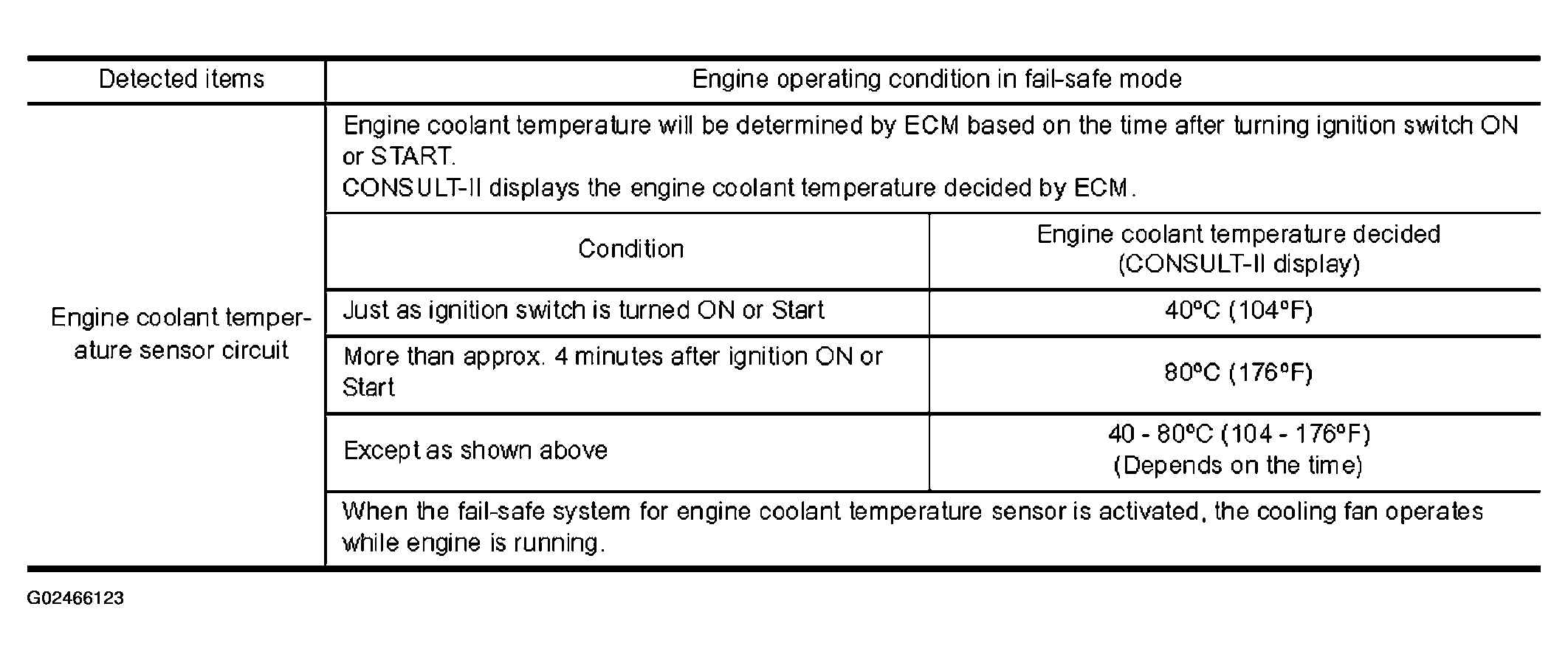

Fig 1: Engine Coolant Temperature Sensor - Engine Operating Conditions In Fail-Safe Mode
G02466123Courtesy of NISSAN MOTOR CO., U.S.A.
