Mike's Workshop Manuals
: Service manuals for every vehicle
Home
>>
Nissan-Datsun
>>
2005
>>
Maxima SL
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Power Steering Gear And Linkage
>>
Disassembly and Assembly
>>
Notes
Disassembly and Assembly: Notes

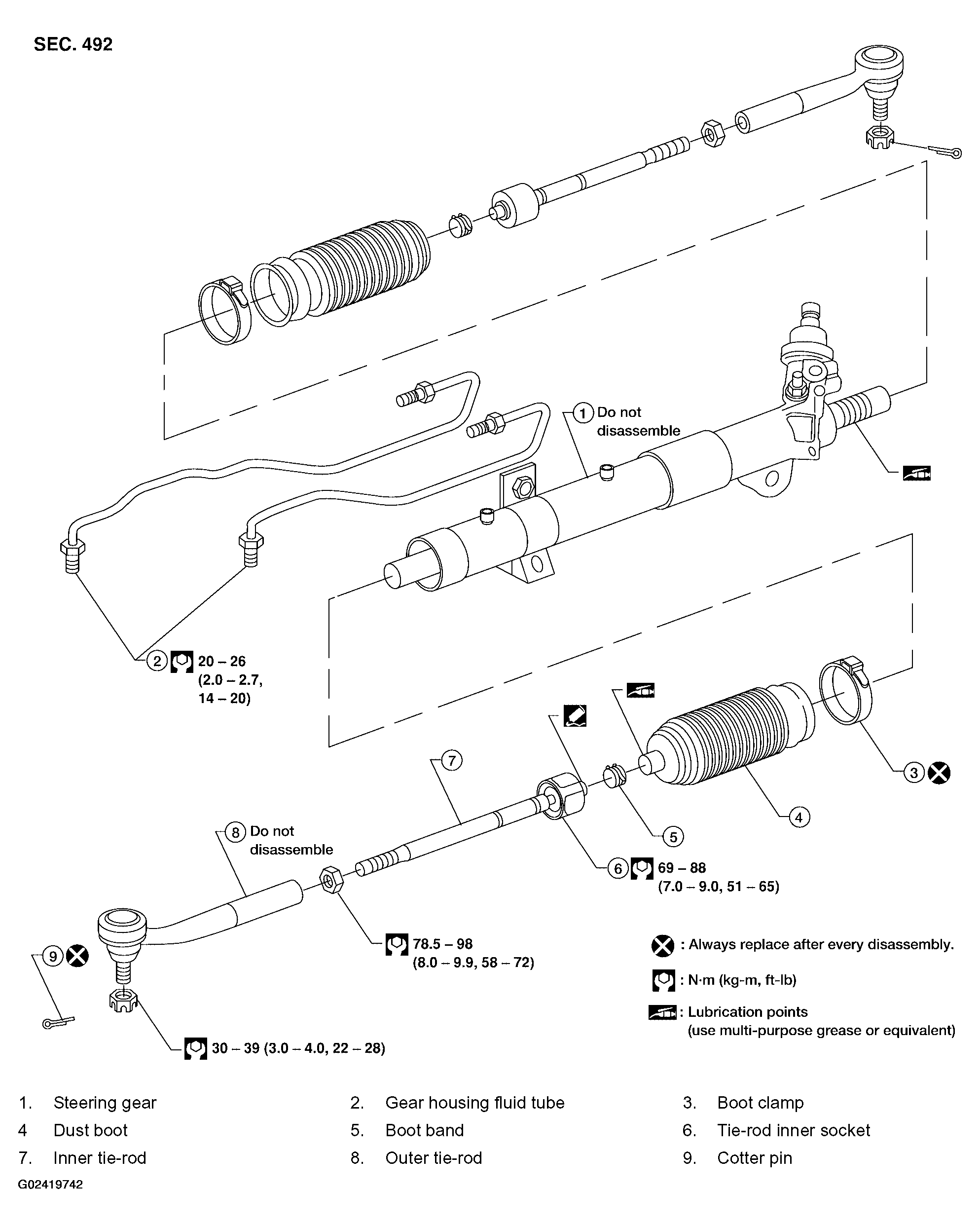

Fig 1: Power Steering Gear & Linkage With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
