Wiring Diagram - FTTS

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

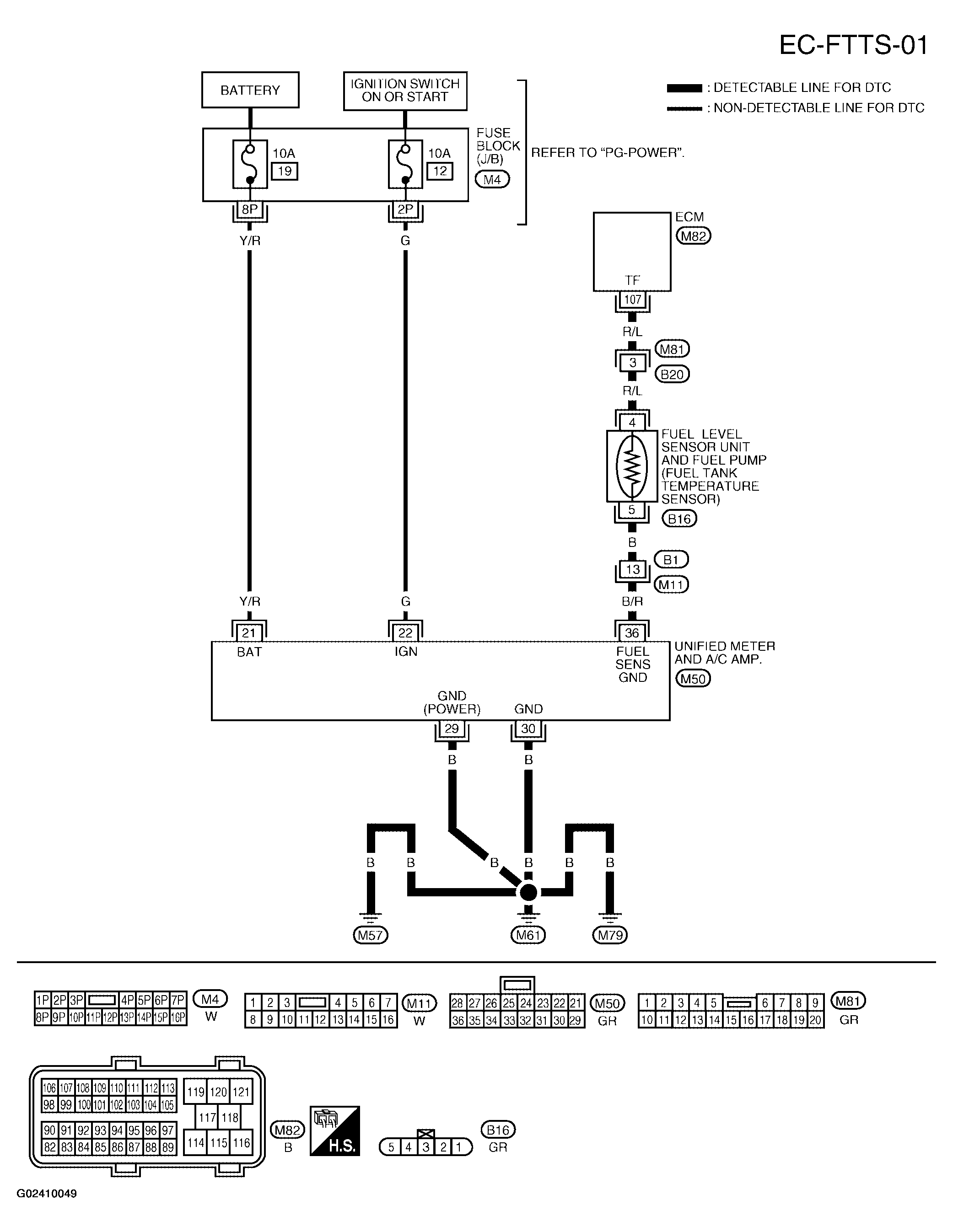

Fig 1: Wiring Diagram - (EC-FTTS-01)

G02410049

Courtesy of NISSAN MOTOR CO., U.S.A.
