Home >> Nissan-Datsun >> 2005 >> Maxima SL >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> DTC P0172, P0175: Fuel Injection System Function >> Wiring Diagram >> Bank 1

Bank 1

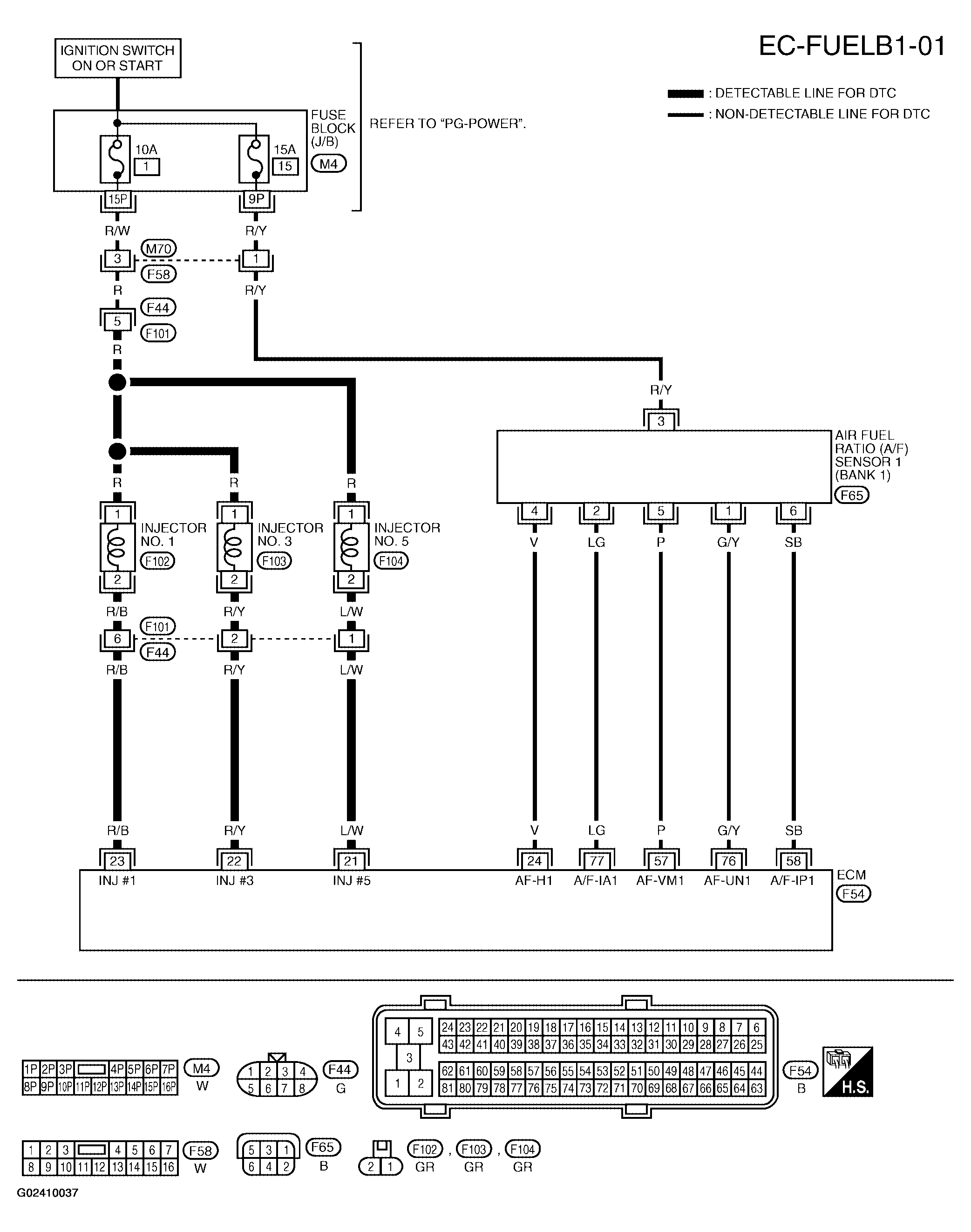

Fig 1: Wiring Diagram - (EC-FUELB1-01)

G02410037

Courtesy of NISSAN MOTOR CO., U.S.A.
