Wiring Diagram - ECTS

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

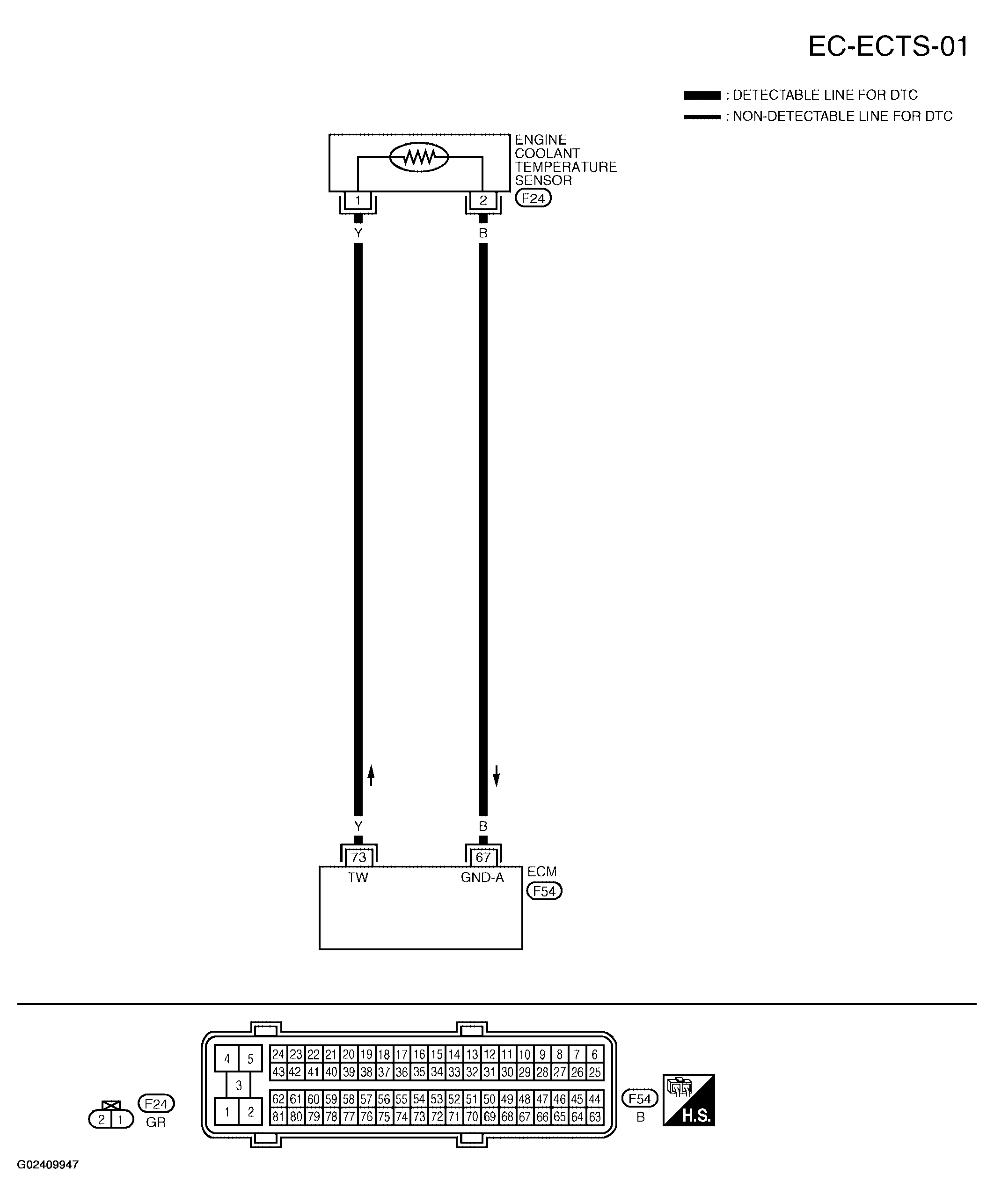

Fig 1: Wiring Diagram (EC-ECTS-01)

G02409947

Courtesy of NISSAN MOTOR CO., U.S.A.
