Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Audio, Visual, Navigation & Telephone System
>>
Navigation System
>>
Terminals and Reference Value for NAVI Control Unit
Terminals and Reference Value for NAVI Control Unit

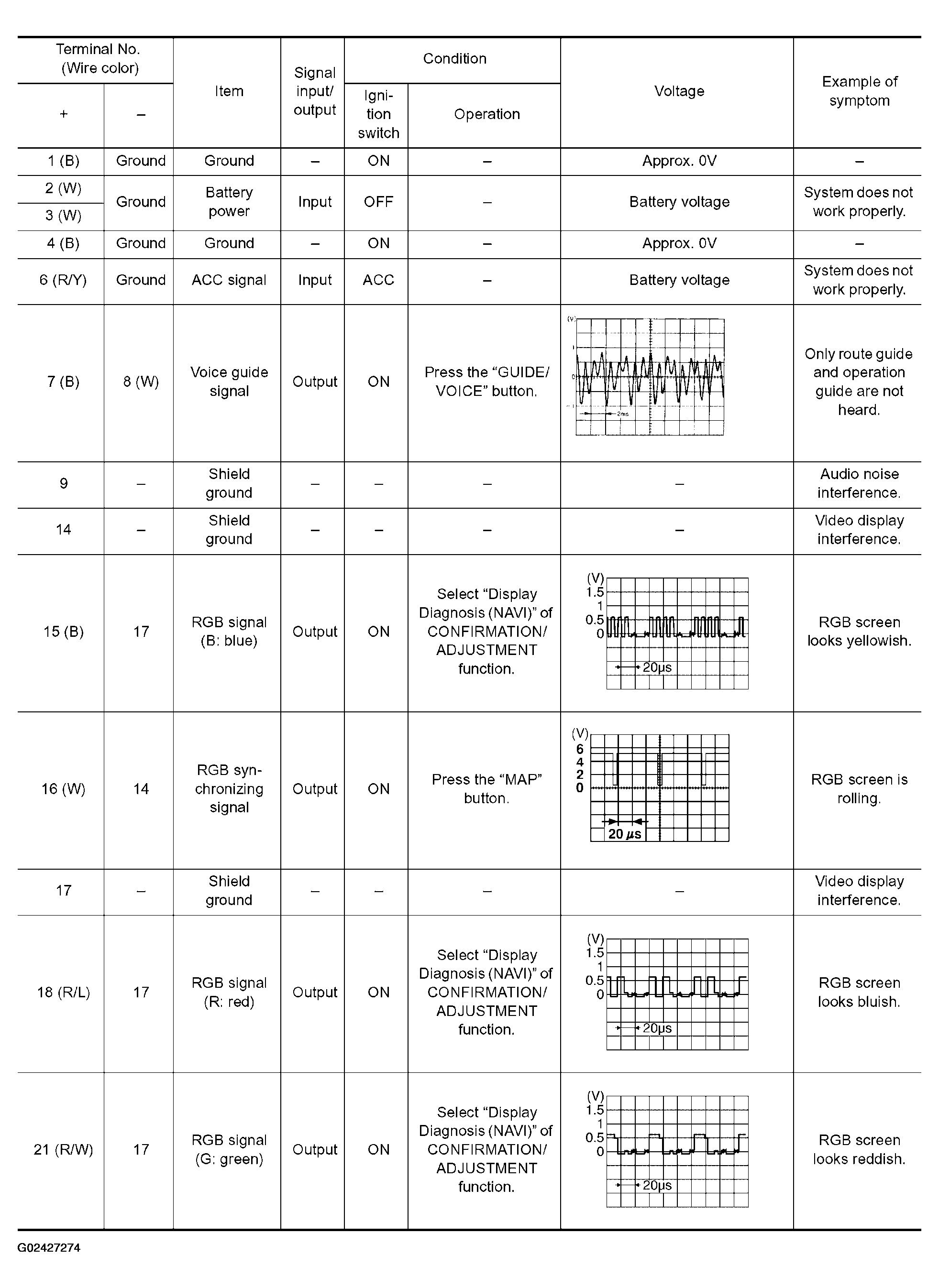

Fig 1: Connector Terminals Voltage Reference Chart - NAVI Control Unit (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

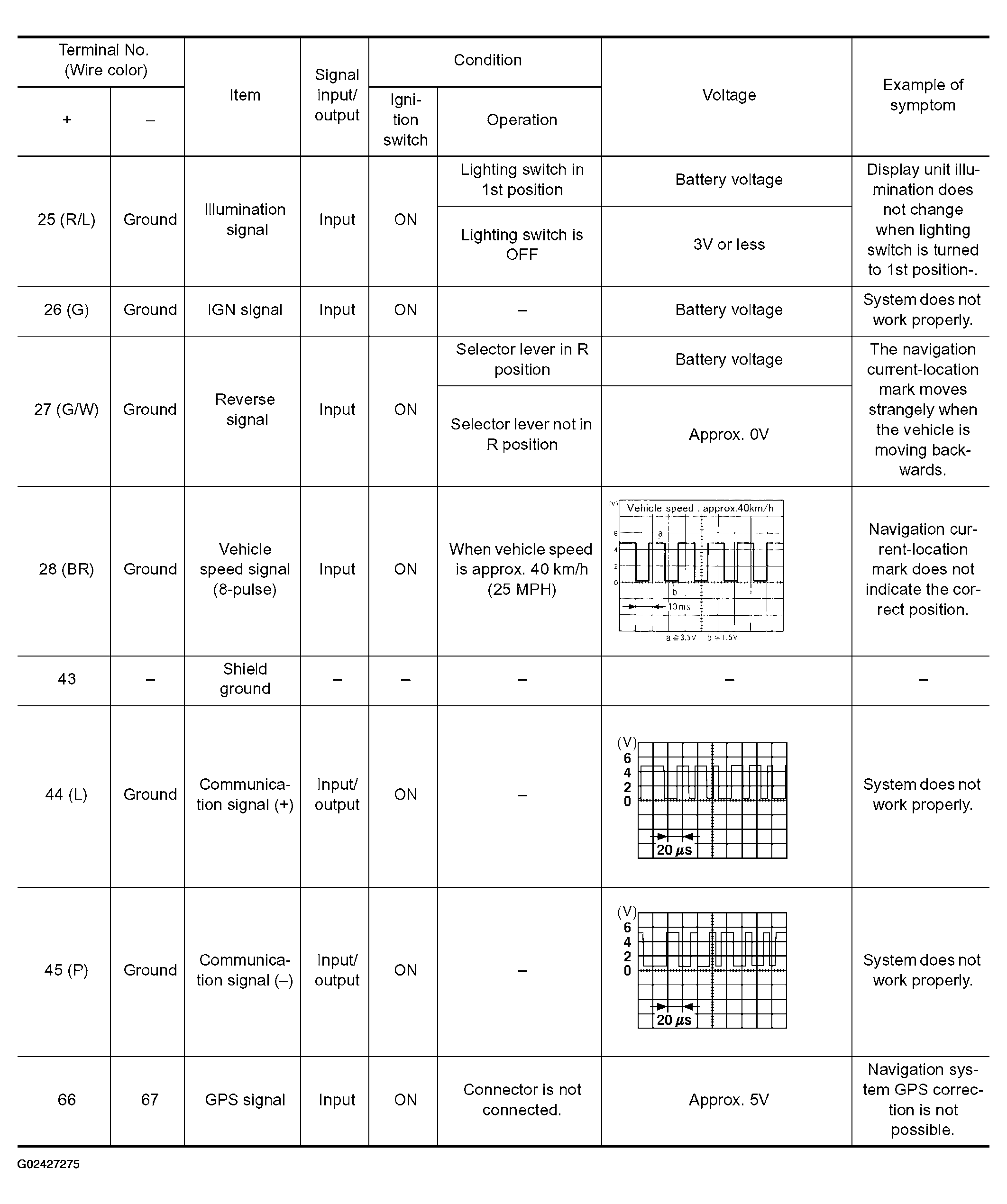

Fig 2: Connector Terminals Voltage Reference Chart - NAVI Control Unit (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
