D/N Screen

When D/N switch is pressed, adjustment luminance of screen changes.
If D/N is pressed again, DAY-NIGHT (NIGHT-DAY) mode (screen of adjustment luminance) changes.
As follows:

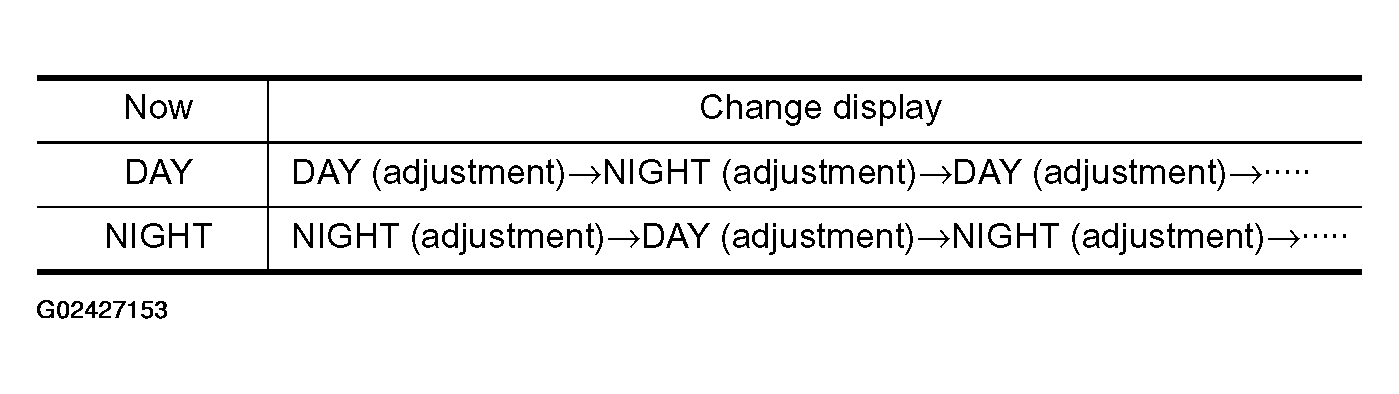

Fig 1: Change Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

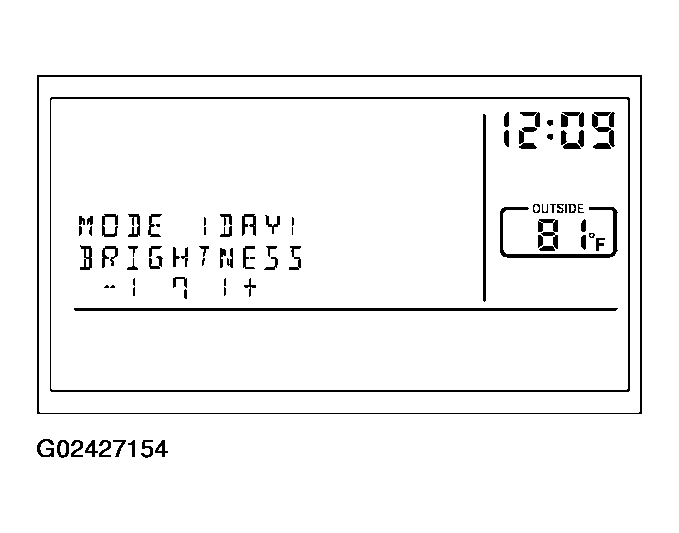

Fig 2: D/N Screen Mode Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Press "PREV" or do not operate for 10 sec. when displayed screen of adjustment luminance, returns to default screen (same mode).
Can adjust luminance by joystick (R/L) in adjustment screen.
Adjustment range is a 12 stage (MIN to MAX) and default set value is 10 (DAY) and 4 (NIGHT).
