DTC P0182, P0183: FTT Sensor: Wiring Diagram

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

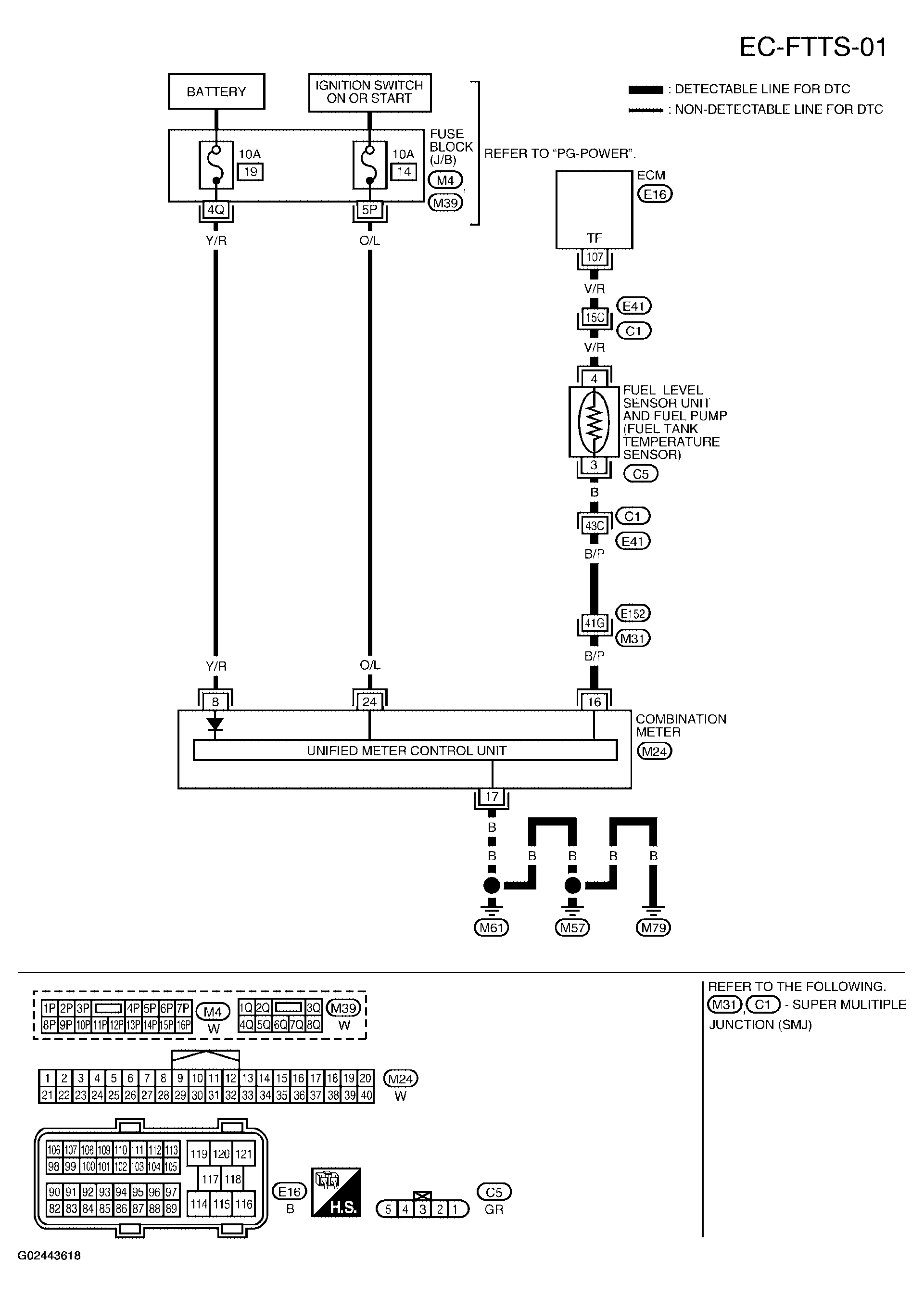

Fig 1: Wiring Diagram - (EC-FTTS-01)

G02443618

Courtesy of NISSAN MOTOR CO., U.S.A.
