Disassembly And Assembly: Notes

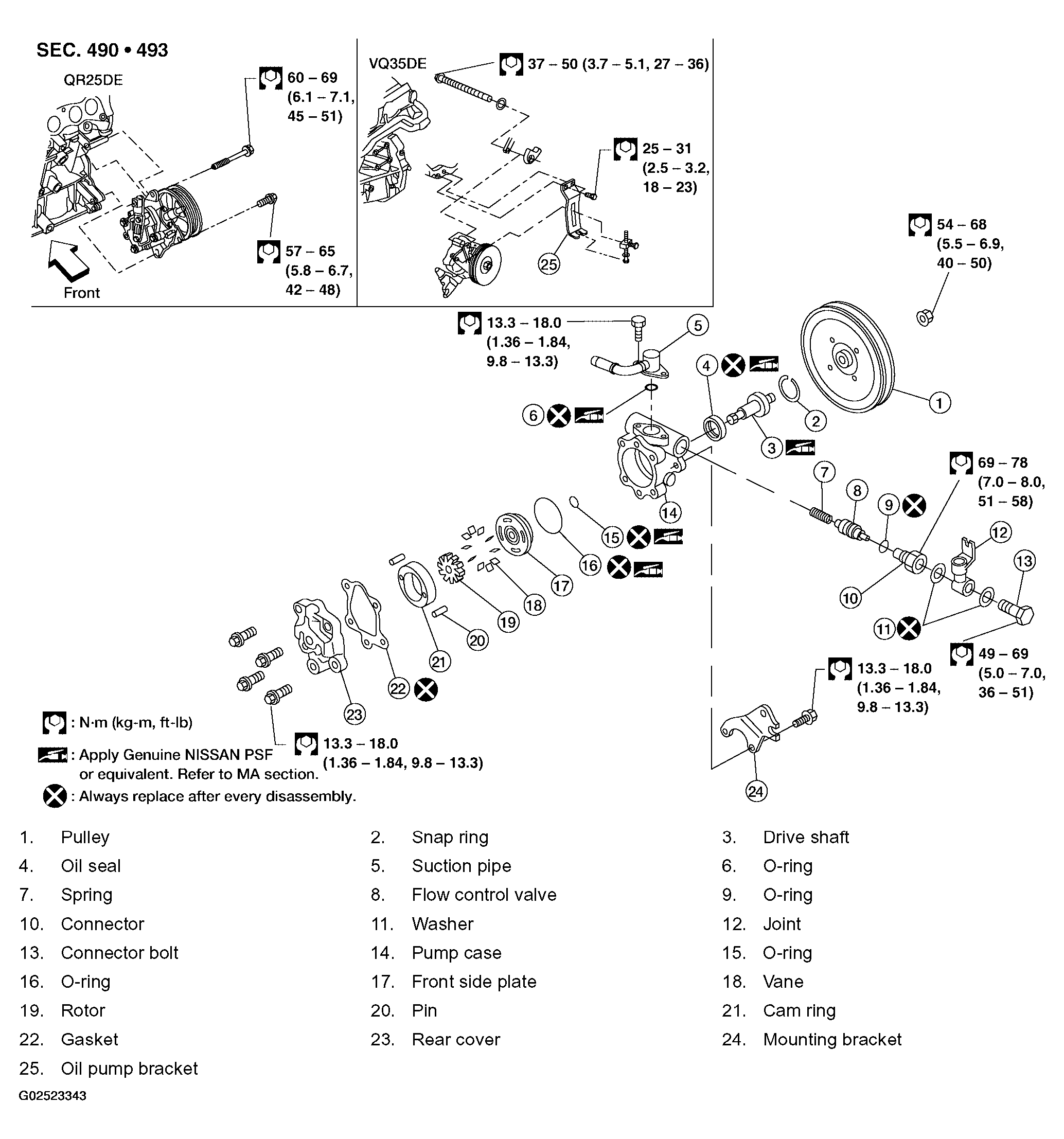

Fig 1: Exploded View Of Steering Oil Pump

G02523343

Courtesy of NISSAN MOTOR CO., U.S.A.
