Disassembly And Assembly: Notes

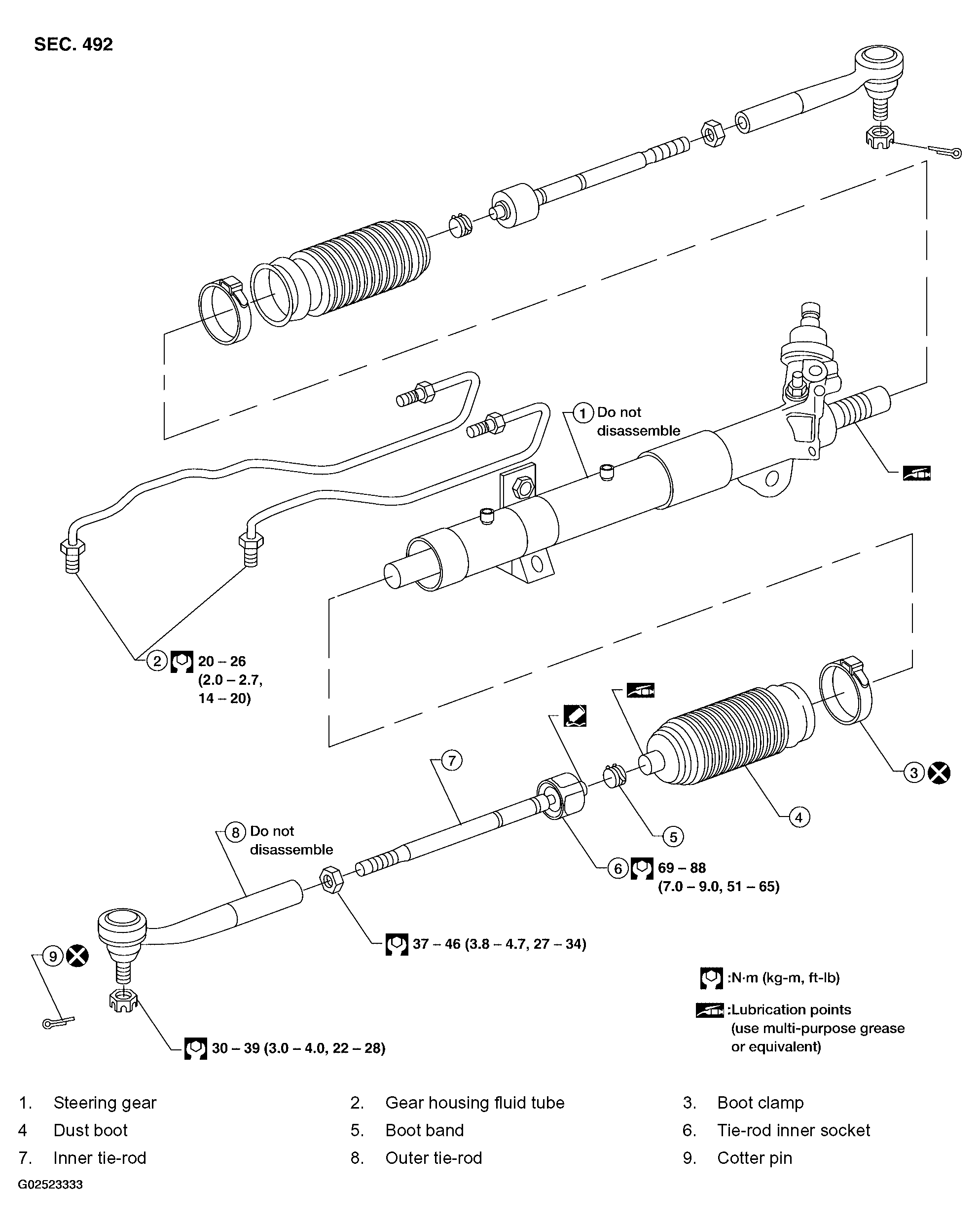

Fig 1: Exploded View Of Steering Gear

G02523333

Courtesy of NISSAN MOTOR CO., U.S.A.
