On Board Diagnosis Logic

This self-diagnosis has the one trip detection logic.

The MIL will not light up for this diagnosis.

NOTE:
  • If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC U1000, U1001. Refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".
  • If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500. Refer to "DTC P0500 VSS "
  • If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P060. Refer to "DTC P0605 ECM "

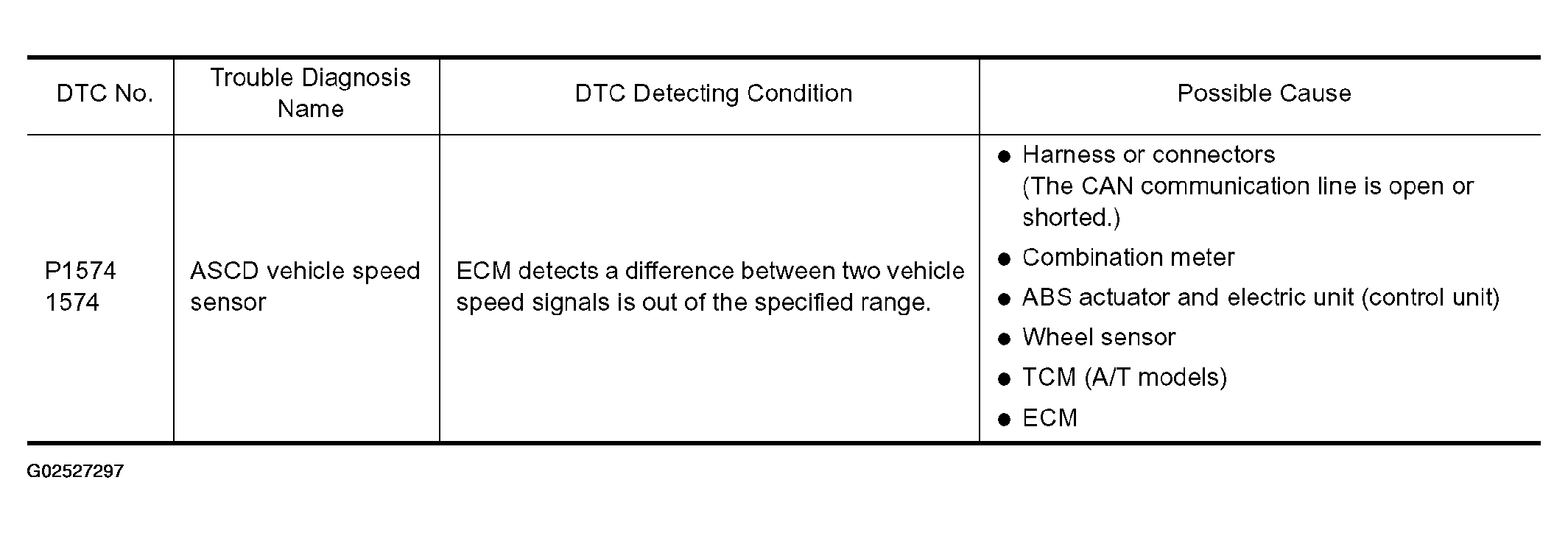

Fig 1: DTC P1574 Detecting Condition Possible Cause Chart
G02527297Courtesy of NISSAN MOTOR CO., U.S.A.
