Home >> Nissan-Datsun >> 2005 >> Altima SE-R, Standard >> Repair and Diagnosis >> Electrical >> Gauges >> Driver Information System >> Board Computer >> Wiring Diagram-B/COMP --

Wiring Diagram-B/COMP --

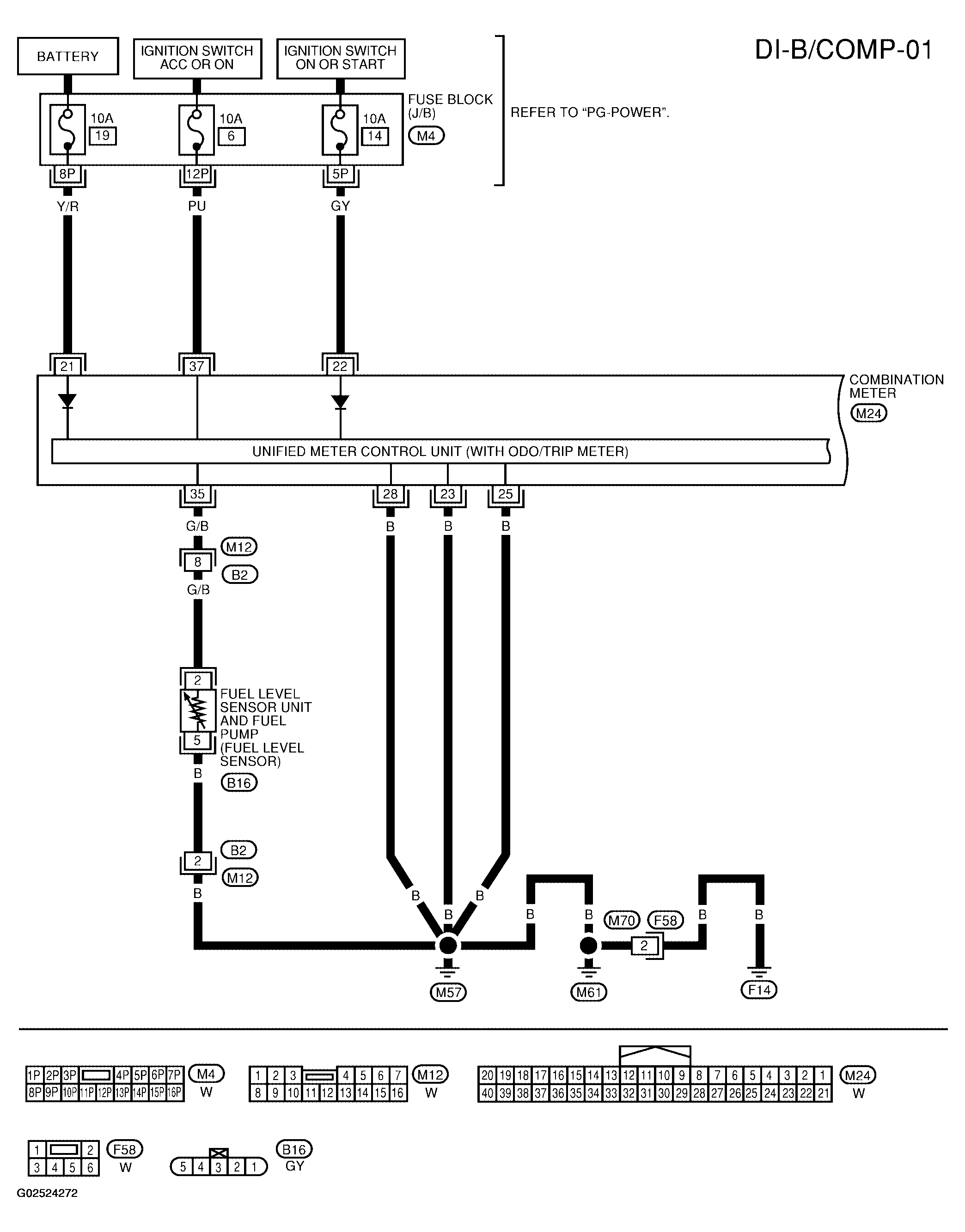

Fig 1: Wiring Diagram-B/COMP (DI-B/COMP-01)
G02524272Courtesy of NISSAN MOTOR CO., U.S.A.

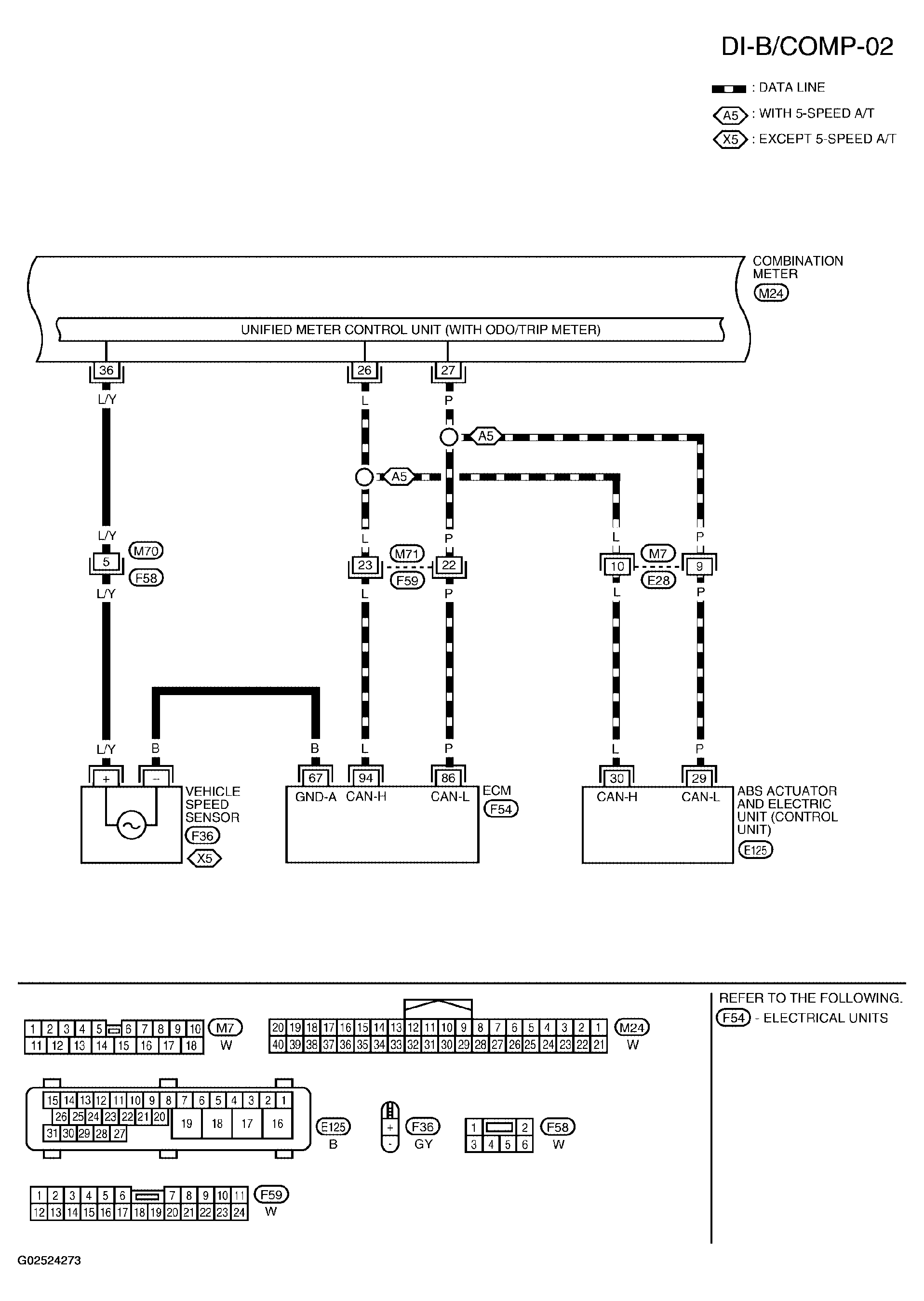

Fig 2: Wiring Diagram-B/COMP (DI-B/COMP-02)
G02524273Courtesy of NISSAN MOTOR CO., U.S.A.

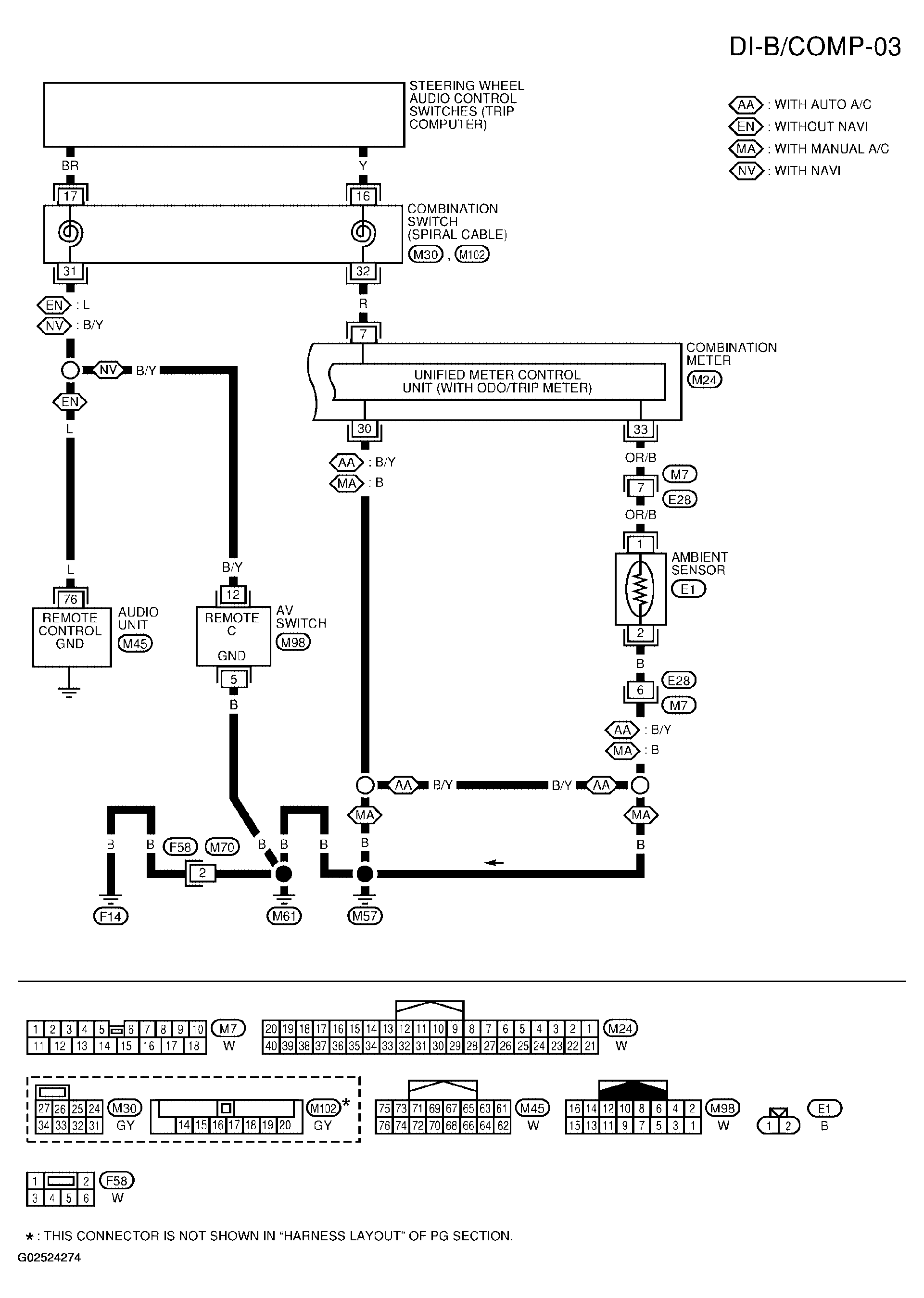

Fig 3: Wiring Diagram-B/COMP (DI-B/COMP-03)
G02524274Courtesy of NISSAN MOTOR CO., U.S.A.
