Wiring Diagram-TCS -

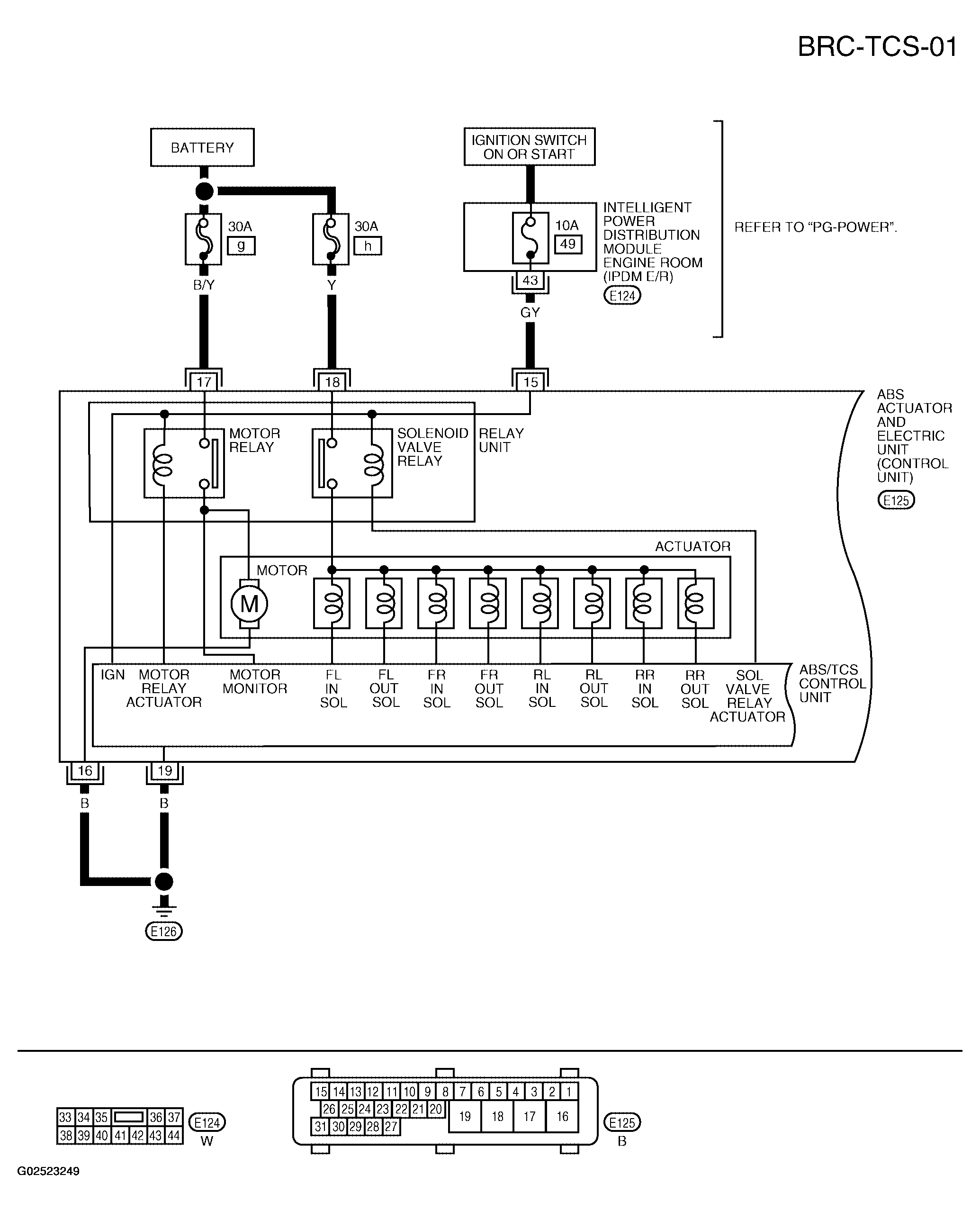

Fig 1: Wiring Diagram - BRC-TCS-01
G02523249Courtesy of NISSAN MOTOR CO., U.S.A.

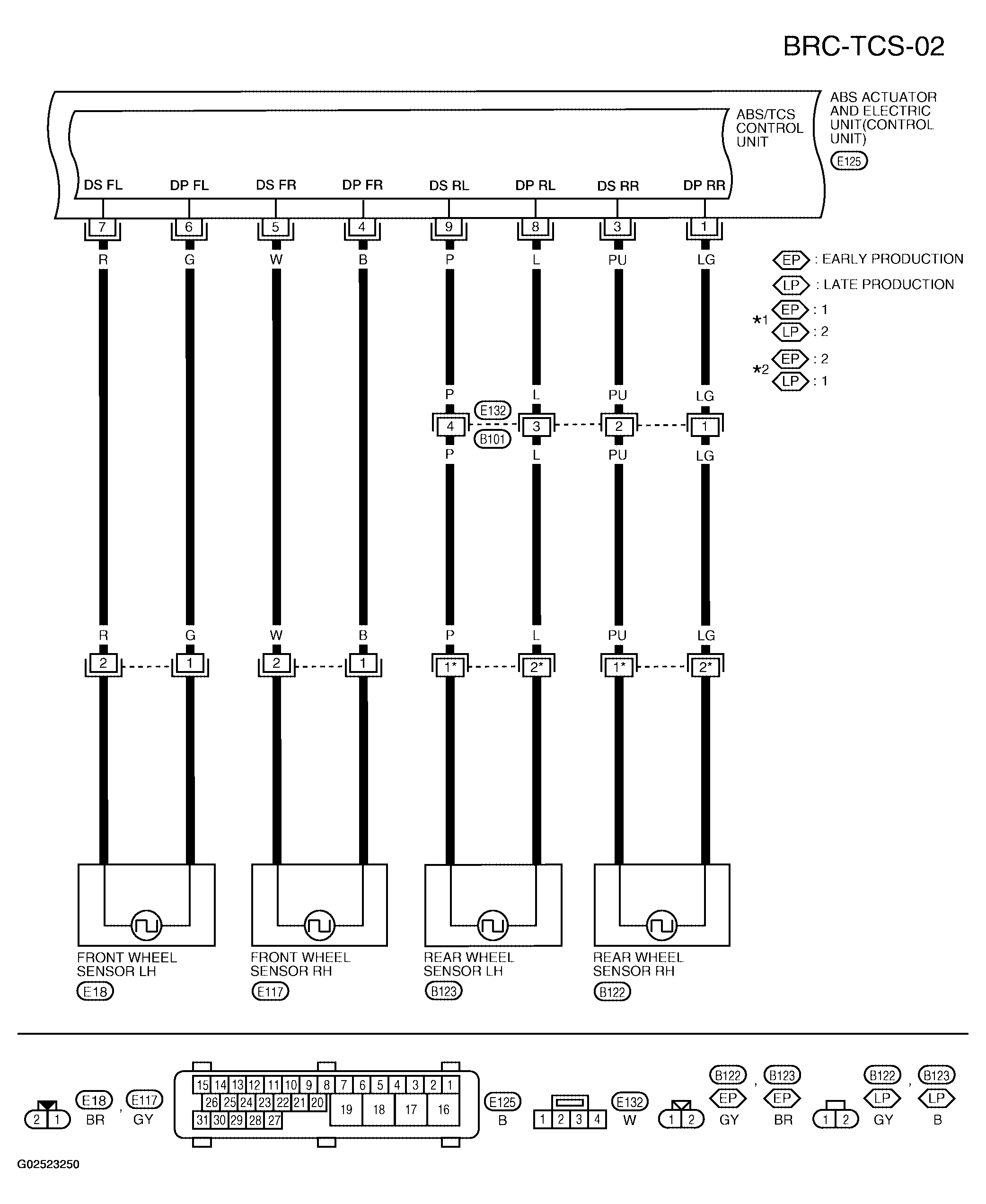

Fig 2: Wiring Diagram - BRC-TCS-02
G02523250Courtesy of NISSAN MOTOR CO., U.S.A.

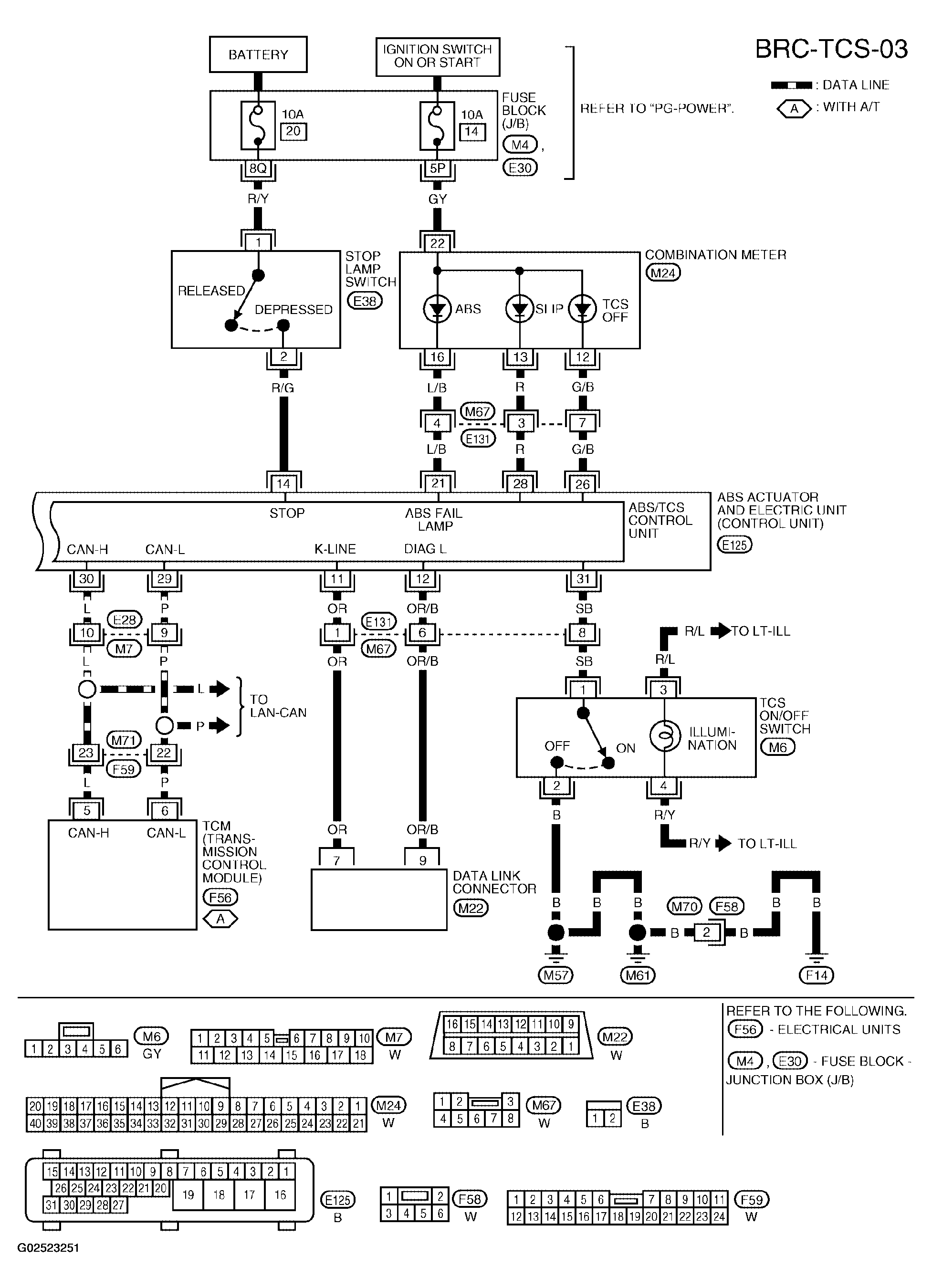

Fig 3: Wiring Diagram - BRC-TCS-03
G02523251Courtesy of NISSAN MOTOR CO., U.S.A.
