Abs Actuator Operation

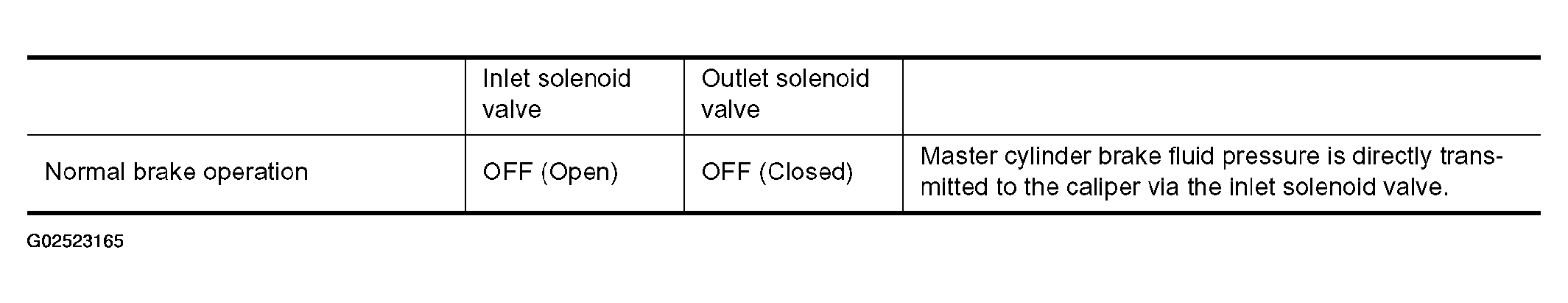

Fig 1: ABS Actuator Operation Table (1 Of 2)

G02523165

Courtesy of NISSAN MOTOR CO., U.S.A.

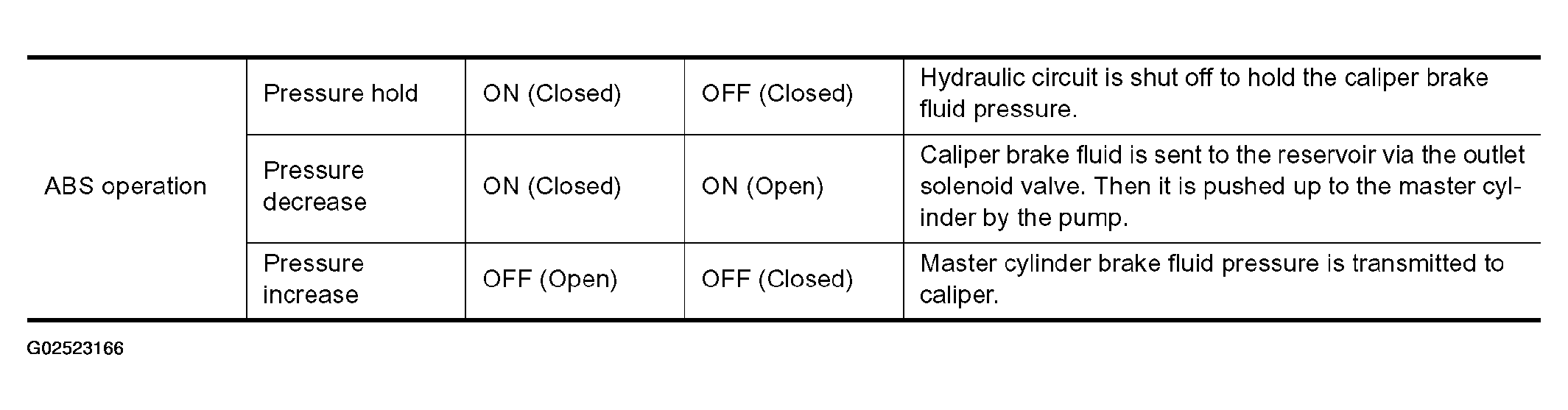

Fig 2: ABS Actuator Operation Table (2 Of 2)

G02523166

Courtesy of NISSAN MOTOR CO., U.S.A.
