Terminals And Reference Value For BCM

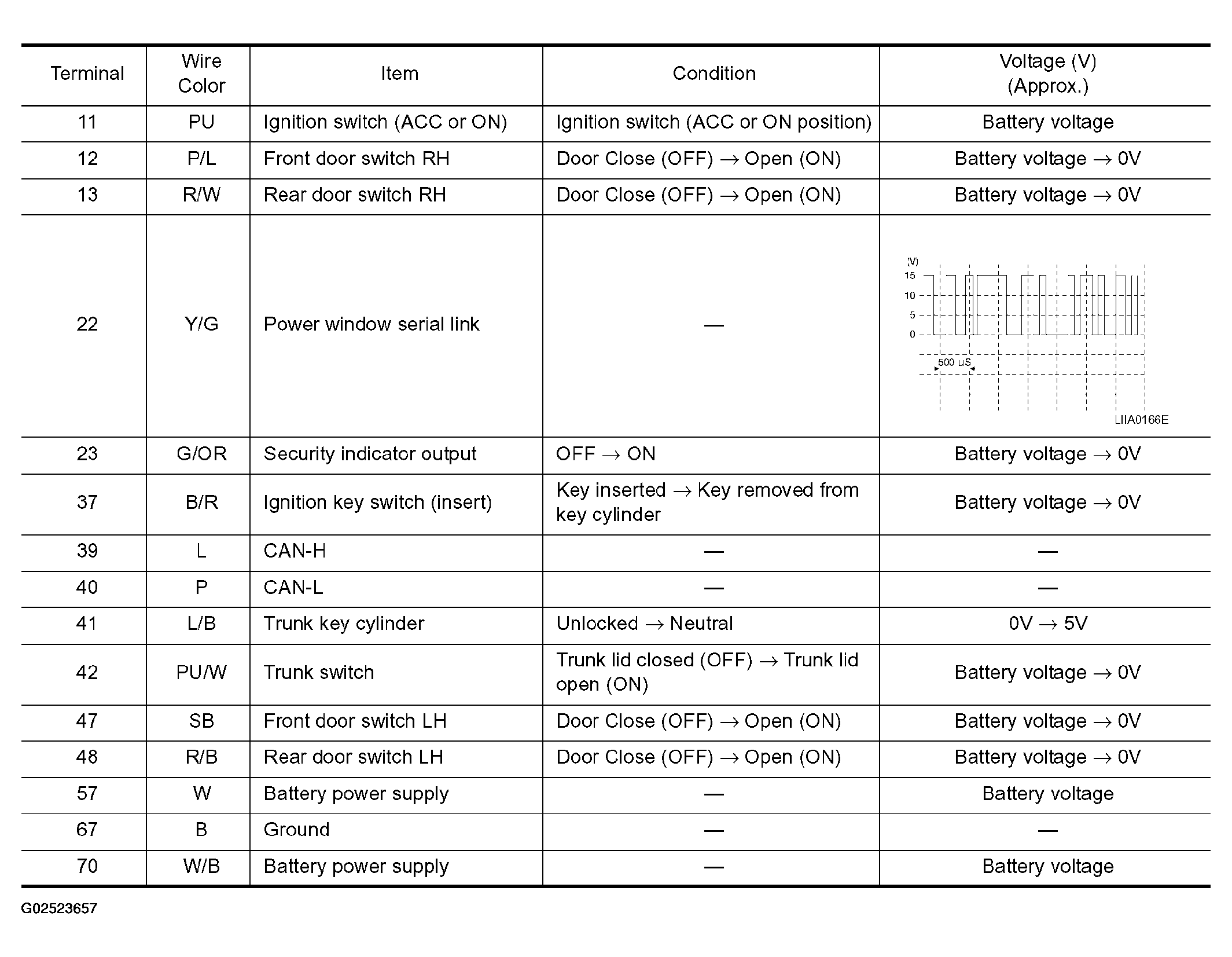

Fig 1: Terminals And Reference Value Chart For BCM

G02523657

Courtesy of NISSAN MOTOR CO., U.S.A.
