Terminals and Reference Value for NAVI Control Unit

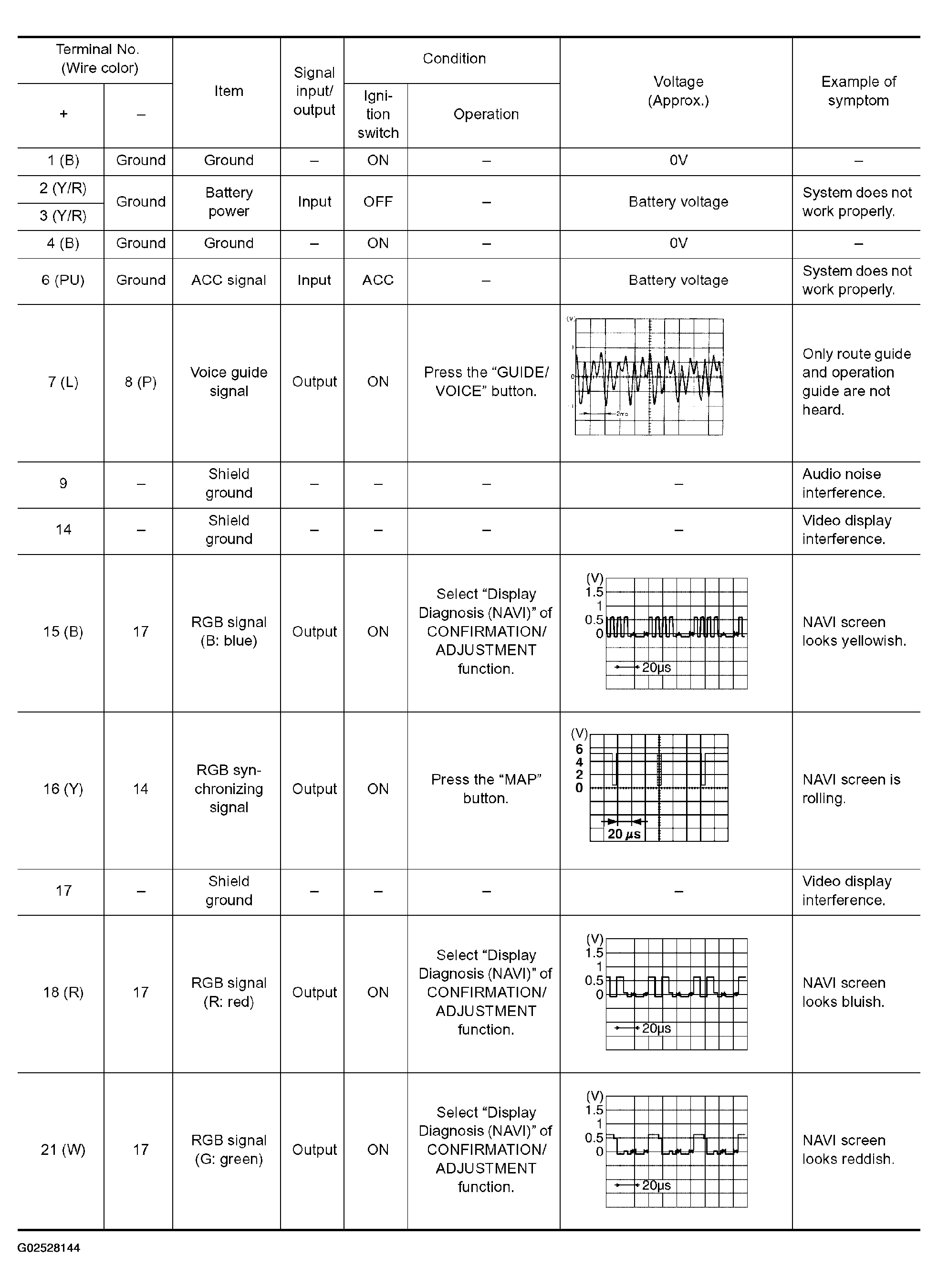

Fig 1: Terminals And Navi Control Unit Reference Value Chart (1 Of 2)
G02528144Courtesy of NISSAN MOTOR CO., U.S.A.

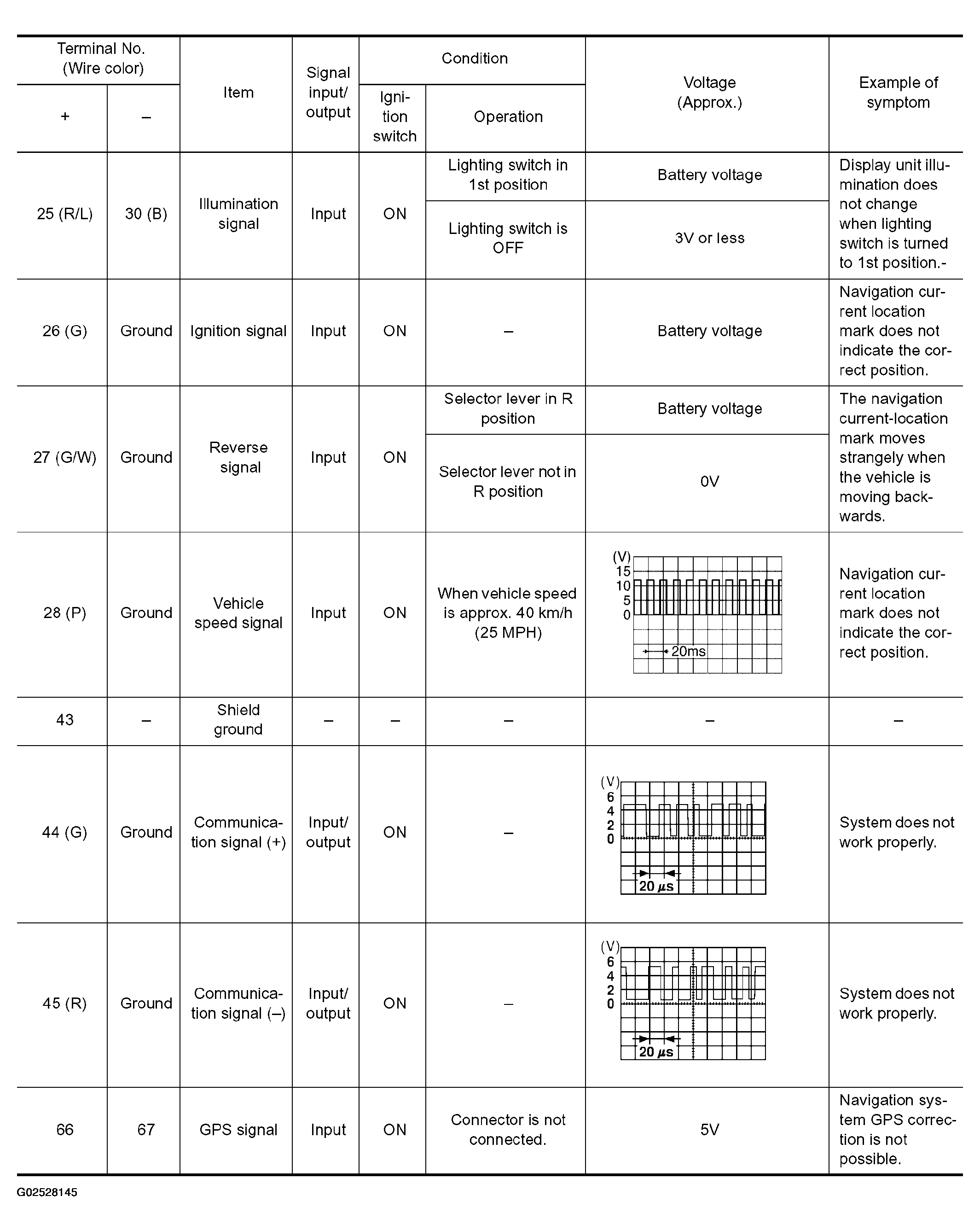

Fig 2: Terminals And Navi Control Unit Reference Value Chart (2 Of 2)
G02528145Courtesy of NISSAN MOTOR CO., U.S.A.
