Actuator And Electric Unit (Assembly)
>>
Removal and Installation
Removal and Installation

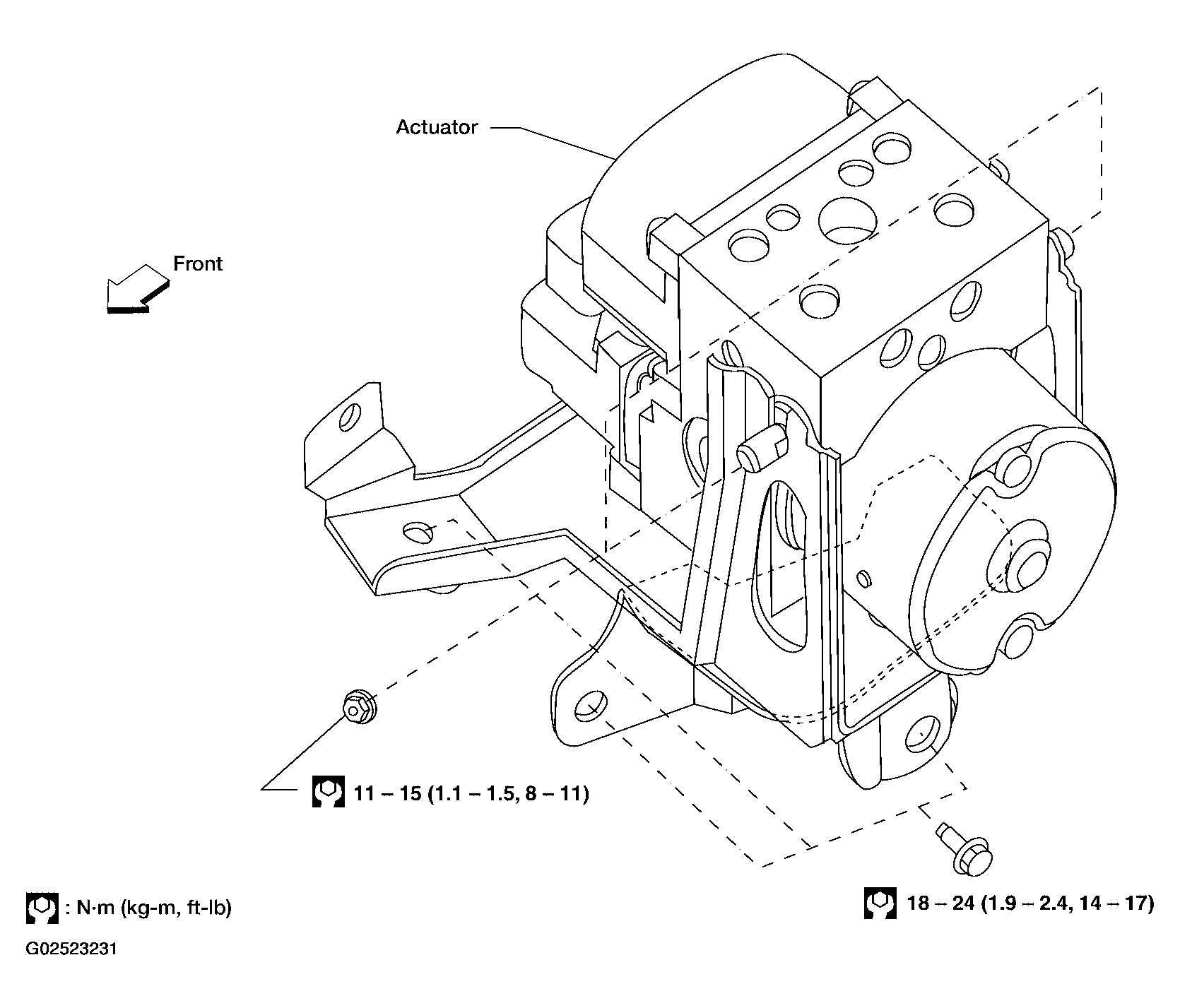

Fig 1: Identifying Actuator And Electric Unit (Assembly)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
