System Drawing

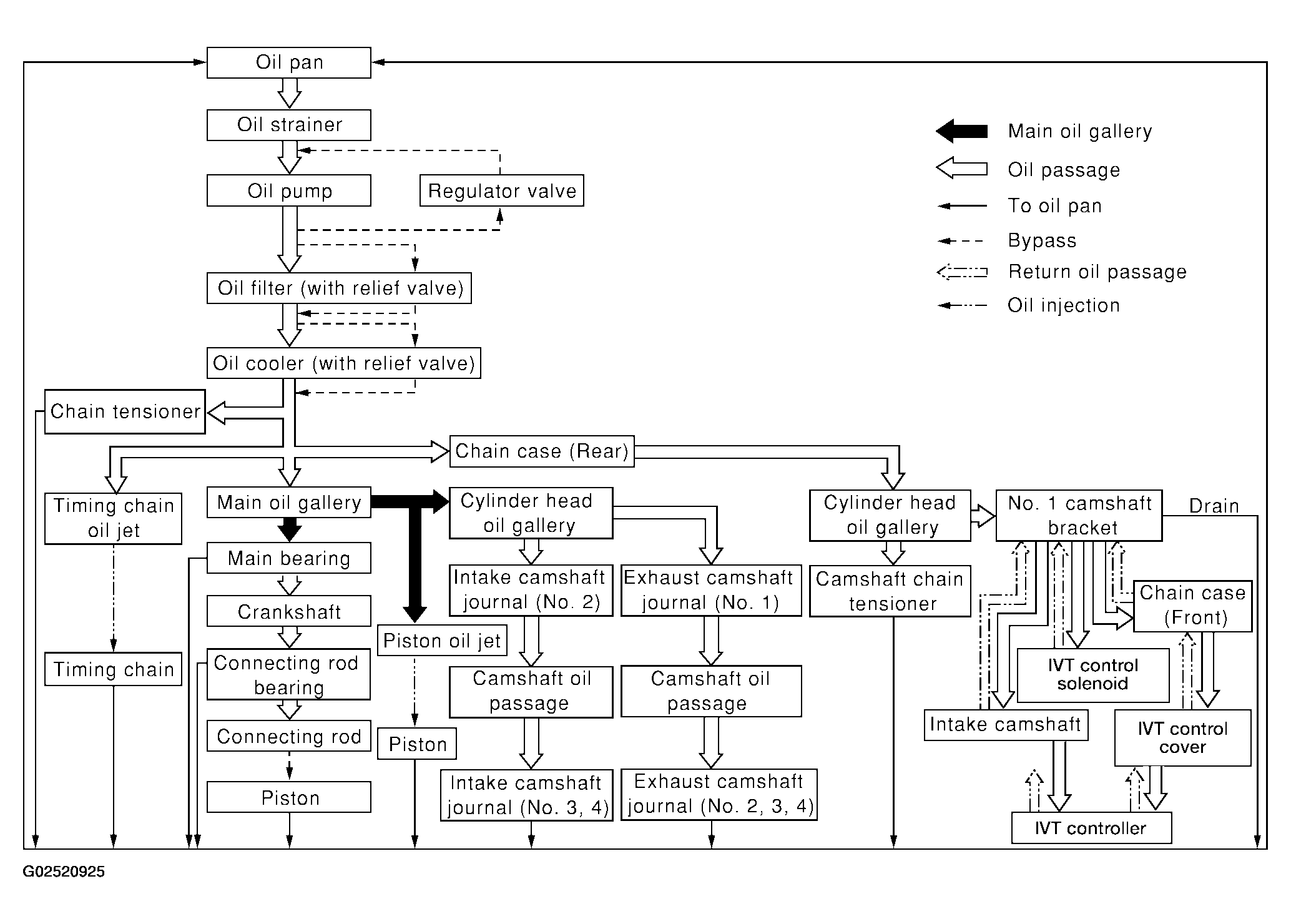

Fig 1: Lubrication System Flow Chart

G02520925

Courtesy of NISSAN MOTOR CO., U.S.A.
