Engine Control System - Qr25DE
>>
Trouble Diagnosis
>>
CONSULT-II Function (ENGINE)
>>
Data Monitor Mode
>>
Monitored Item
Monitored Item

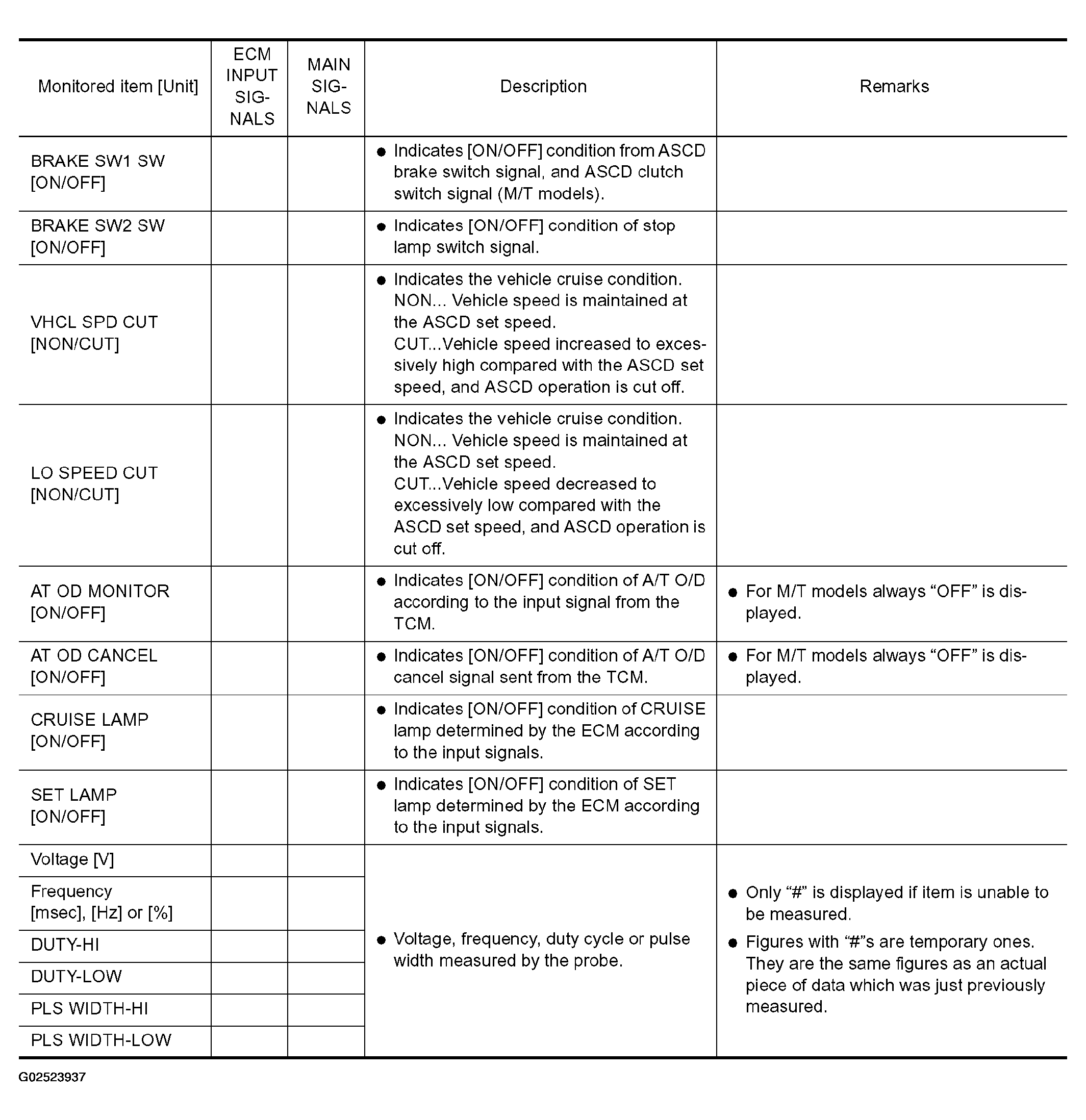

Fig 1: Data Monitor - Monitored Item (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

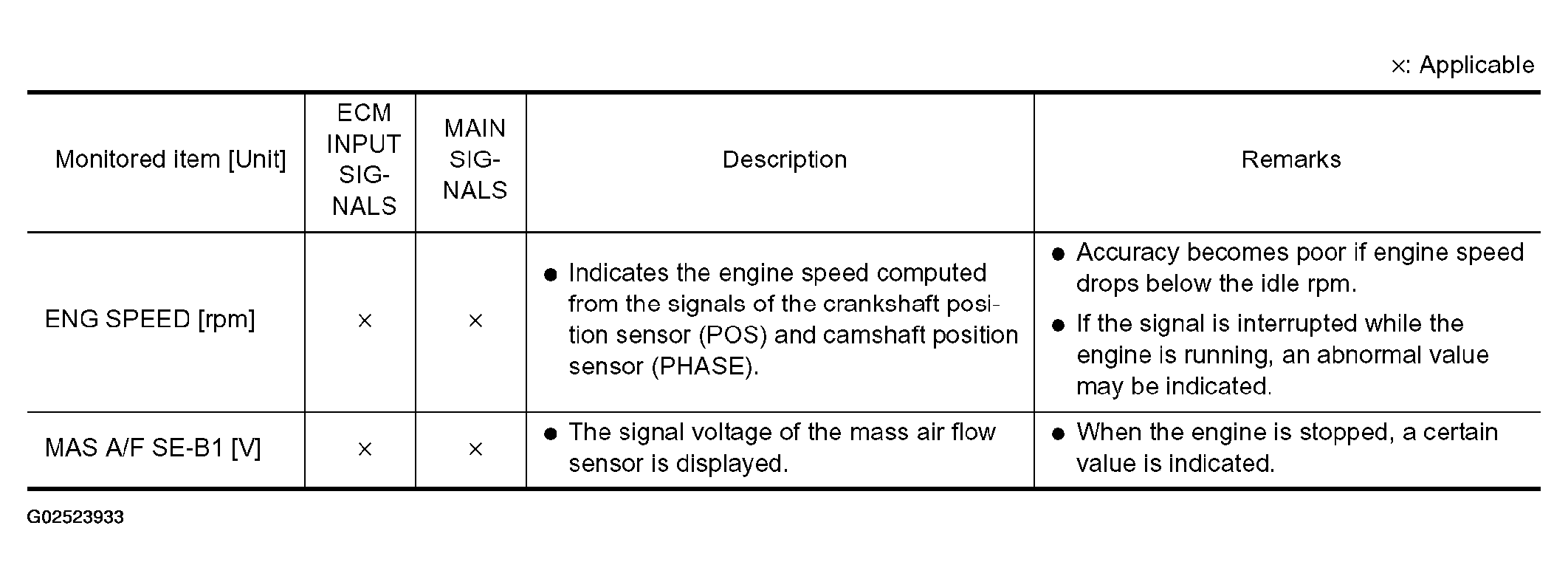

Fig 2: Data Monitor - Monitored Item (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

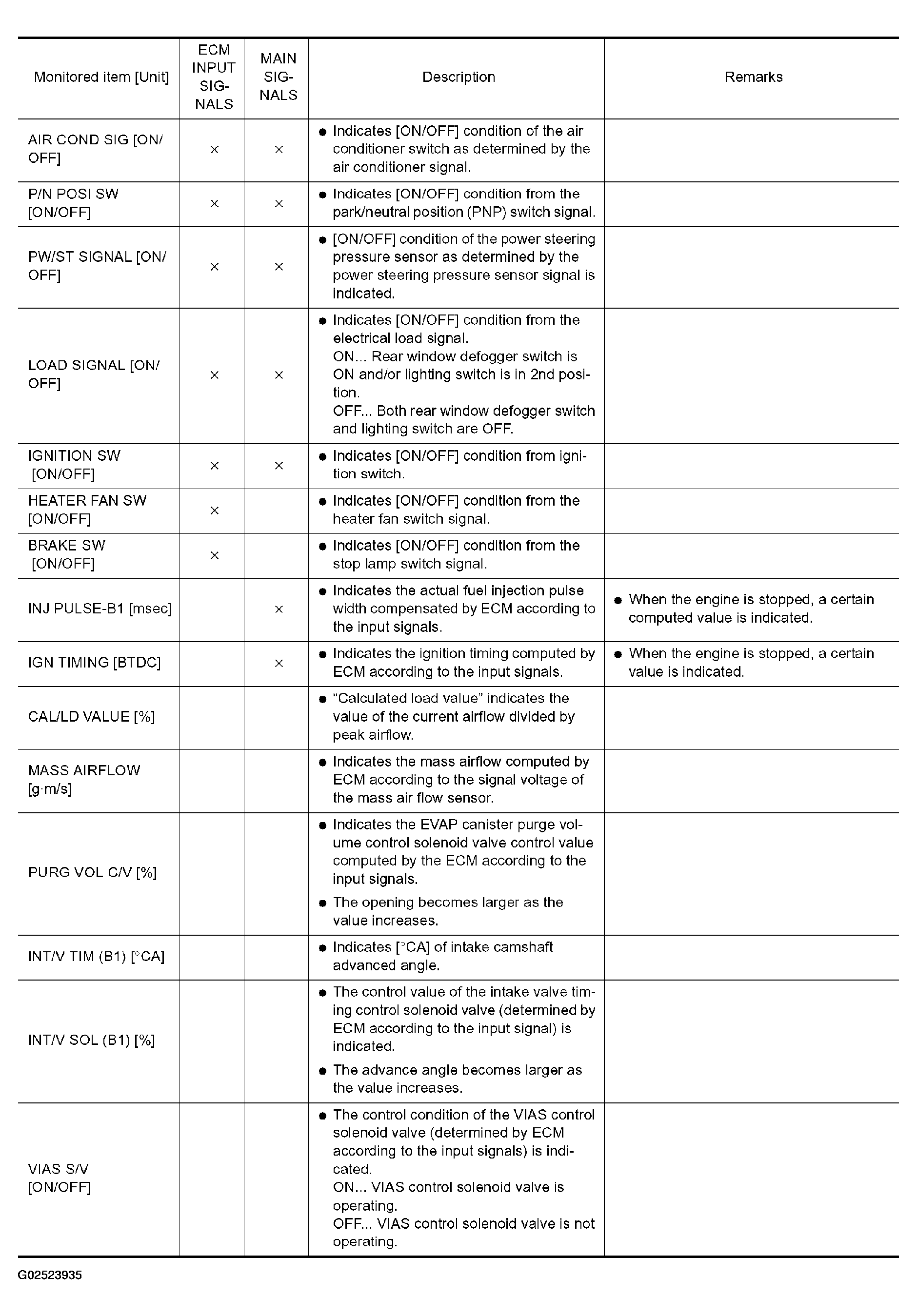

Fig 3: Data Monitor - Monitored Item (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

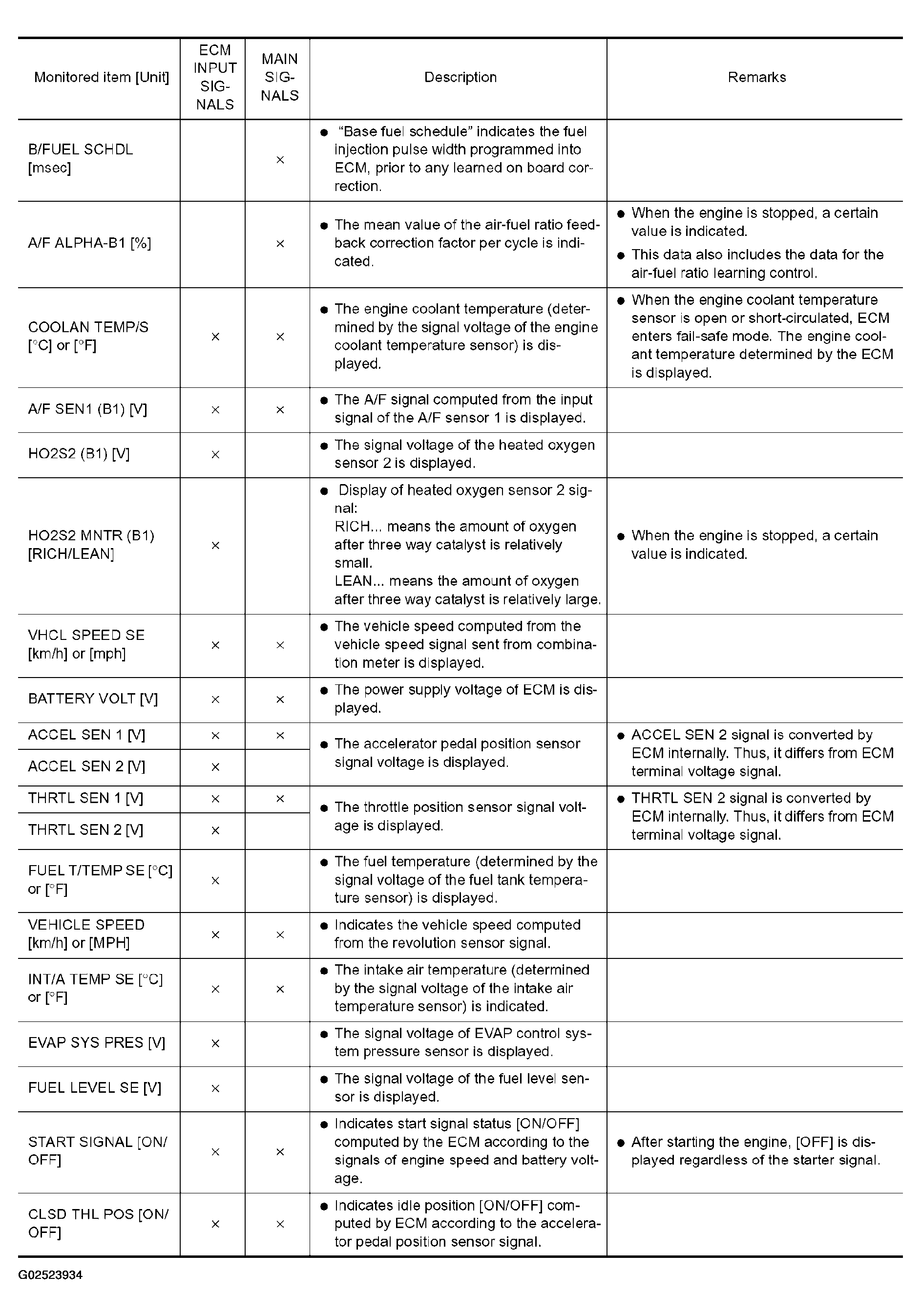

Fig 4: Data Monitor - Monitored Item (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

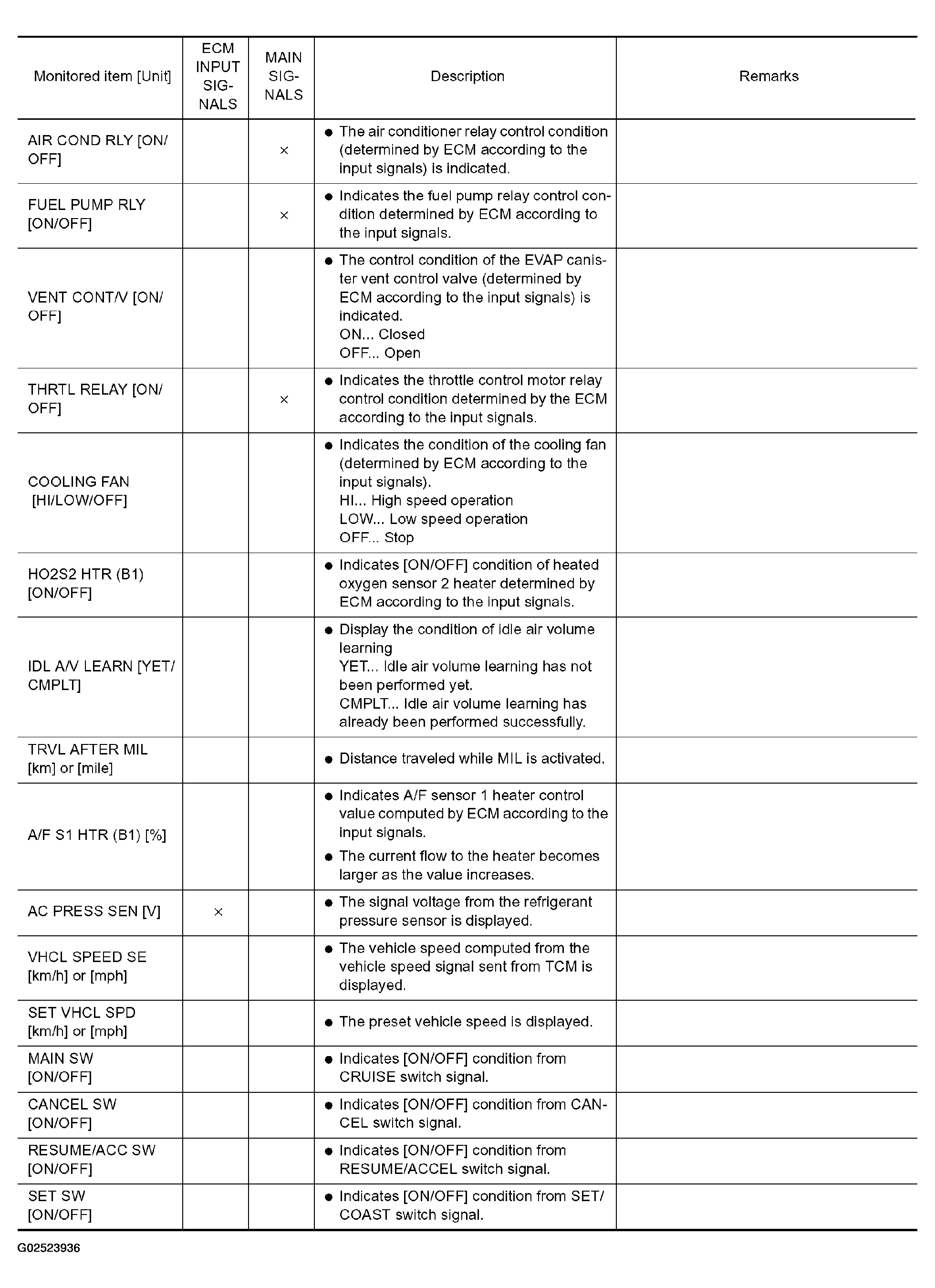

Fig 5: Data Monitor - Monitored Item (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
