ASCD Clutch Switch (For M/T Models)

Check continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.

CONDITION AND CONTINUITY REFERENCE

Condition	Continuity
When clutch pedal is fully released.	Should exist.
When clutch pedal is depressed.	Should not exist.

If NG, adjust ASCD clutch switch installation, refer to "CLUTCH PEDAL ", and perform step 3 again.

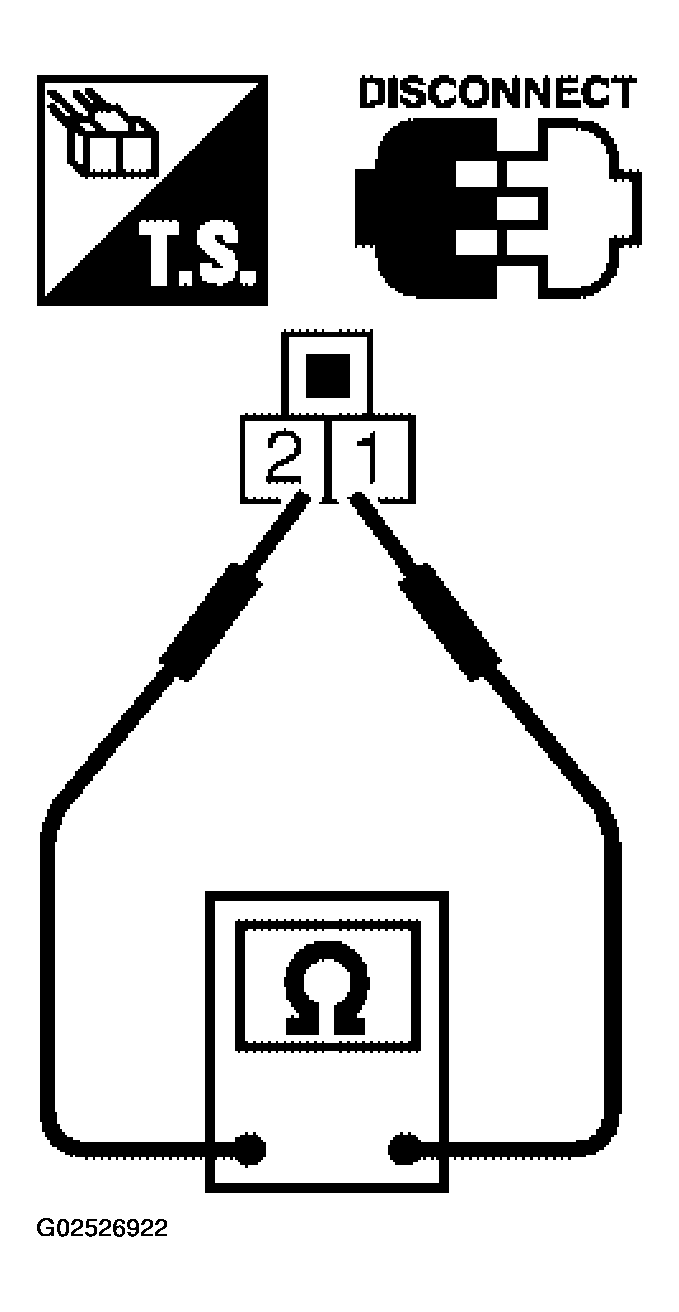

Fig 1: Checking Continuity Between ASCD Brake Switch Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.
