Judgement Of Line Pressure Test

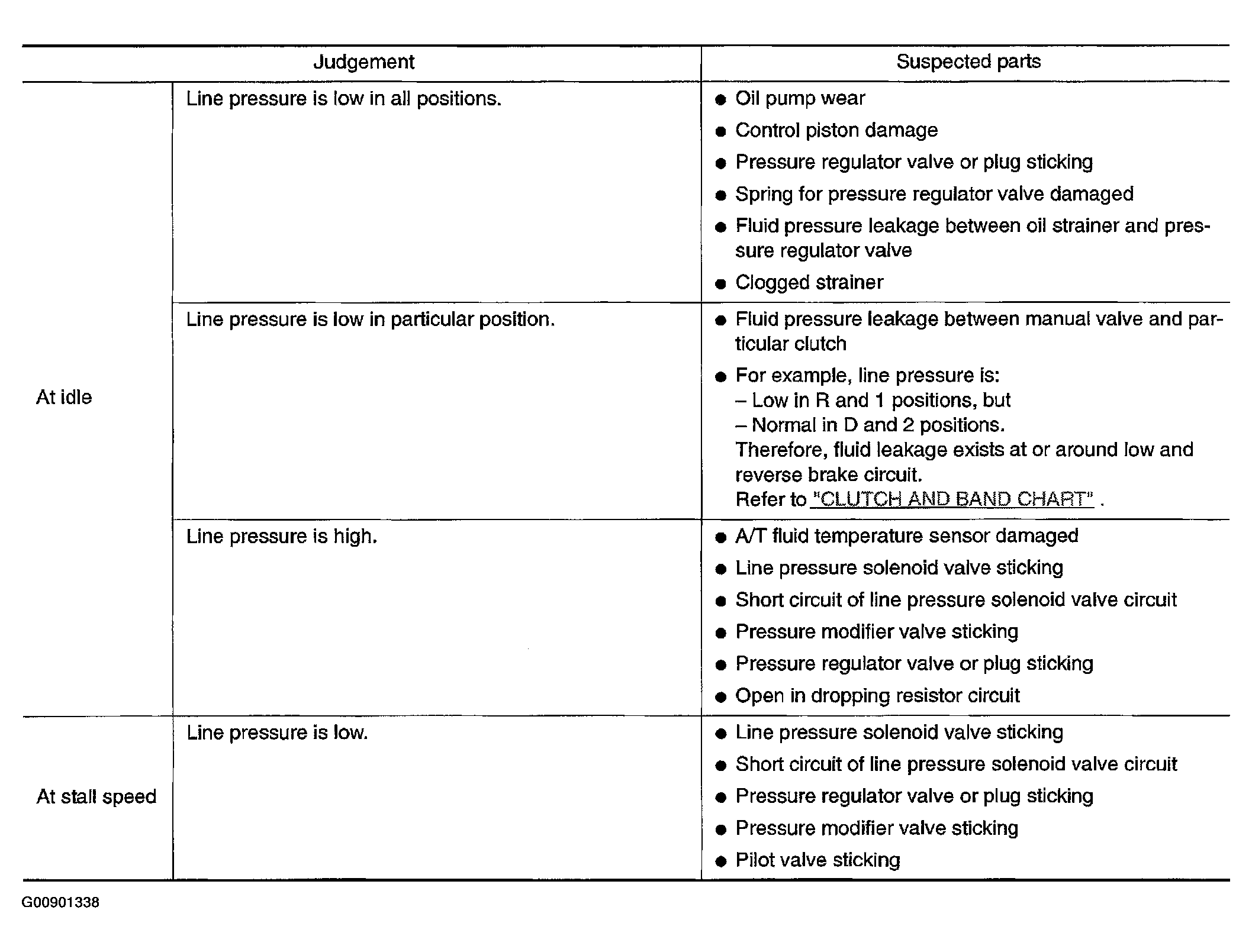

Fig 1: Line Pressure Test Judgement Chart

G00901338

Courtesy of NISSAN MOTOR CO., U.S.A.
