Fluid Condition Check

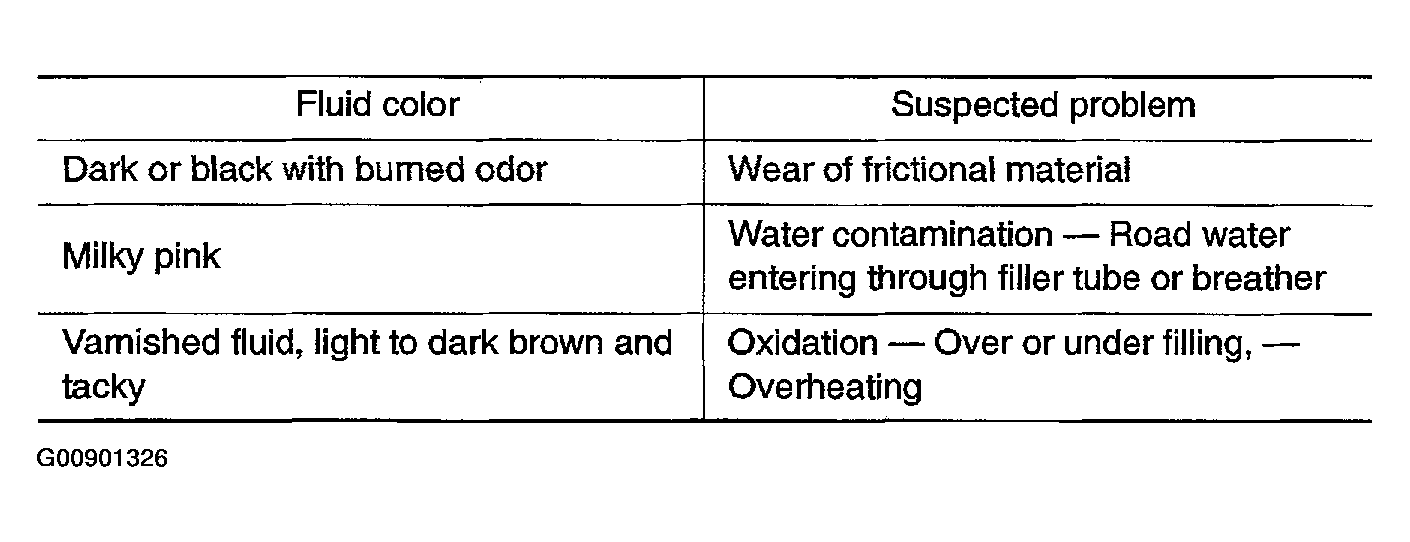

Fig 1: Fluid Condition Inspection Chart

G00901326

Courtesy of NISSAN MOTOR CO., U.S.A.
