Output Shaft Adjusting Shims

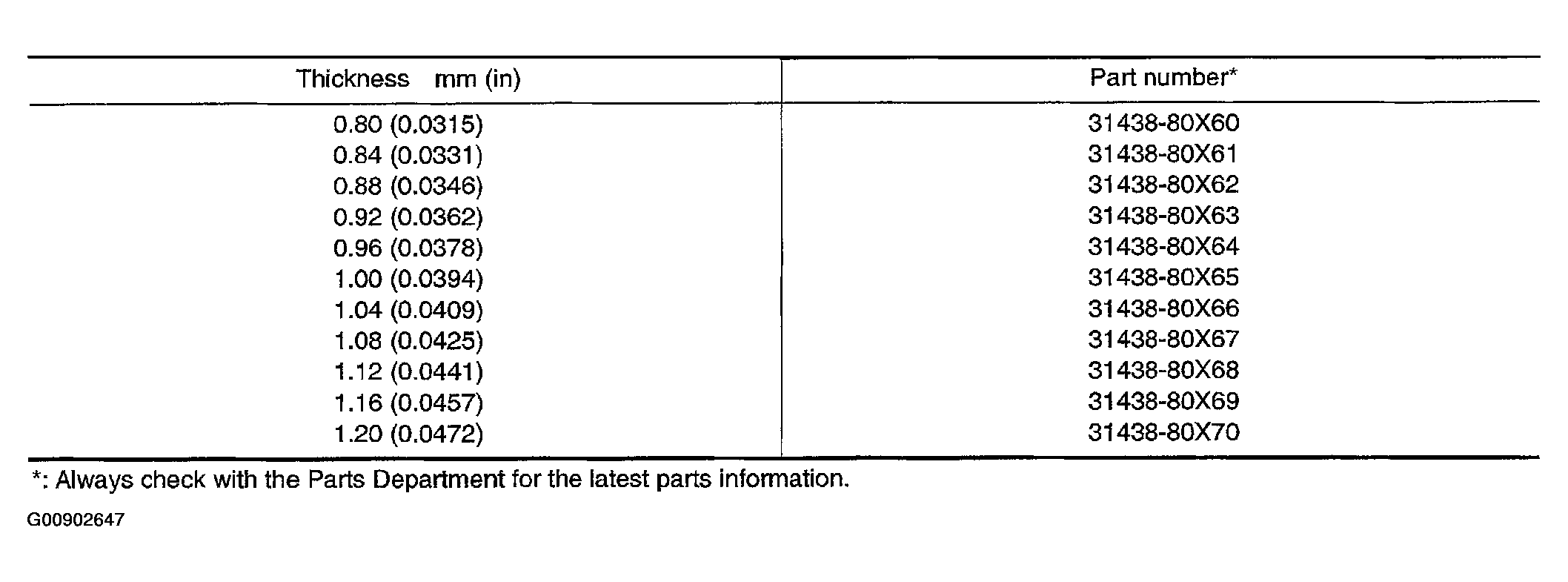

Fig 1: Output Shaft Adjusting Shims Specifications

G00902647

Courtesy of NISSAN MOTOR CO., U.S.A.
