CONSULT-II Setting Procedure

Turn ignition switch OFF.
Connect CONSULT-II to data link connector, which is located in left side dash panel.

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START".

Fig 2: Consult II Display (1 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T".

Fig 3: Consult II Display (2 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DTC WORK SUPPORT".

Fig 4: Consult II Display (3 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu (1ST, 2ND, etc.).

Fig 5: Consult II Display (4 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.

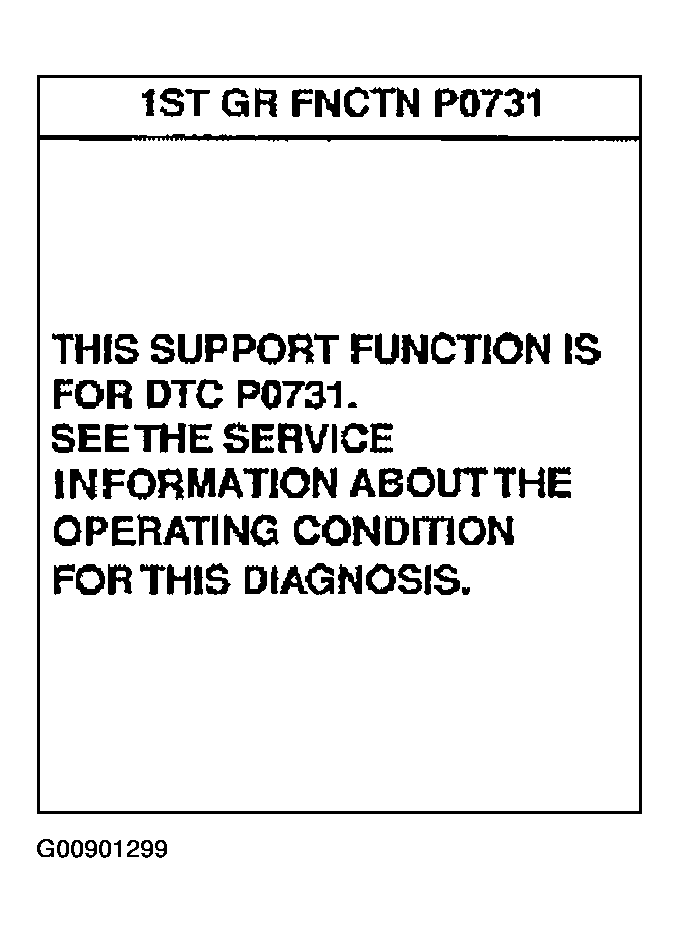

Touch "START".

Fig 6: Consult II Display (5 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC CONFIRMATION PROCEDURE " in "TROUBLE DIAGNOSIS FOR DTC".

Fig 7: Consult II Display (6 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.

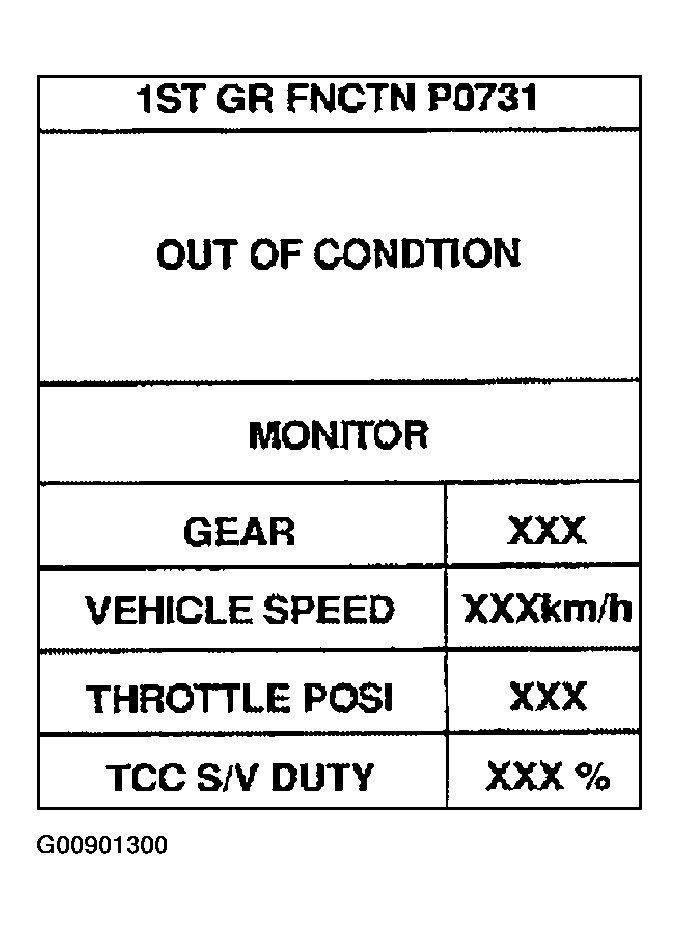

- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING" .
Fig 8: Consult II Display (7 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

Fig 9: Consult II Display (8 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Consult II Display (9 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.

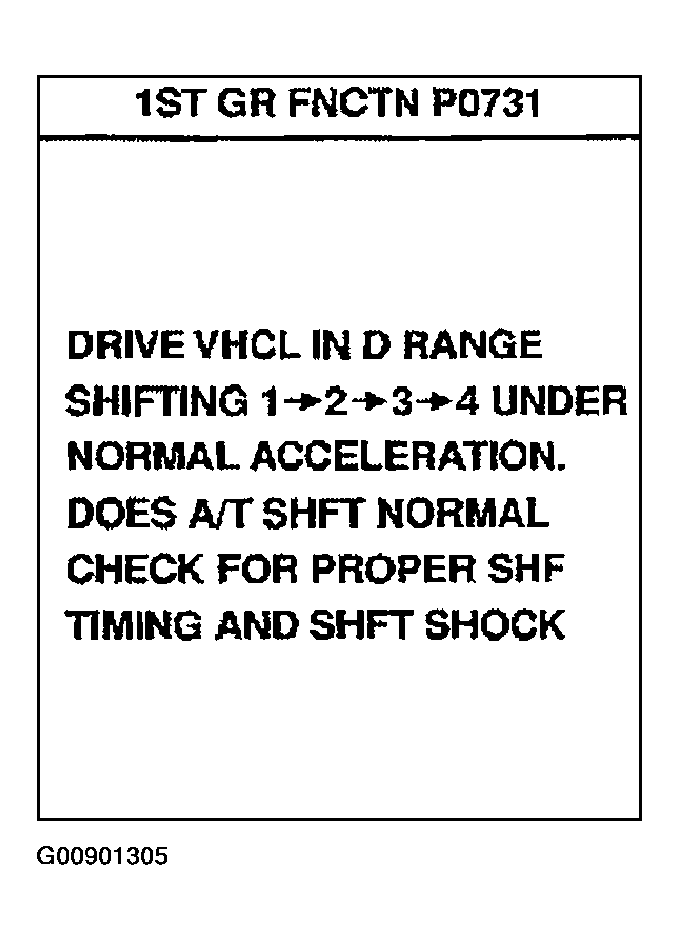

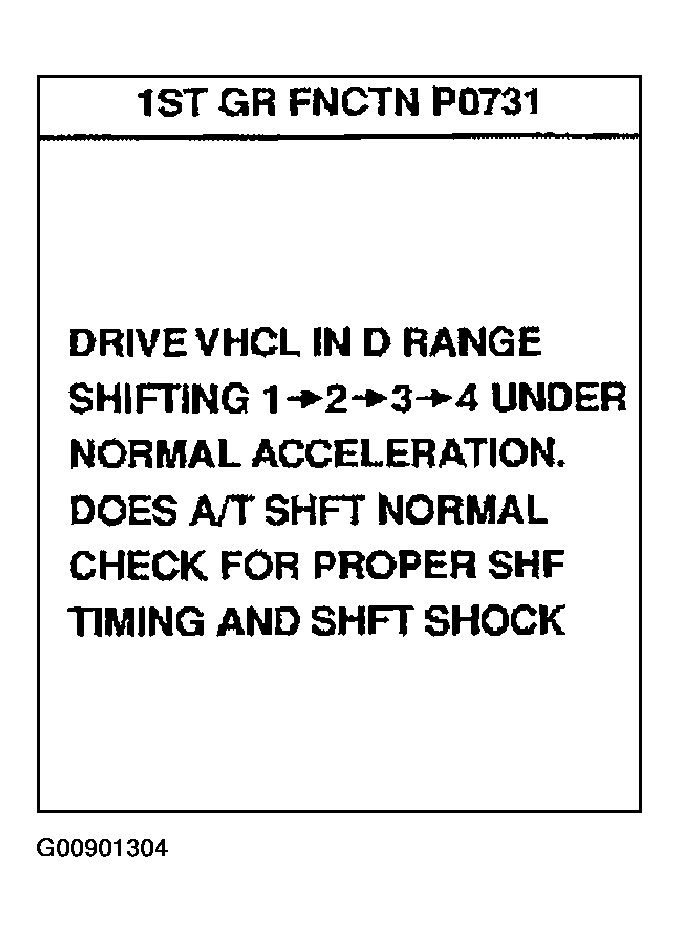

Perform test drive to check gear shift feeling in accordance with instructions displayed.

Fig 11: Consult II Display (10 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "YES" or "NO".

Fig 12: Consult II Display (11 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.
CONSULT-II procedure ended.

Fig 13: Consult II Display (12 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Consult II Display (13 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.

If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".
