Clutch And Band Chart

WARNING: This page is about a different variant/trim than selected.

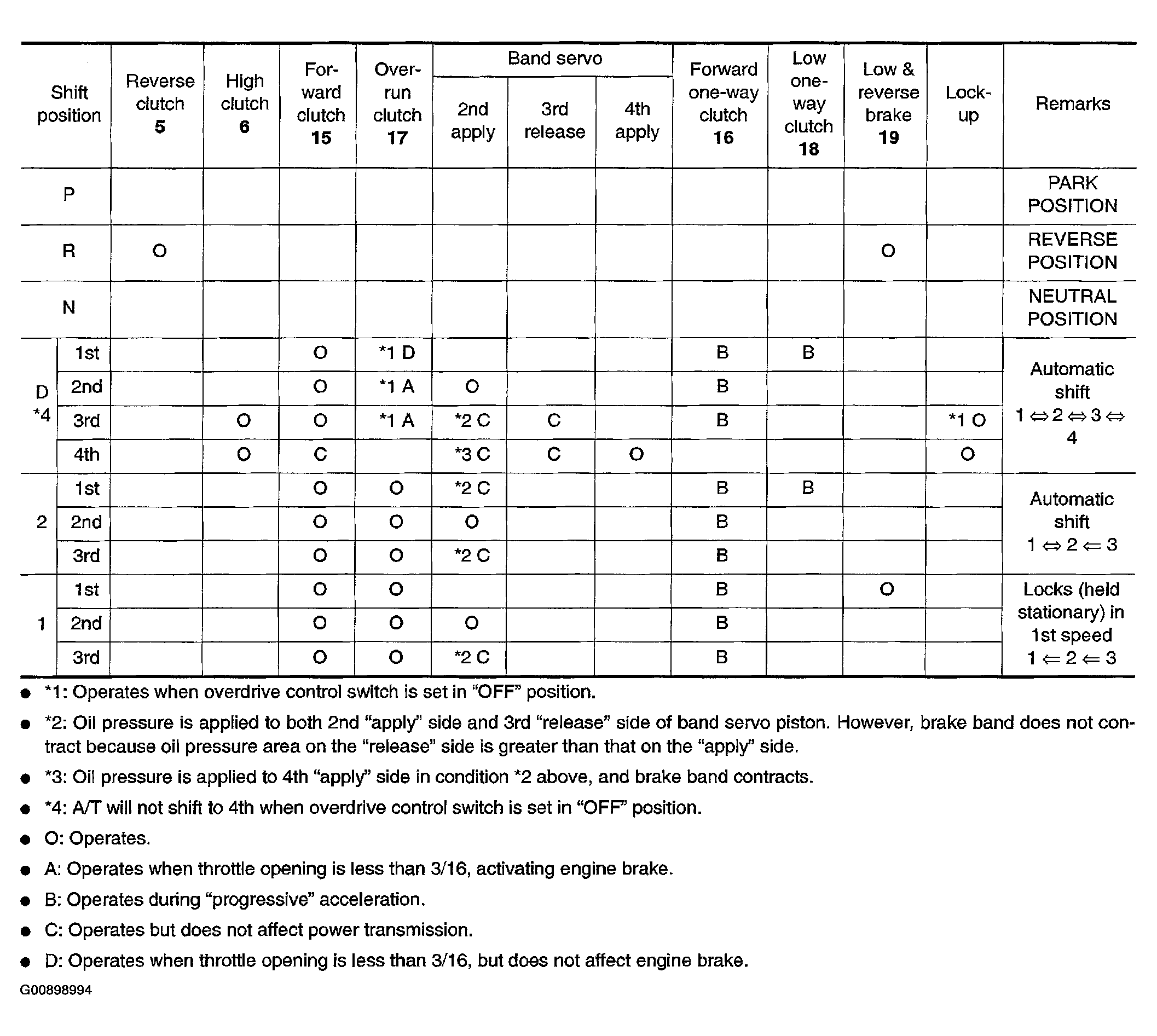

Fig 1: Clutch And Band Chart

G00898994

Courtesy of NISSAN MOTOR CO., U.S.A.
