Section 9 (Automatic Transaxle - Re4F03B)
>>
On Board Diagnostic System Description
>>
Consult-II
>>
DTC Work Support Mode
DTC Work Support Mode
WARNING:
This page is about a different variant/trim than selected.

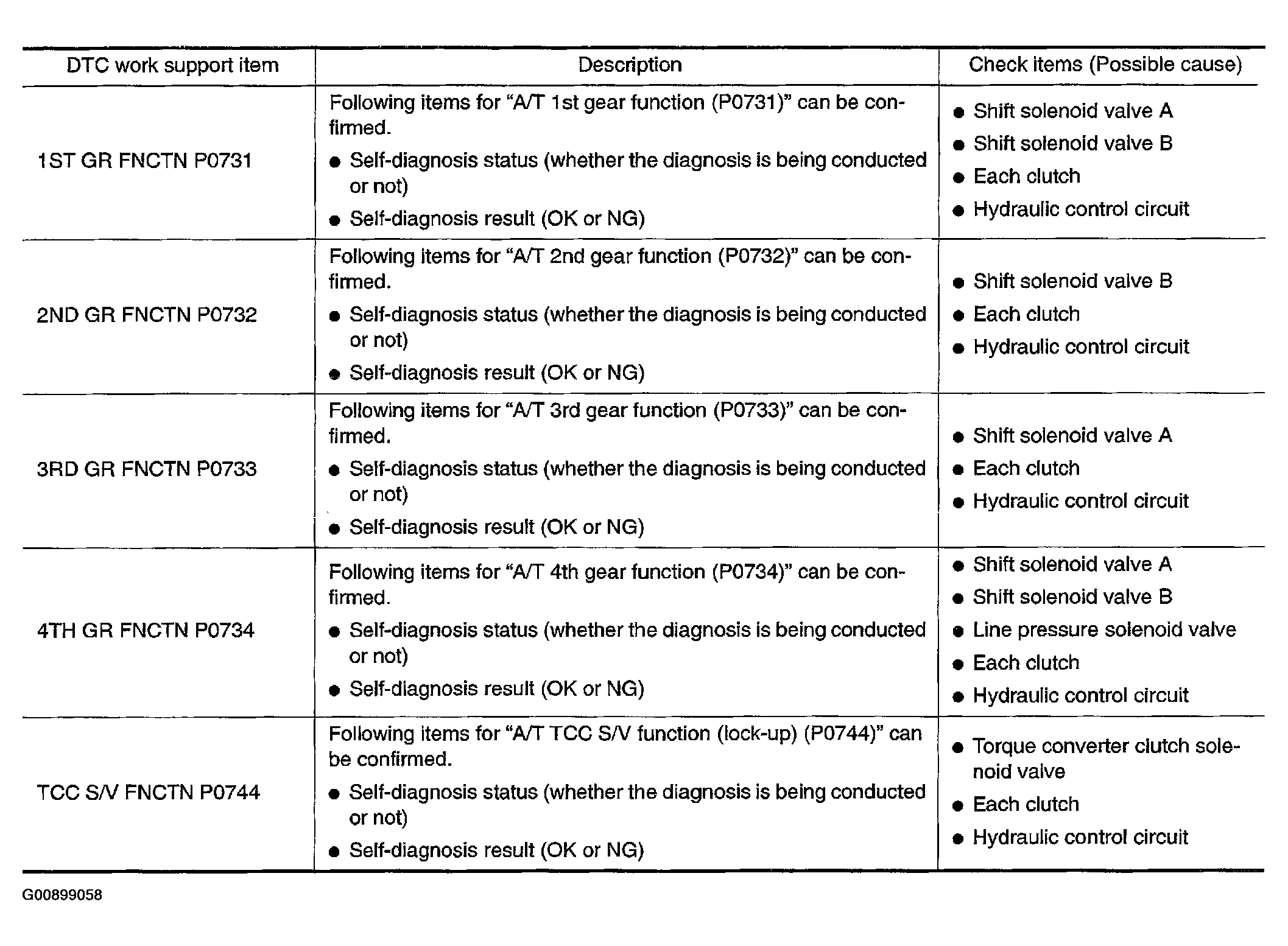

Fig 1: DTC Work Support Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
