DTC P0720: Vehicle Speed Sensor A/T (Revolution Sensor): Description: Notes

WARNING: This page is about a different variant/trim than selected.

The revolution sensor detects the revolution of the idler gear parking pawl lock gear and emits a pulse signal. The pulse signal is sent to the TCM which converts it into vehicle speed

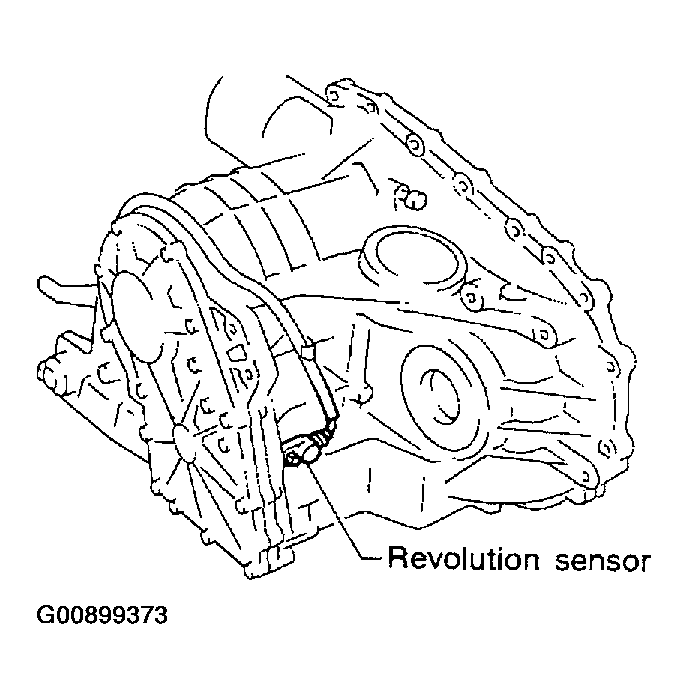

Fig 1: Identifying Revolution Sensor
G00899373Courtesy of NISSAN MOTOR CO., U.S.A.
