Oil Pump: Components

WARNING: This page is about a different variant/trim than selected.

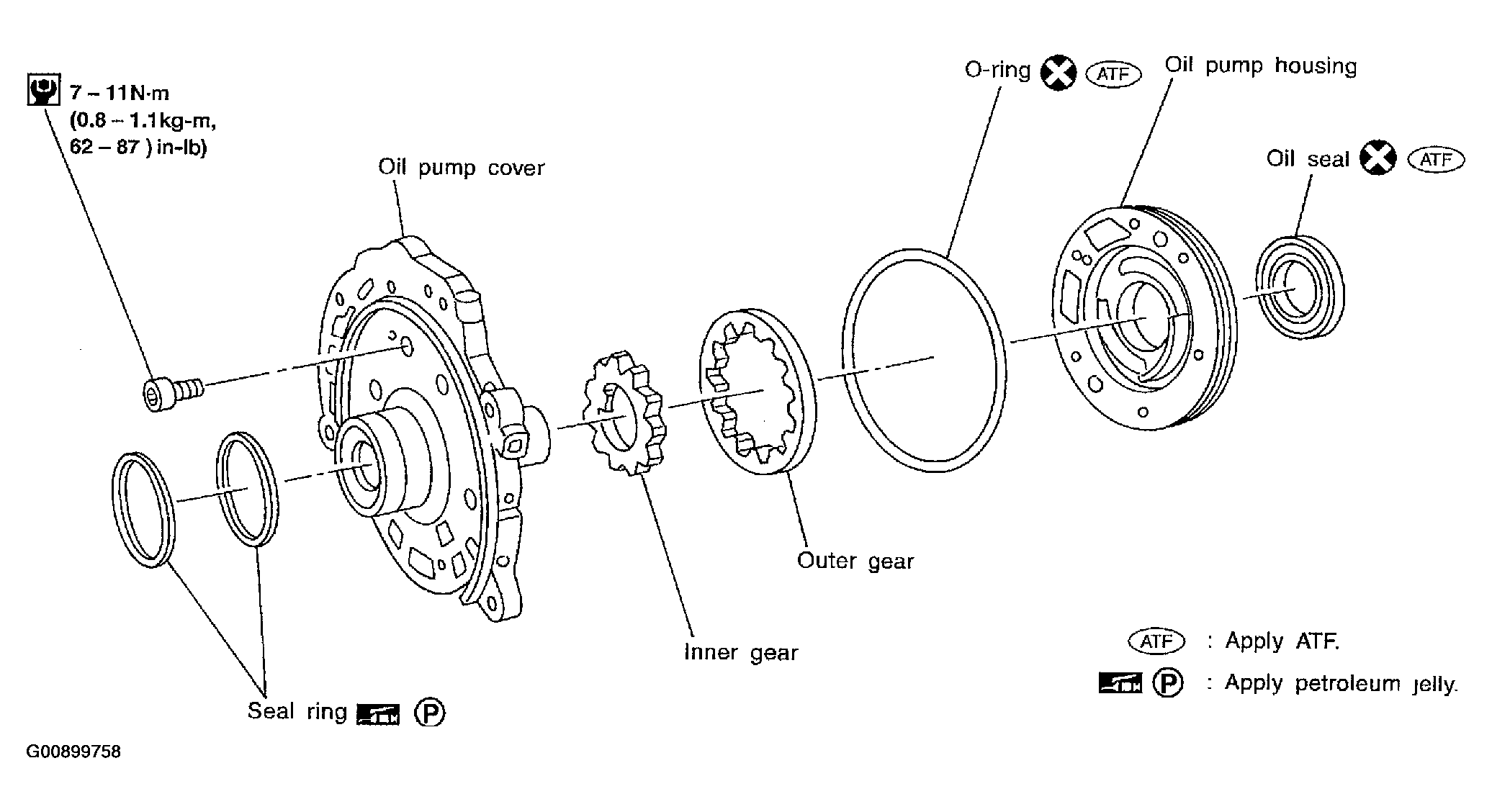

Fig 1: Identifying Oil Pump Components And Tightening Torques

G00899758

Courtesy of NISSAN MOTOR CO., U.S.A.
