Control Valve Assembly: Components

WARNING: This page is about a different variant/trim than selected.

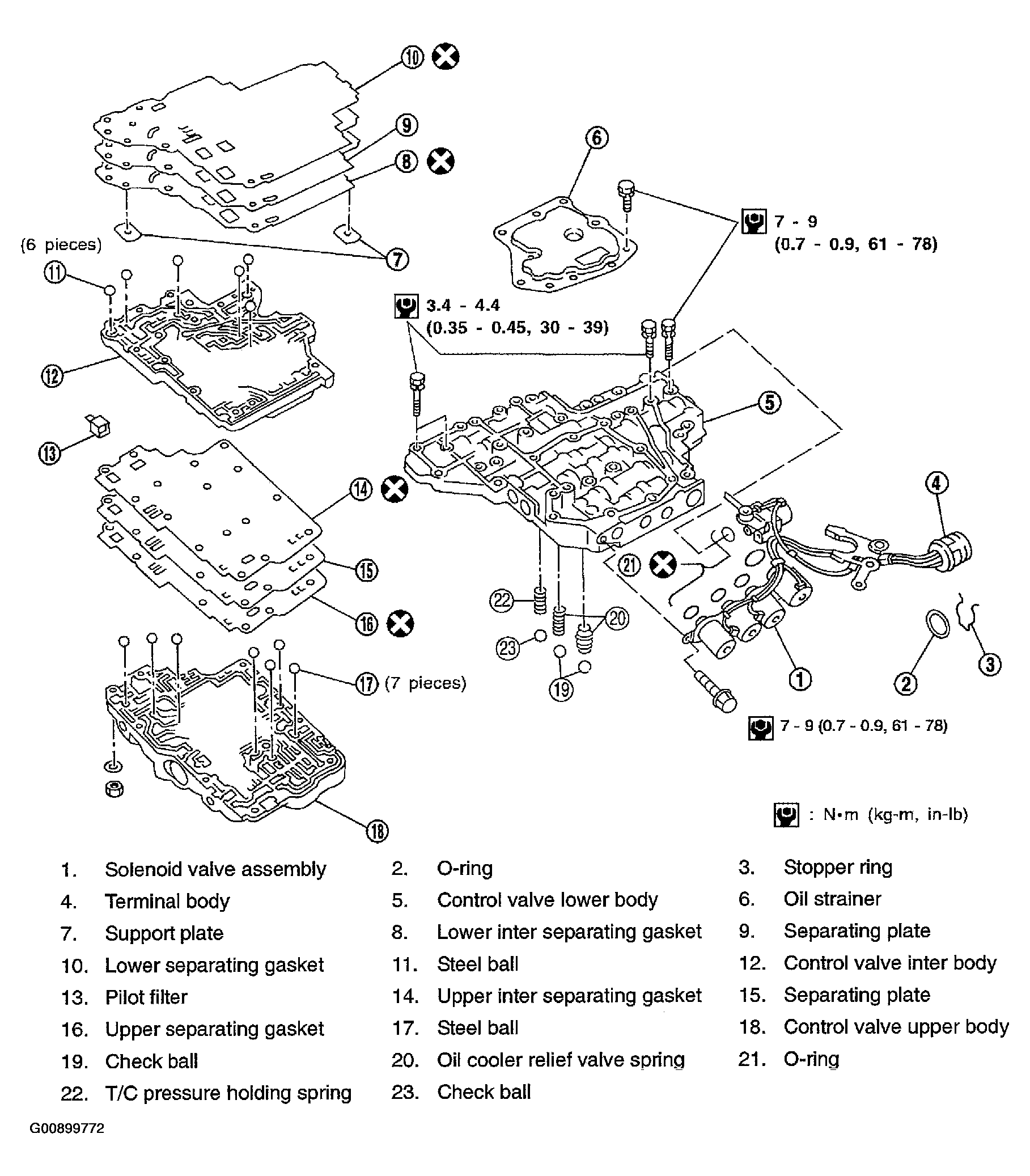

Fig 1: Identifying Control Valve Assembly Components And Tightening Torques
G00899772Courtesy of NISSAN MOTOR CO., U.S.A.
