DTC Batt/Fluid Temp Sen (A/T Fluid Temp Sensor Circuit And TCM Power Source): Assembly

1. Install upper, inter and lower body.
   Fig 1: Installing Upper, Inter And Lower Body

   Courtesy of NISSAN MOTOR CO., U.S.A.

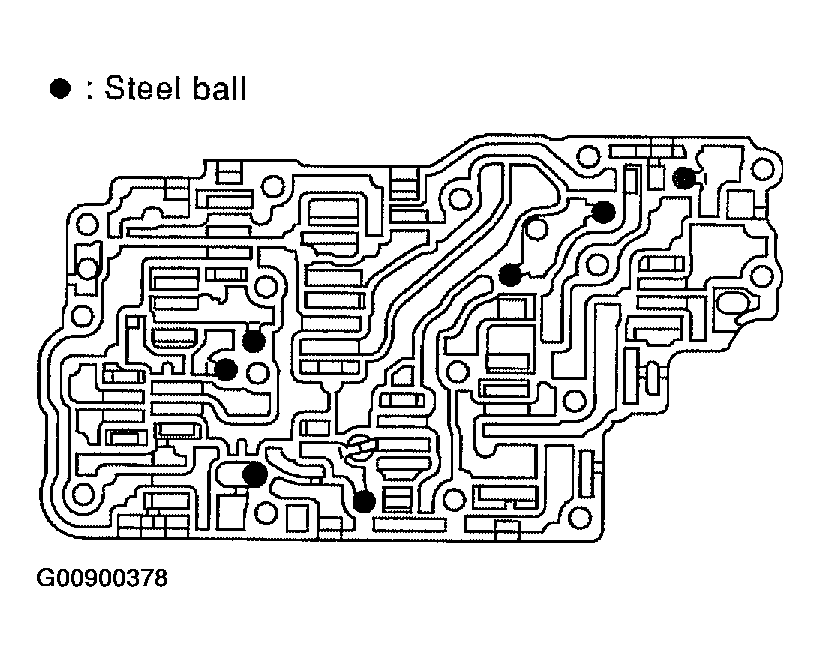

   1. Place oil circuit of upper body face up. Install steel balls in their proper positions.
   2. Install upper separating gasket, upper inter separating gasket and upper separating plate in order shown in illustration.
      Fig 2: Installing Upper Separating Gasket, Upper Inter Separating Gasket And Upper Separating Plate

      Courtesy of NISSAN MOTOR CO., U.S.A.
      • Always use new gaskets.

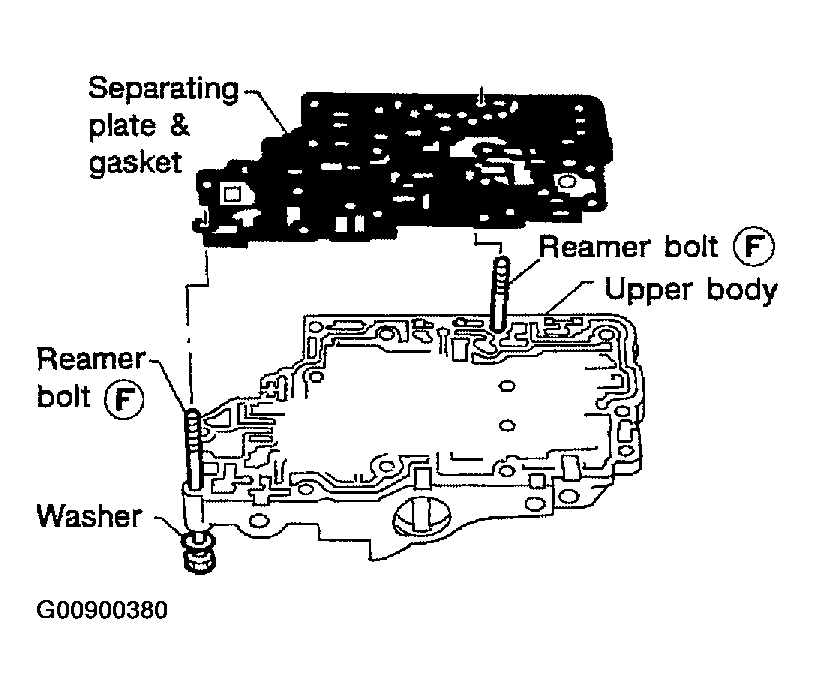

   3. Install reamer bolts F  from bottom of upper body. Using reamer bolts as guides, install separating plate and gaskets as a set.
      Fig 3: Installing Separating Plate And Gaskets On Upper Control Valve Body

      Courtesy of NISSAN MOTOR CO., U.S.A.
   4. Install pilot filter.
      Fig 4: Installing Pilot Filter

      Courtesy of NISSAN MOTOR CO., U.S.A.

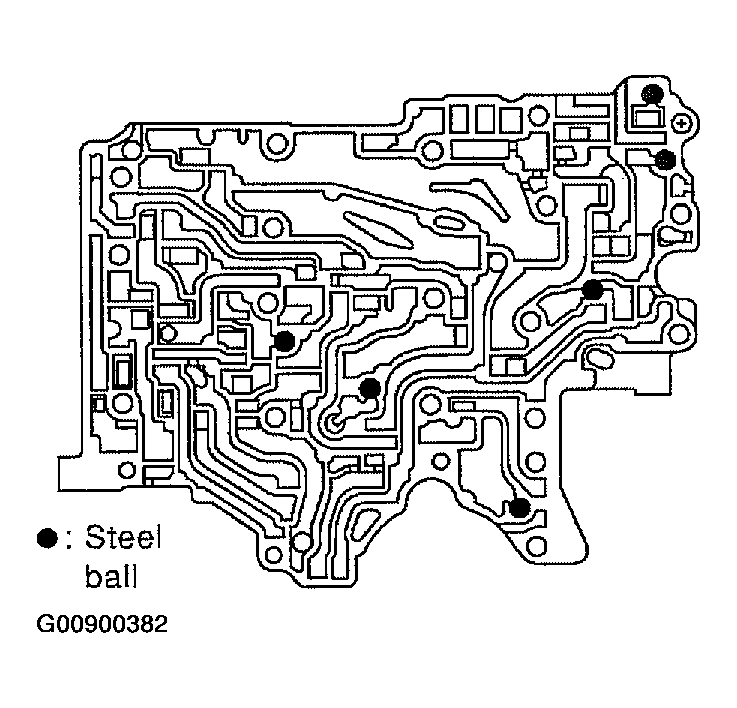

   5. Place inter body as shown in the illustration. Install steel balls in their proper positions.
      Fig 5: Installing Steel Balls On Inter Body

      Courtesy of NISSAN MOTOR CO., U.S.A.
   6. Install inter body on upper body using reamer bolts F  as guides.
      Fig 6: Installing Inter Body On Upper Body

      Courtesy of NISSAN MOTOR CO., U.S.A.
      • Be careful not to dislocate or drop steel balls.

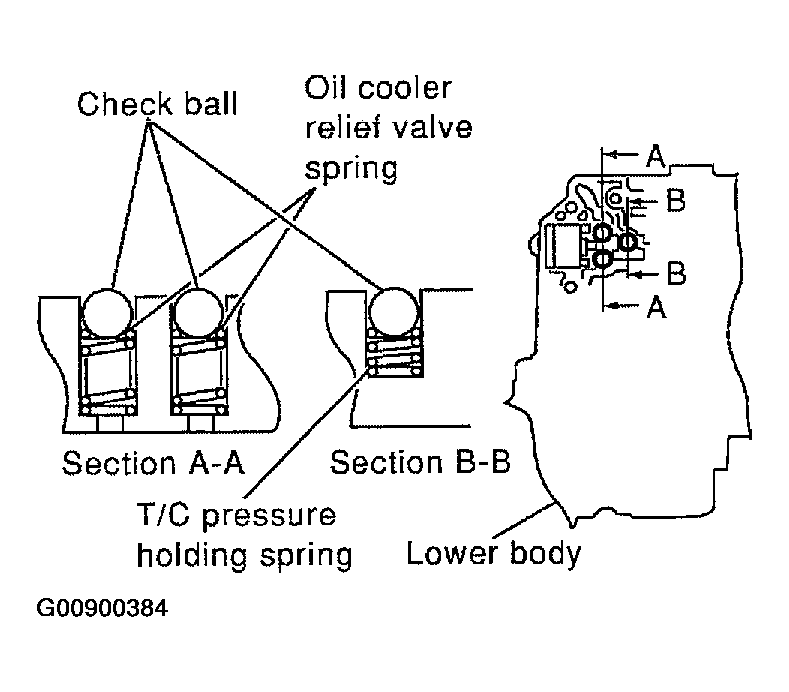

   7. Install steel balls, oil cooler relief valve springs and T/C pressure holding spring in their proper positions in lower body.
      Fig 7: Installing Steel Balls, Oil Cooler Relief Valve Springs And T/C Pressure Holding Spring

      Courtesy of NISSAN MOTOR CO., U.S.A.
   8. Install lower separating gasket, inter separating gasket and lower separating plate in order shown in the illustration.
      Fig 8: Installing Lower Separating Gasket, Inter Separating Gasket And Lower Separating Plate

      Courtesy of NISSAN MOTOR CO., U.S.A.

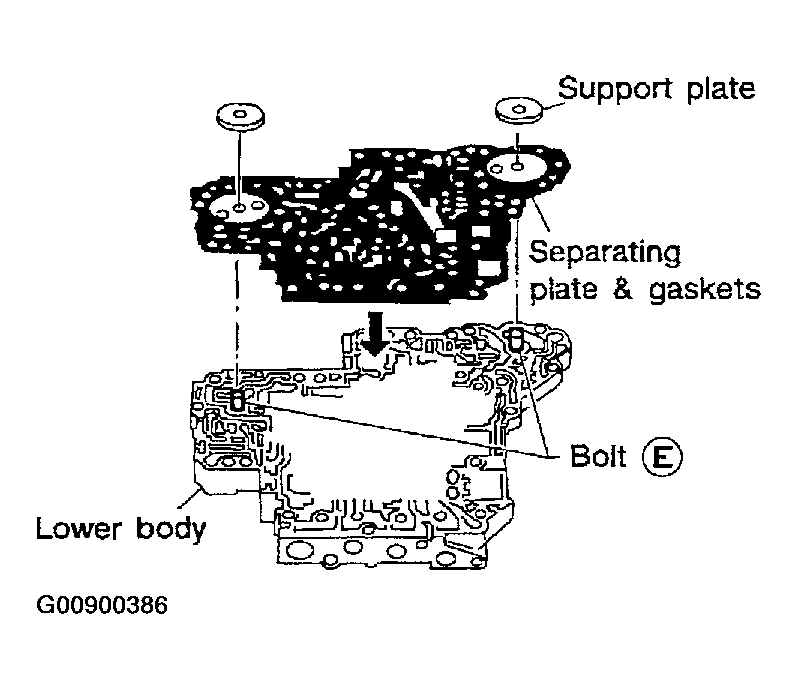

   9. Install bolts E  from bottom of lower body. Using bolts E  as guides, install separating plate and gaskets as a set.
      Fig 9: Installing Separating Plate And Gaskets On Lower Body

      Courtesy of NISSAN MOTOR CO., U.S.A.
   10. Install support plates on lower body.
   11. Install lower body on inter body using reamer bolts F  as guides and tighten reamer bolts F  slightly.
       Fig 10: Installing Lower Body On Inter Body

       Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install O-rings to solenoid valves and terminal body.
   • Apply ATF to O-rings.
3. Install and tighten bolts.
   Fig 11: Installing O-Rings To Solenoid Valves And Terminal Body

   Courtesy of NISSAN MOTOR CO., U.S.A.

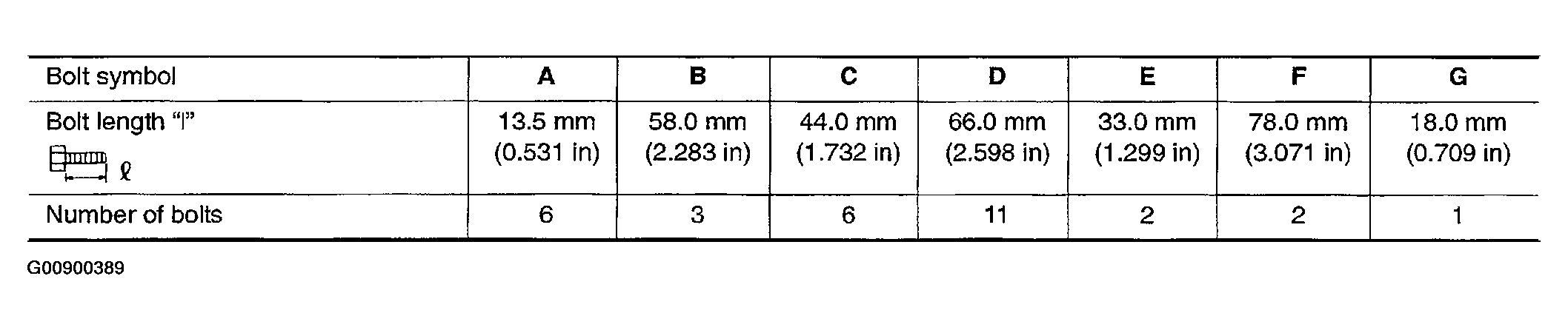

Bolt length, number and location:

Fig 12: Bolt Length, Number And Location Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

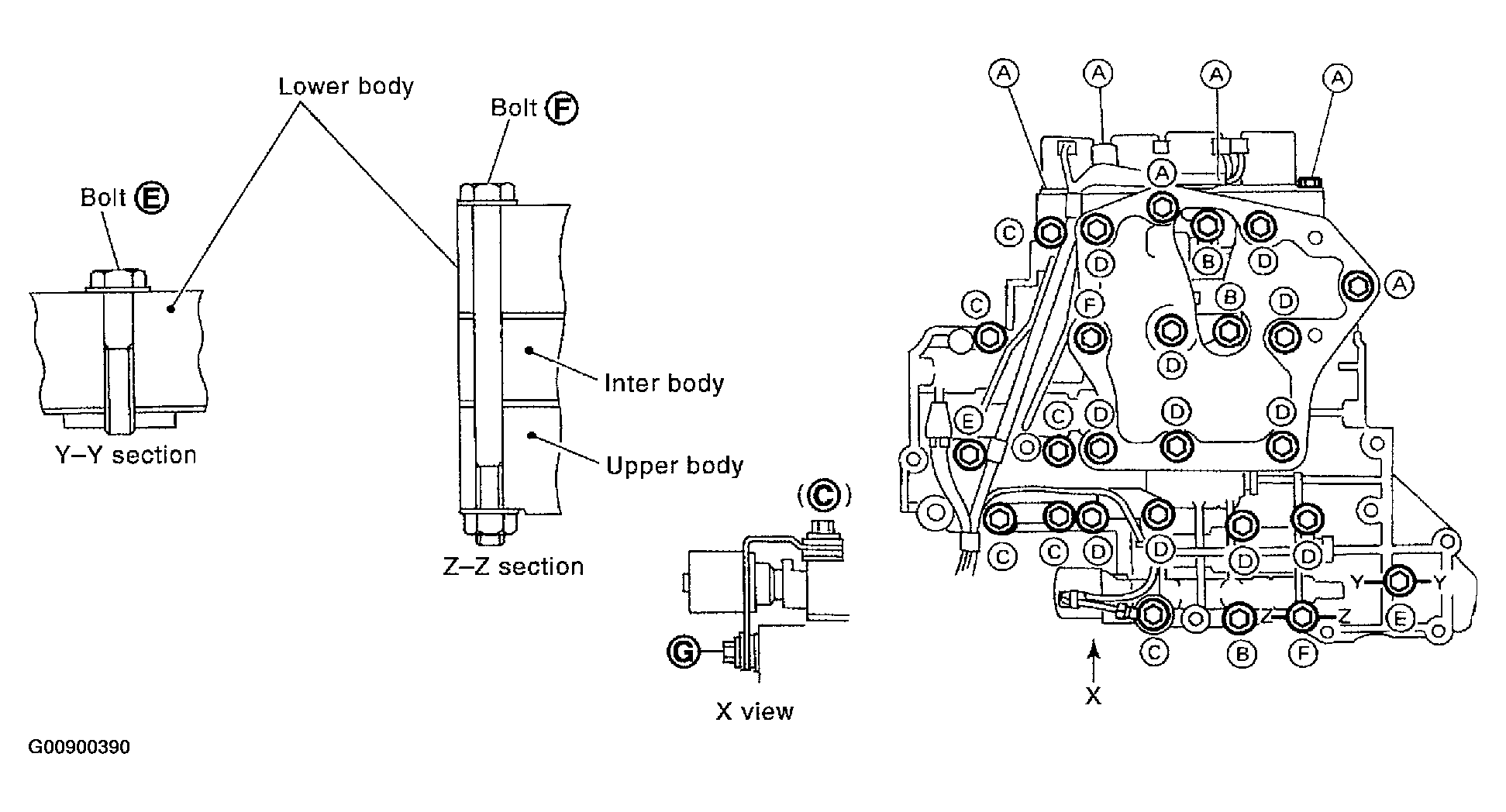

Fig 13: Identifying Location Of Control Valve Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

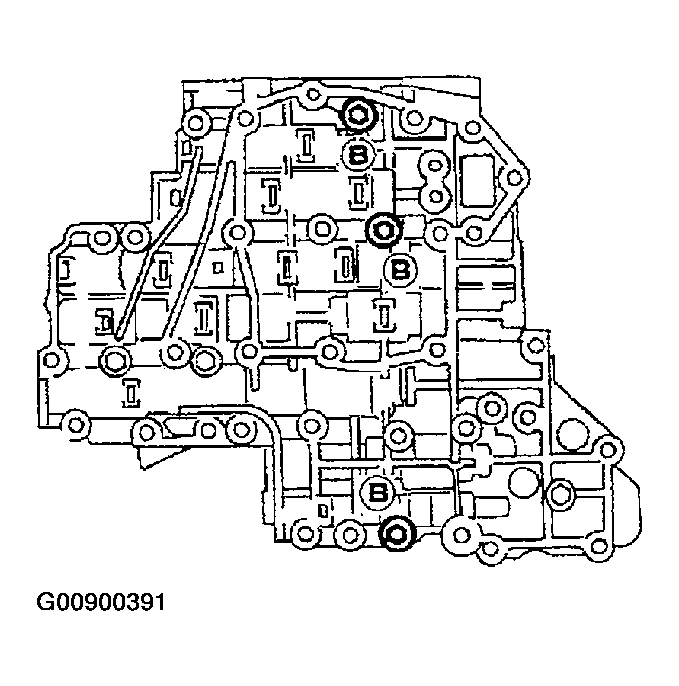

1. Install and tighten bolts B  to specified torque.
   1. 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)
   Fig 14: Tightening Control Valve Body Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.

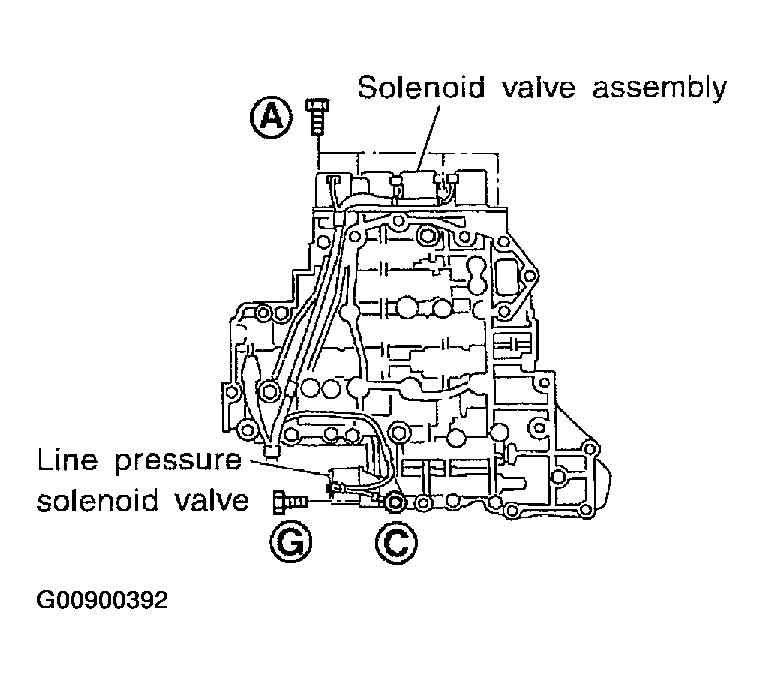

2. Install solenoid valve assembly and line pressure solenoid valve to lower body.
   Fig 15: Installing Solenoid Valve Assembly And Line Pressure Solenoid Valve To Lower Body

   Courtesy of NISSAN MOTOR CO., U.S.A.

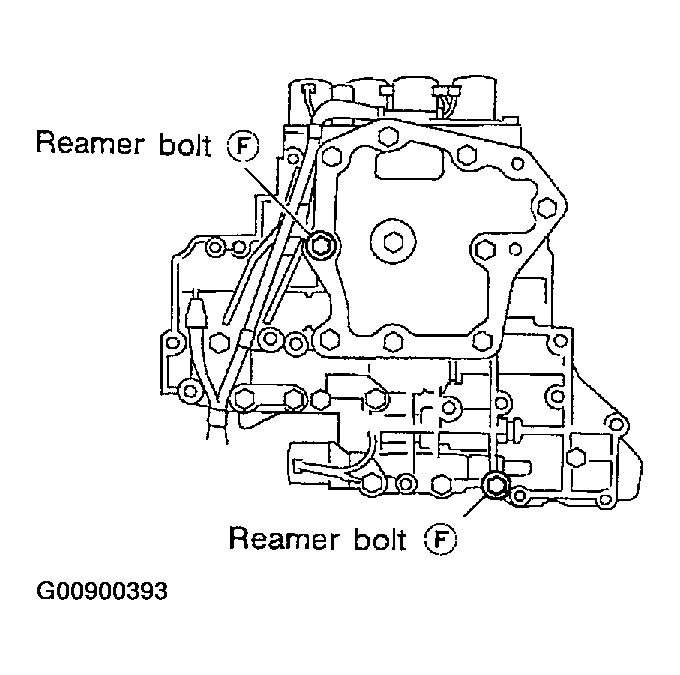

3. Remove reamer bolts F  and set oil strainer on control valve assembly.
   Fig 16: Removing Reamer Bolts From Control Valve Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Reinstall reamer bolts F  from lower body side.

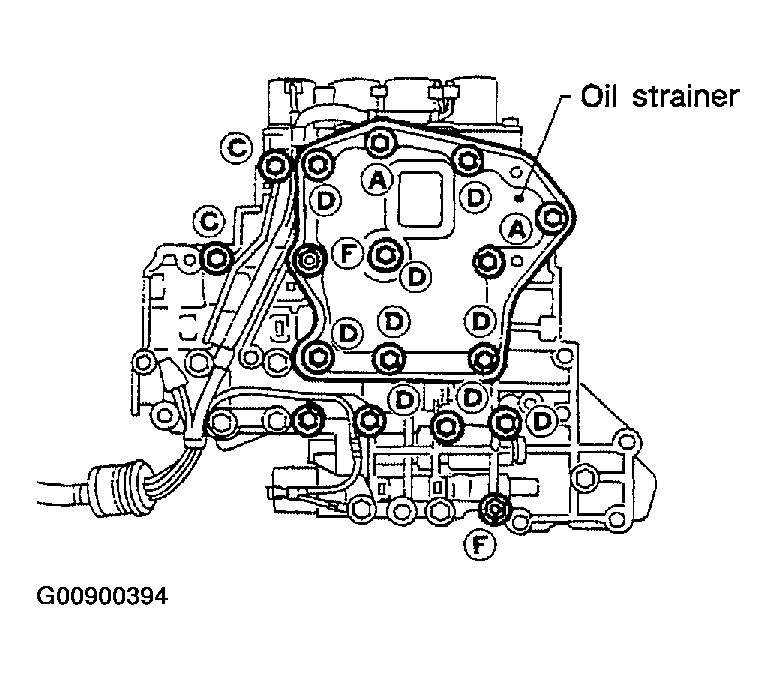

5. Tighten bolts A, C, D  and F  to specified torque.
   1. 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)
   Fig 17: Identifying Tightening Sequence Of Oil Strainer Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.

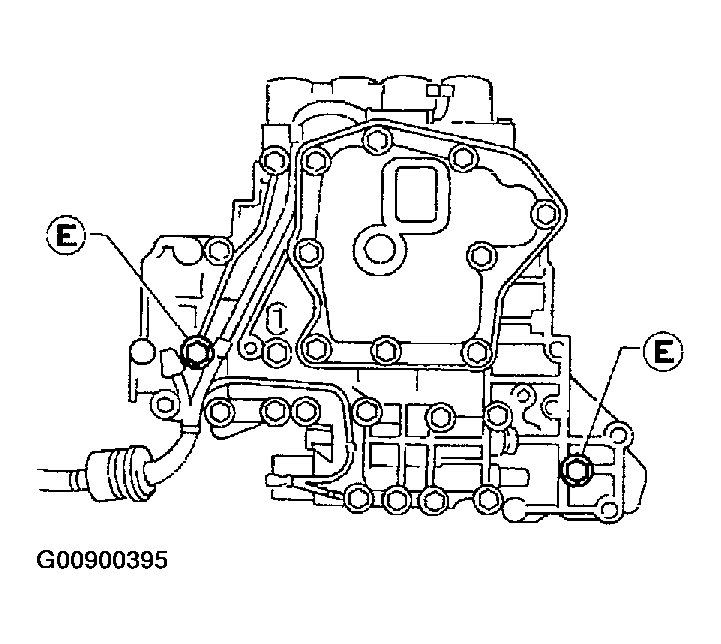

6. Tighten bolts E  to specified torque.
   1. 3.4 - 4.4 N.m (0.35 - 0.45 kg-m, 30.4 - 39.1 in-lb)
   Fig 18: Tightening Control Valve Assembly Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.
