Gear Components

WARNING: This page is about a different variant/trim than selected.

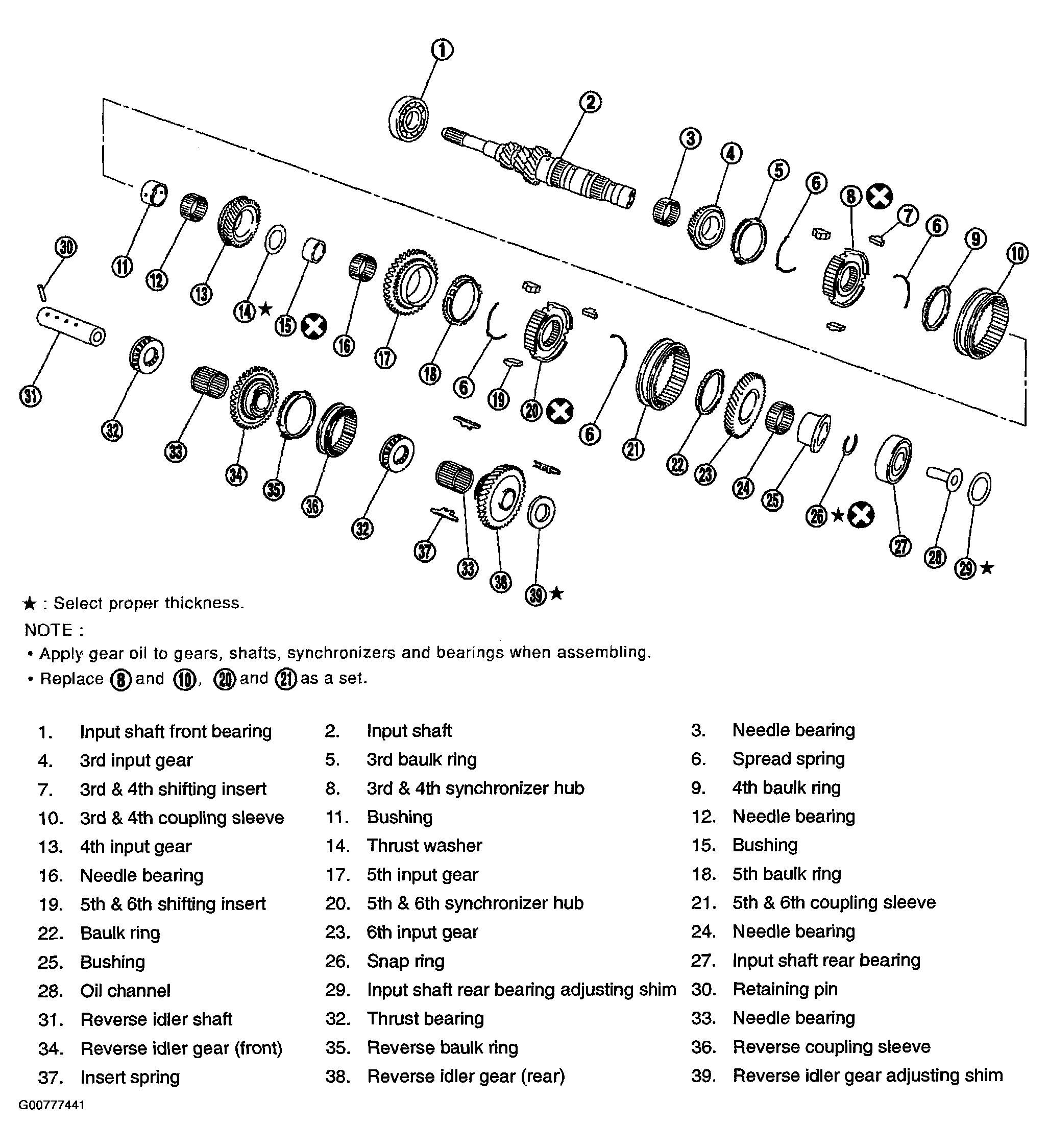

Fig 1: Identifying Gear Components (1 Of 2)
G00777441Courtesy of NISSAN MOTOR CO., U.S.A.

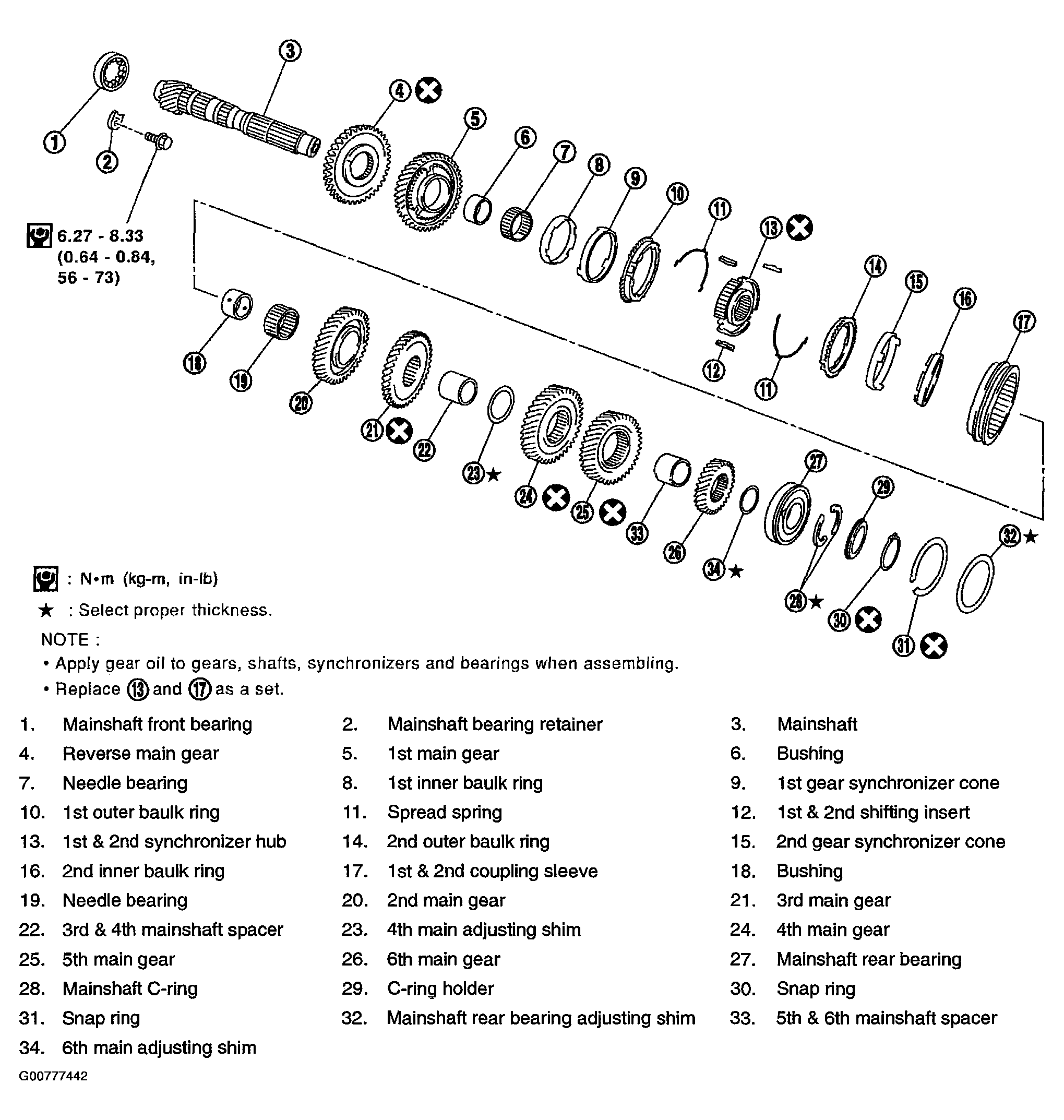

Fig 2: Identifying Gear Components (2 Of 2)
G00777442Courtesy of NISSAN MOTOR CO., U.S.A.
