Disassembly and Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Using Tool (drift), install the differential side bearing (transaxle case side) as shown.
    Fig 1: Installing Differential Side Bearing (Transaxle Case Side)
    G00777571Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Align and install the speedometer drive gear onto the differential case as shown.

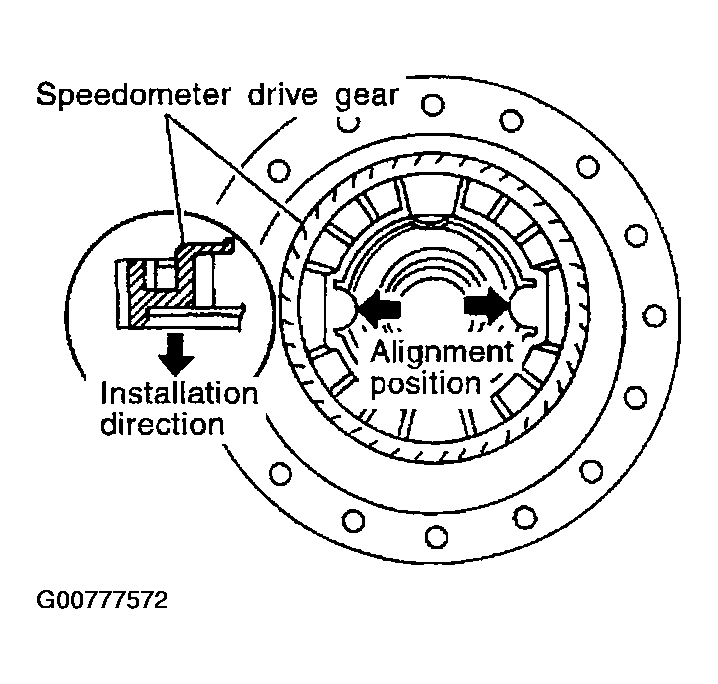

    Fig 2: Installing Speedometer Drive Gear Onto Differential Case
    G00777572Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Using Tool (drift), install the differential side bearing (clutch housing side) as shown.
    Fig 3: Installing Differential Side Bearing (Clutch Housing Side)
    G00777573Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install the final gear into the differential case, and tighten the final gear bolts to specification.

    Final gear bolts: Refer to . " FINAL DRIVE COMPONENTS  "  .

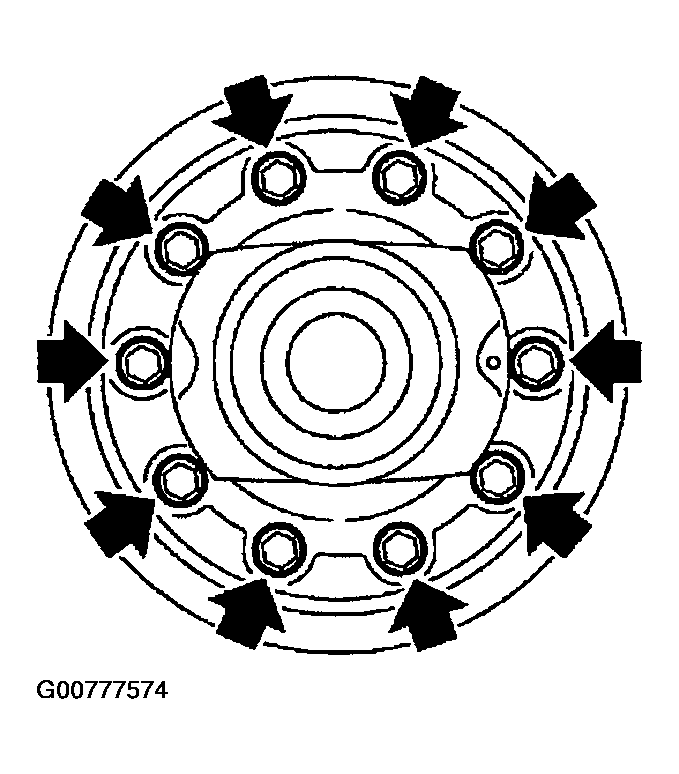

    Fig 4: Installing Final Gear Into Differential Case
    G00777574Courtesy of NISSAN MOTOR CO., U.S.A.
