Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Installation is in the reverse order of removal.

Tighten the starter motor bolts to specification.
Starter motor bolts: 31 - 42 N.m (3.2 - 4.3 kg-m, 23 - 31 ft-lb)
Tighten the LH and rear mounts to specification. Refer to . "REMOVAL AND INSTALLATION ".
Tighten the transaxle to engine bolts to specification.

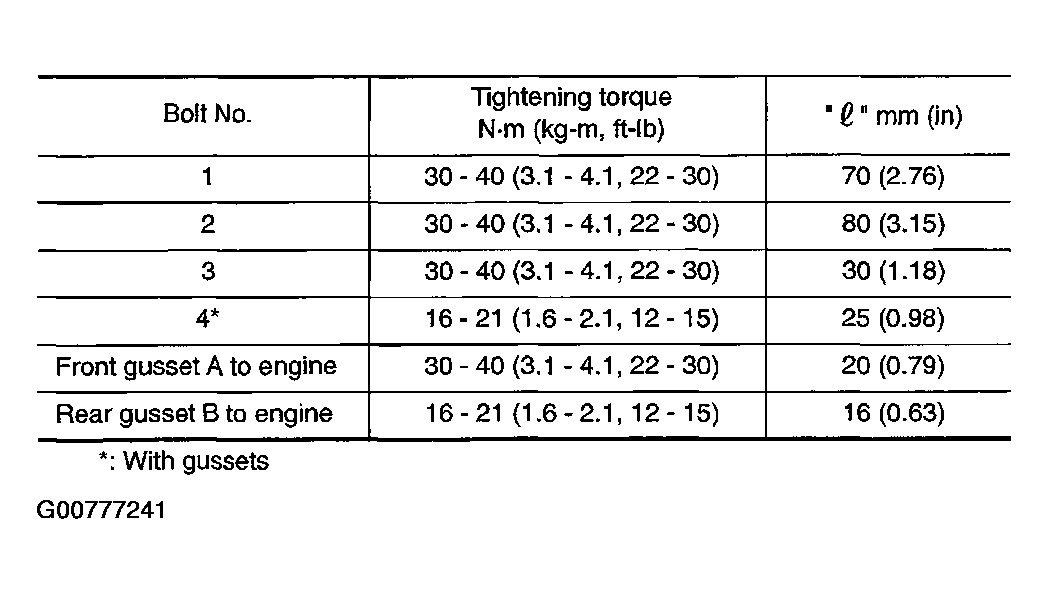

Fig 1: Transaxle To Engine Bolts Tightening Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

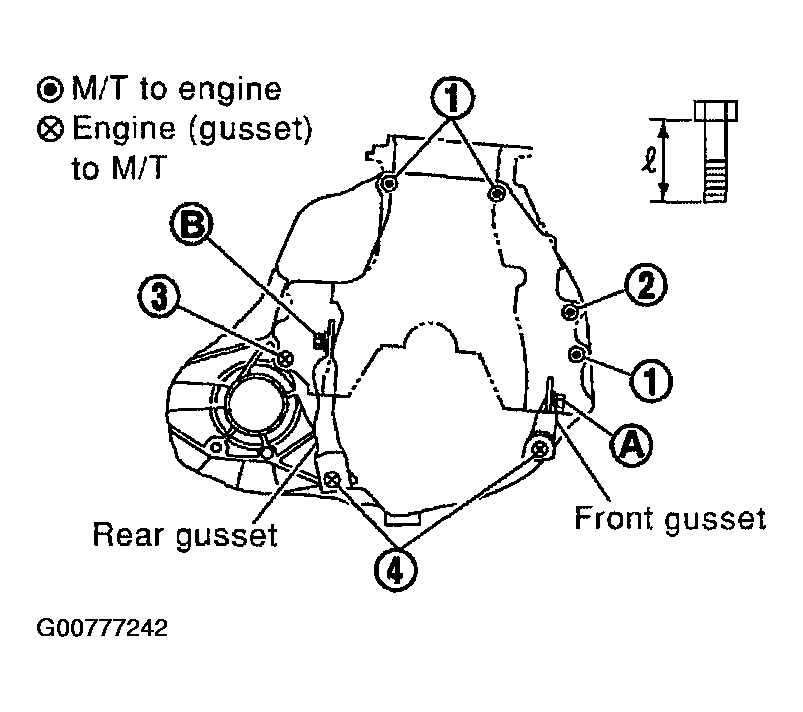

Fig 2: Identifying Tightening Sequence Of Transaxle To Engine Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.
