Section 7 (Manual Transaxle - RS5F70A)
>>
Control Linkage
>>
Removal and Installation
>>
Transaxle Gear Control
Transaxle Gear Control
WARNING:
This page is about a different variant/trim than selected.
Refer to the illustration for the
REMOVAL AND INSTALLATION PROCEDURE
.

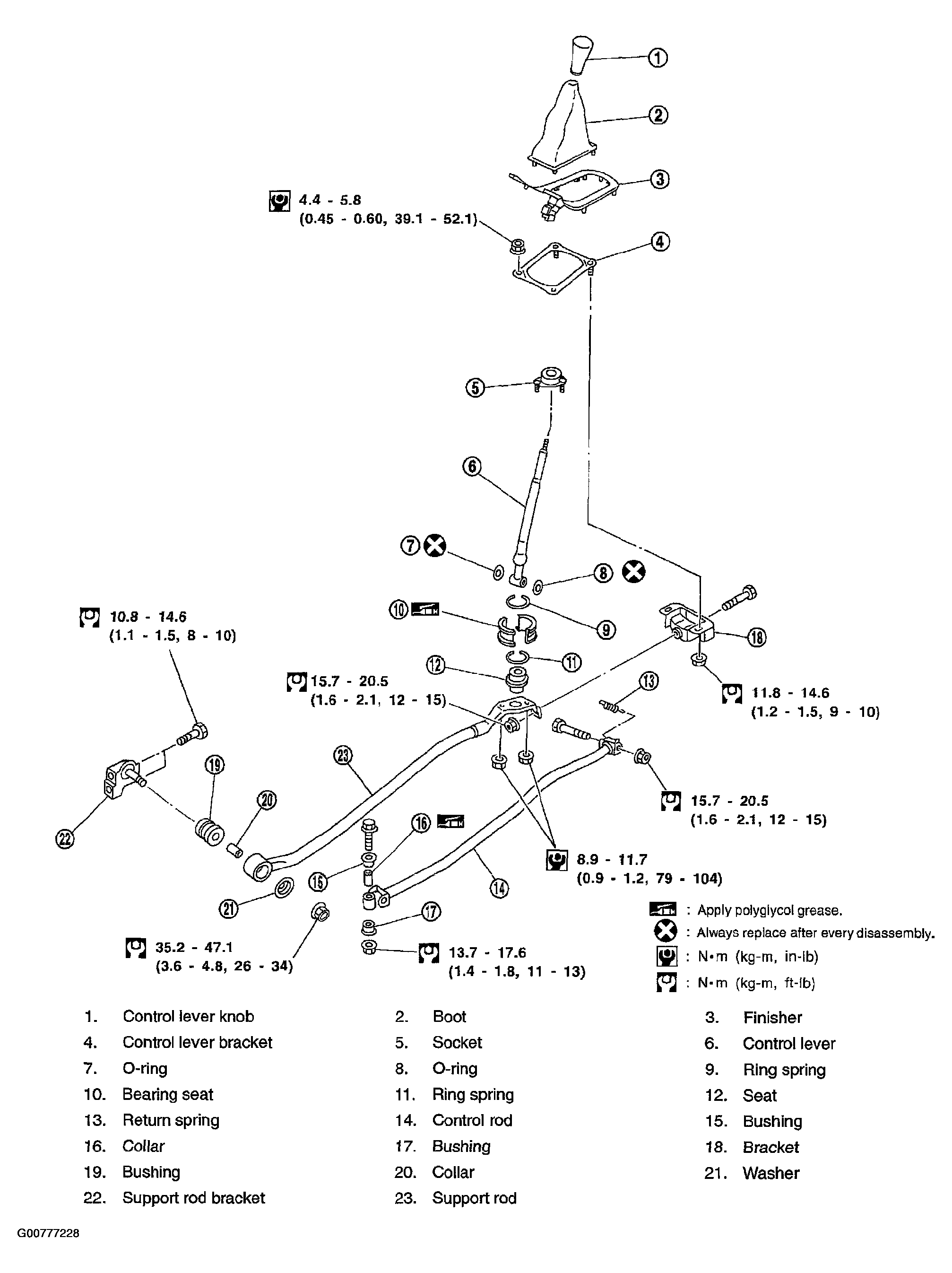

Fig 1: Removal And Installation Of Transaxle Gear Control And Tightening Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
