Section 5 (Clutch System - RS5F70A)
>>
Service Data And Specifications (SDS)
>>
Clutch Disc
Clutch Disc
WARNING:
This page is about a different variant/trim than selected.

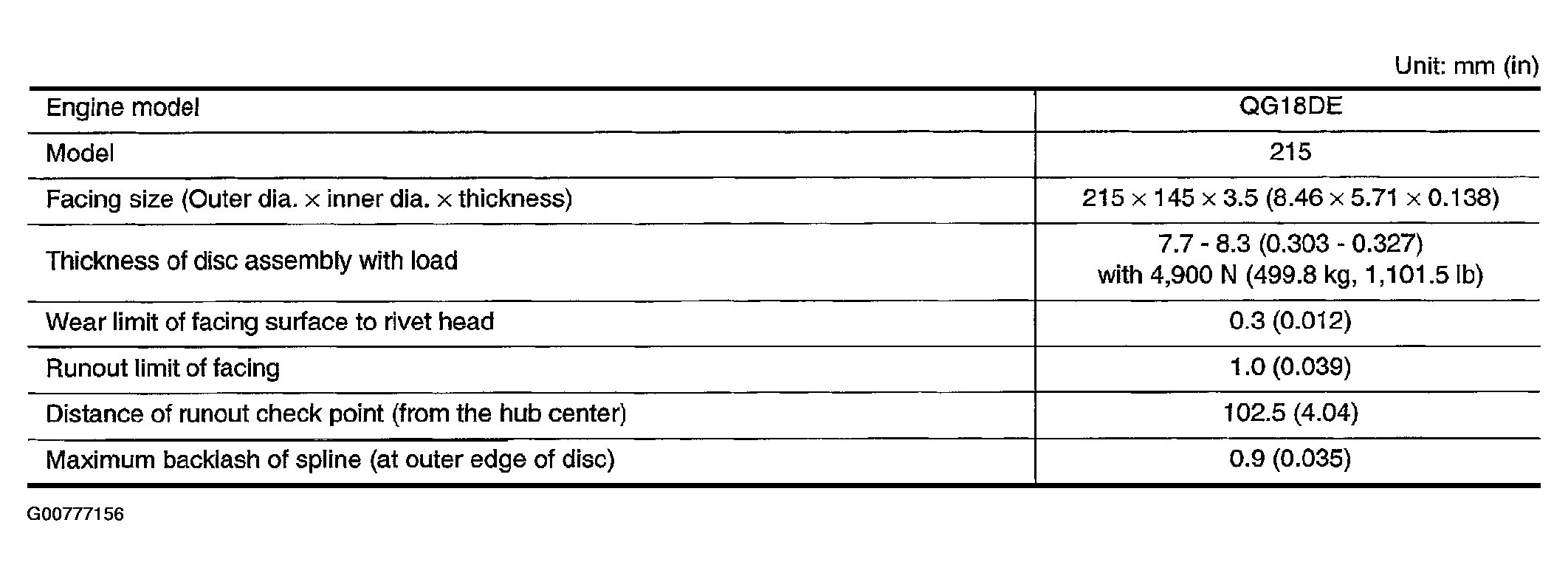

Fig 1: Clutch Disc Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
