Disassembly and Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

Install oil cooler (A/T model only).

Fig 1: Installing Oil Cooler
Courtesy of NISSAN MOTOR CO., U.S.A.

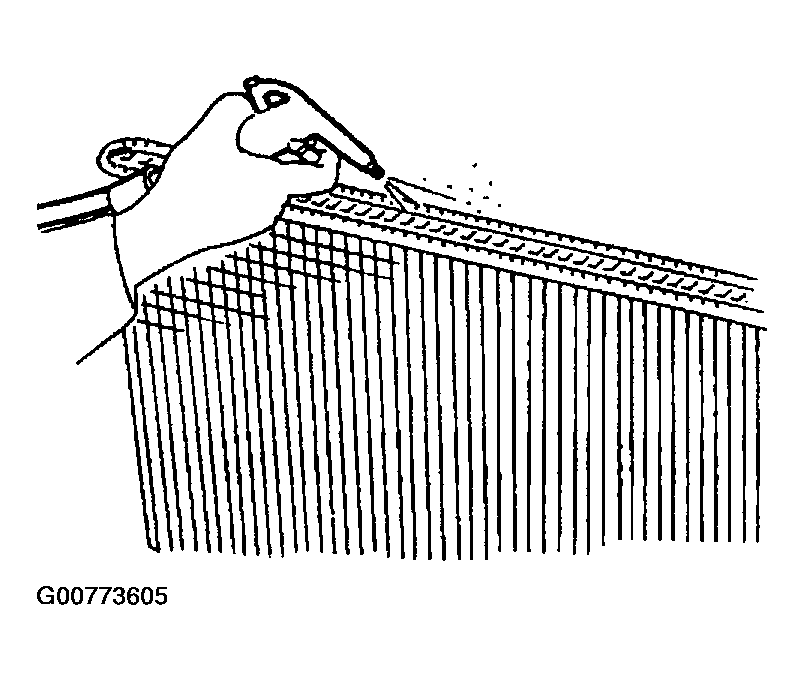

Clean contact portion of tank.

Fig 2: Cleaning Contact Portion Of Tank
Courtesy of NISSAN MOTOR CO., U.S.A.

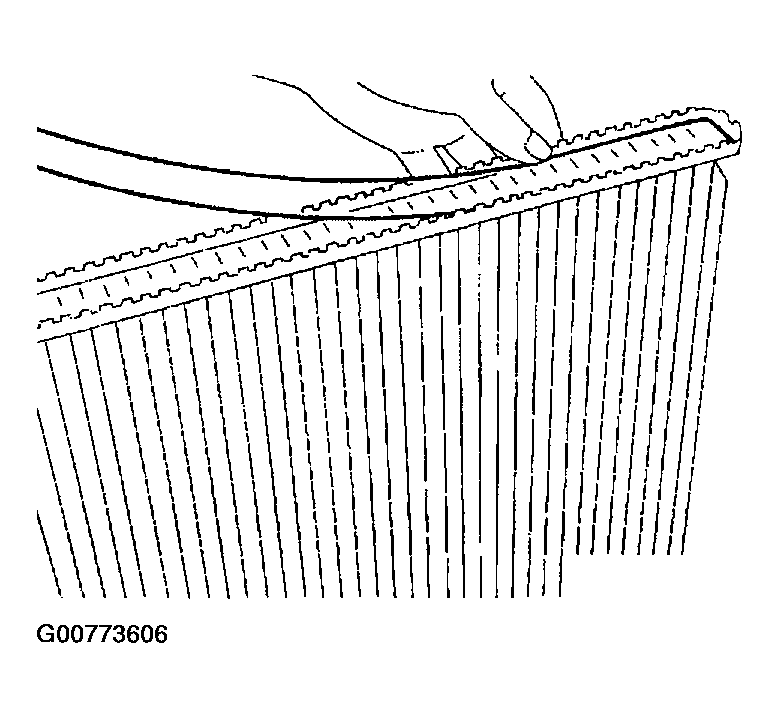

Install sealing rubber.
NOTE: Push it in with fingers.

CAUTION: Be careful not to twist sealing rubber.

Fig 3: Installing Sealing Rubber
Courtesy of NISSAN MOTOR CO., U.S.A.

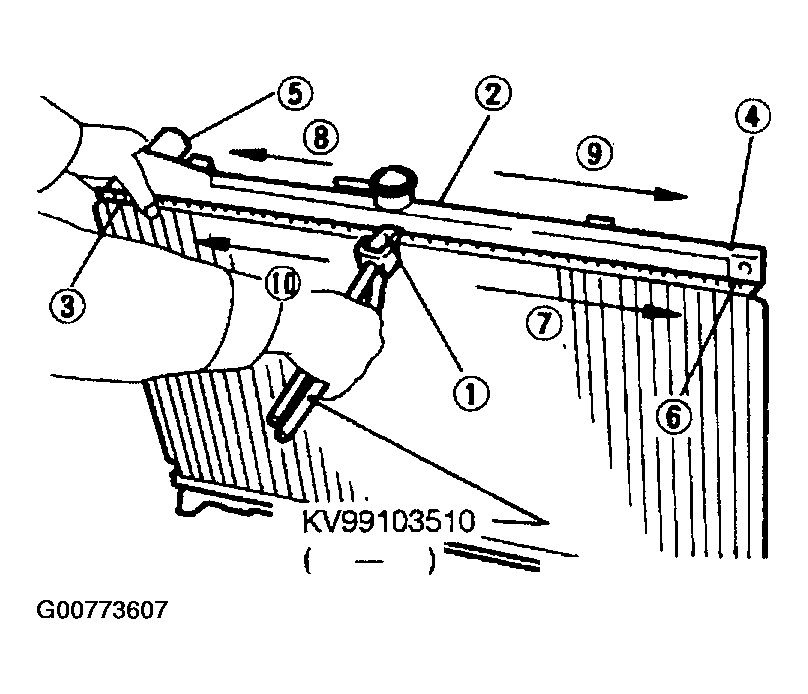

Crimp the tank rim in a specified sequence using Tool.

Fig 4: Crimping Tank Rim In A Specified Sequence Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

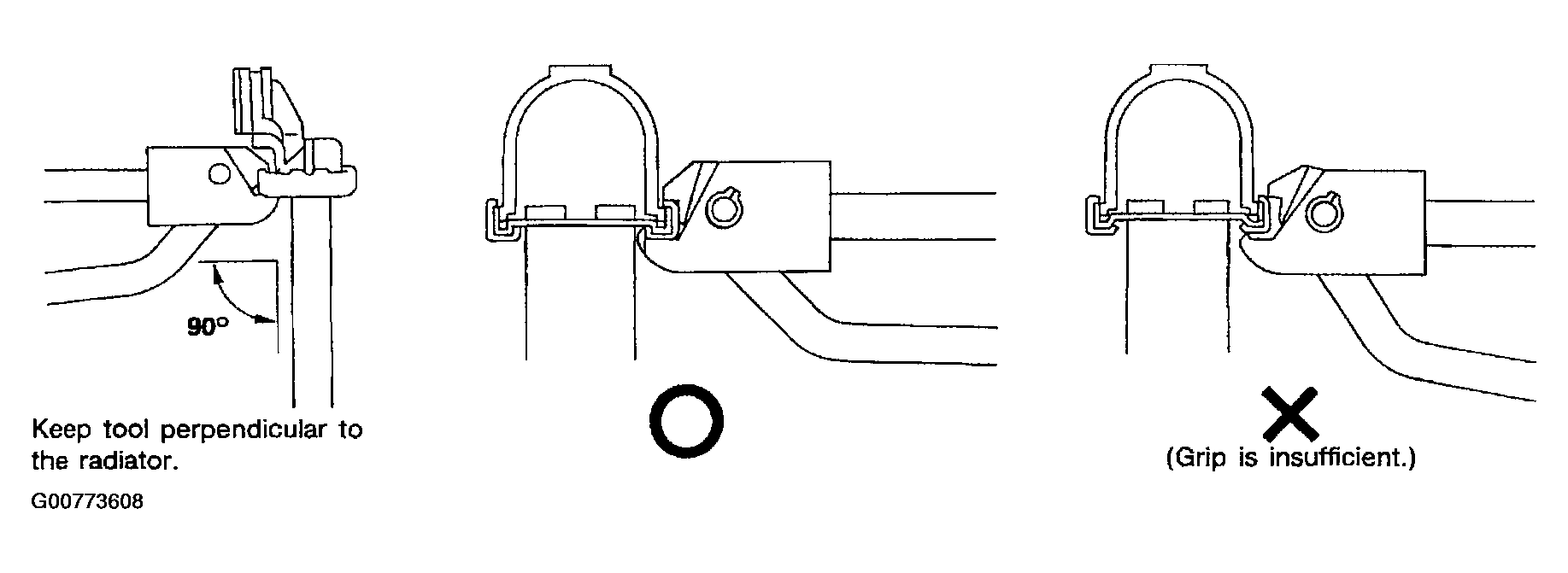

Fig 5: Identifying Right Position Gripping To Radiator
Courtesy of NISSAN MOTOR CO., U.S.A.
- Use pliers in the locations where the Tool cannot be used.
Fig 6: Using Pliers In Locations Where Tool Cannot Be Used
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that the tank rim is completely crimped down.
1. Standard height "H" : 8.0-8.4 mm (0.315-0.331 in)
Check for any coolant leakage. Refer to , "CHECKING COOLING SYSTEM FOR LEAKS ".

Fig 7: Identifying Sealing Rubber And Tank
Courtesy of NISSAN MOTOR CO., U.S.A.
