Auto Amp. Terminals And Reference Value: Notes

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Measure voltage between each terminal and ground by following Terminals and Reference Value for unified meter and A/C amp.

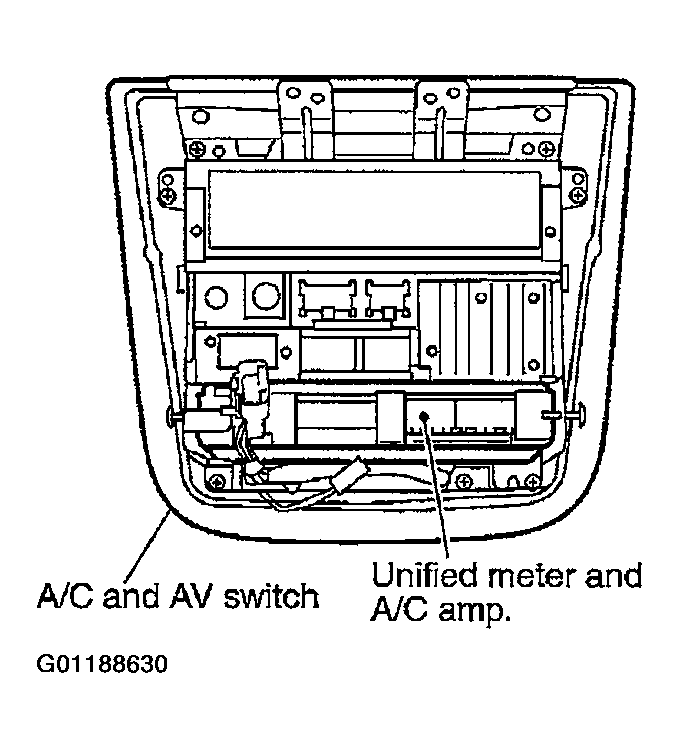

Fig 1: Locating Unified Meter, Auto Amp & A/C Switches
G01188630Courtesy of NISSAN MOTOR CO., U.S.A.
