Work Flow

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

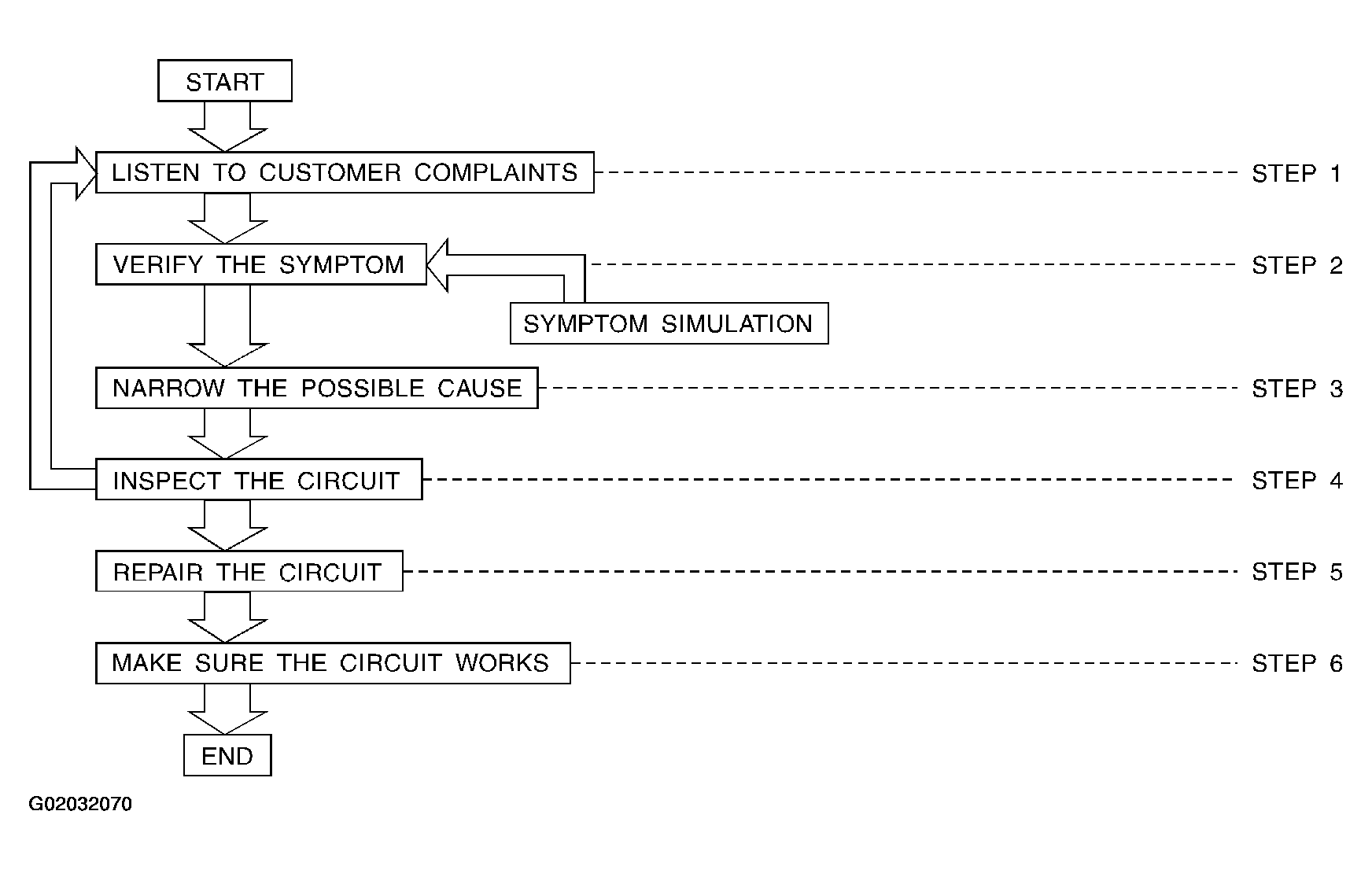

Fig 1: Efficient Diagnosis For An Electrical Incident - Work Flow

Courtesy of NISSAN MOTOR CO., U.S.A.

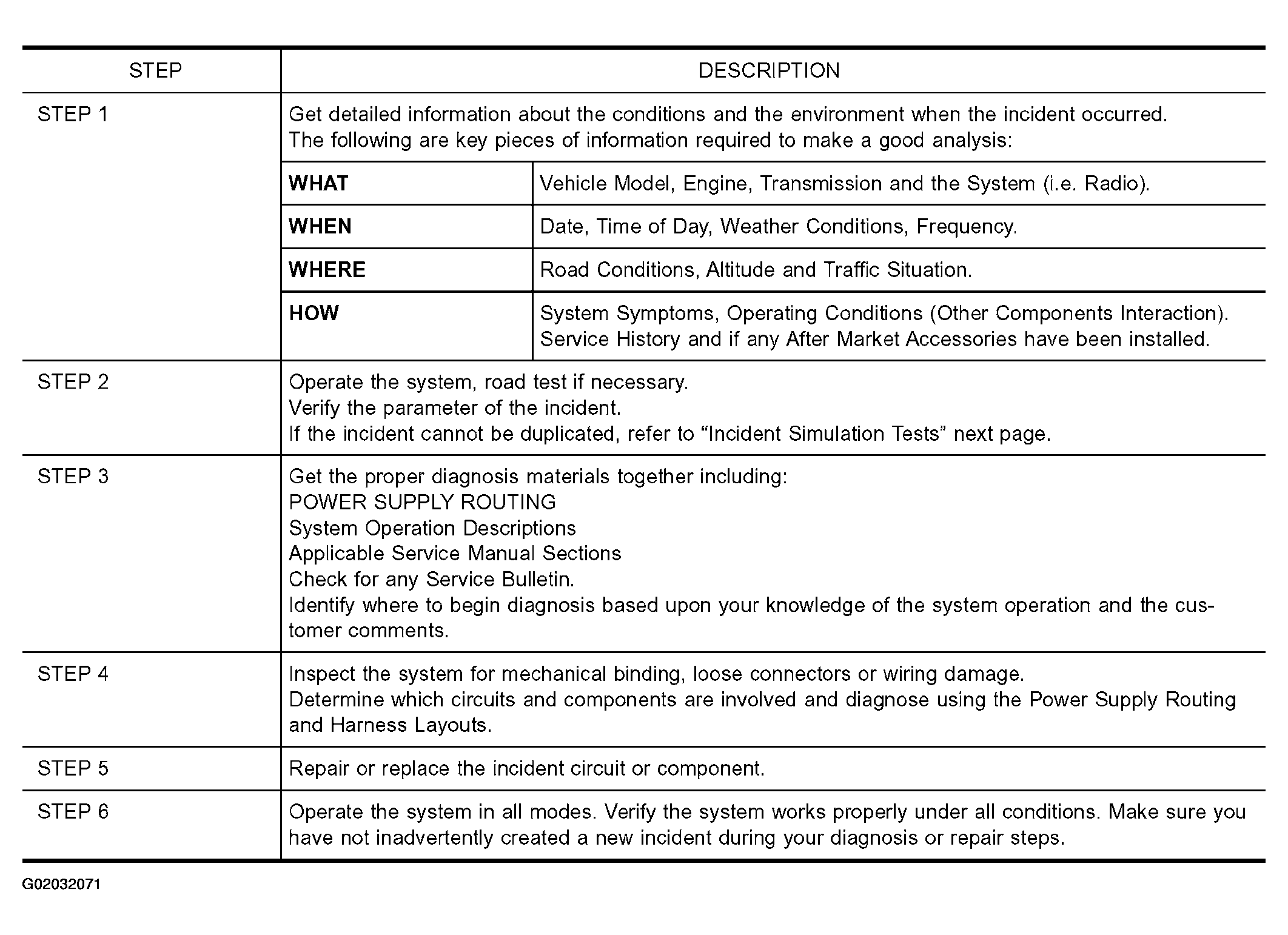

Fig 2: Description Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
