CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to Data link connector, which is located in left side dash panel.

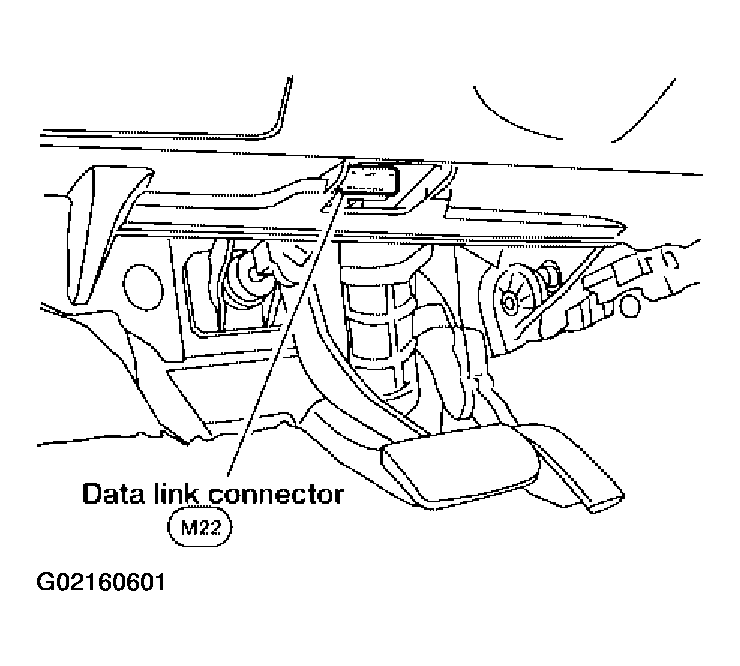

    Fig 1: Identifying Data Link Connector
    G02160601Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START".
    Fig 2: Consult II Start Screen
    G02160602Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "A/T".
    Fig 3: Consult II Select System Screen
    G02160603Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DTC WORK SUPPORT".
    Fig 4: Consult-II Self Diag Mode Screen
    G02160604Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch select item menu (1ST, 2ND, etc.).
    Fig 5: Consult-II Select Work Item Screen
    G02160605Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "START".

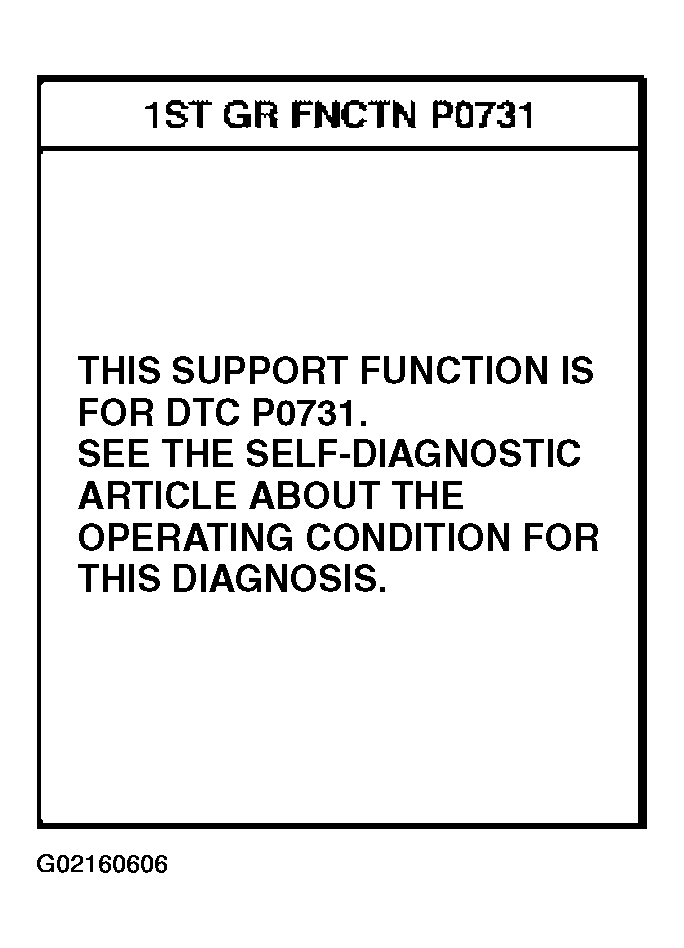

    Fig 6: Consult-II 1St GR FNCTN P0731 Screen (1 Of 9)
    G02160606Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

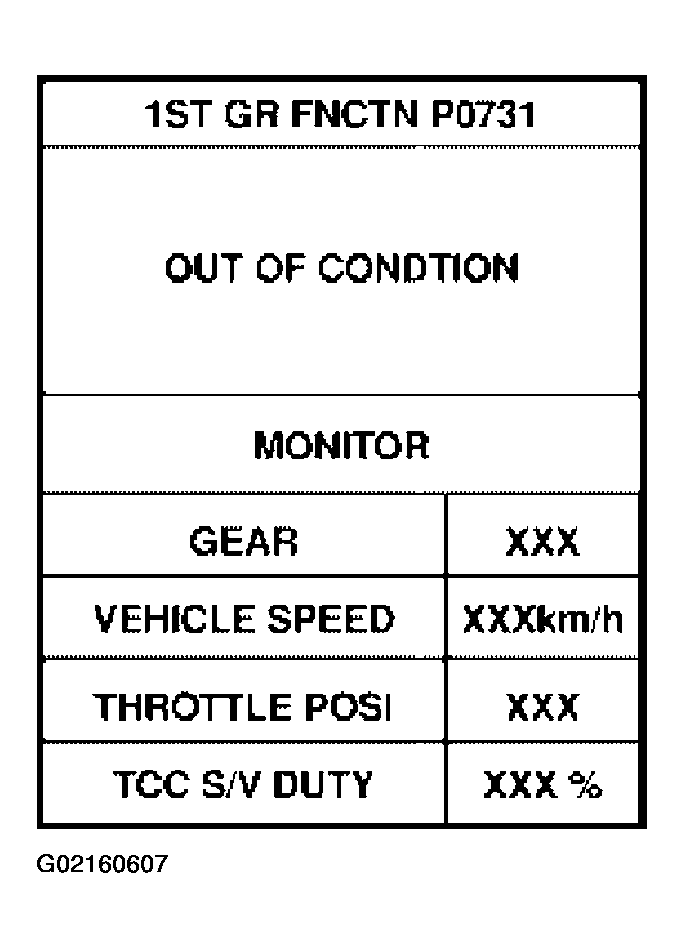

    Fig 7: Consult-II 1St GR FNCTN P0731 Screen (2 Of 9)
    G02160607Courtesy of NISSAN MOTOR CO., U.S.A.
    • When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

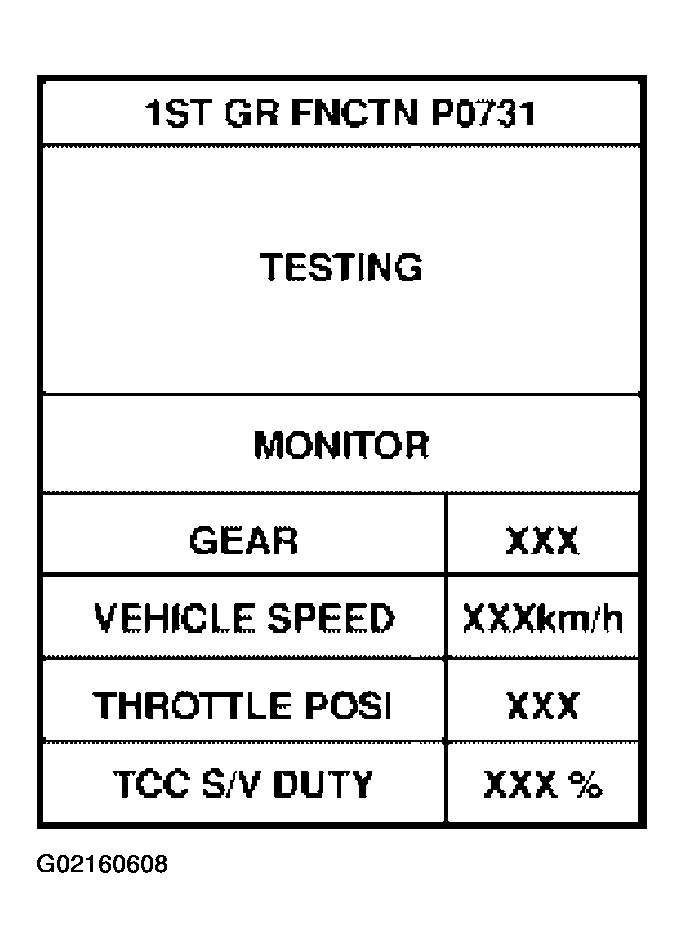

    Fig 8: Consult-II 1St GR FNCTN P0731 Screen (3 Of 9)
    G02160608Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".
    Fig 9: Consult-II 1St GR FNCTN P0731 Screen (4 Of 9)
    G02160609Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 10: Consult-II 1St GR FNCTN P0731 Screen (5 Of 9)
    G02160610Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Perform test drive to check gear shift feeling in accordance with instructions displayed.

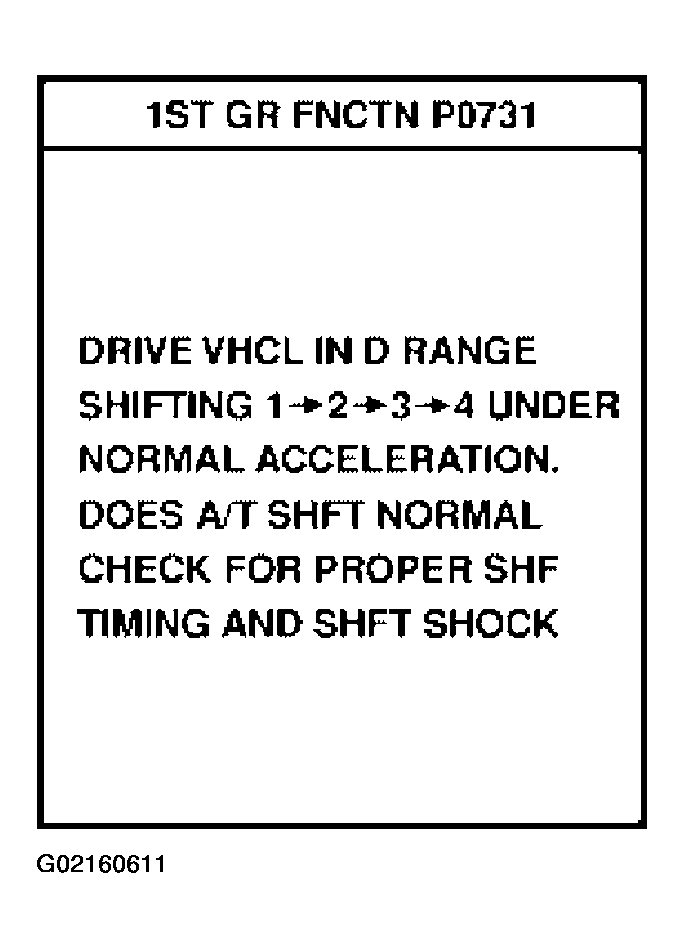

    Fig 11: Consult-II 1St GR FNCTN P0731 Screen (6 Of 9)
    G02160611Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Touch "YES" or "NO".
    Fig 12: Consult-II 1St GR FNCTN P0731 Screen (7 Of 9)
    G02160612Courtesy of NISSAN MOTOR CO., U.S.A.
  13. CONSULT-II procedure ended.
    Fig 13: Consult-II 1St GR FNCTN P0731 Screen (8 Of 9)
    G02160613Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 14: Consult-II 1St GR FNCTN P0731 Screen (9 Of 9)
    G02160614Courtesy of NISSAN MOTOR CO., U.S.A.

If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".
