Connector And Terminal Pin Kit

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Use the connector and terminal pin kits listed below when replacing connectors or terminals. The connector and terminal pin kits contain some of the most commonly used NISSAN/INFINITI connectors and terminals.

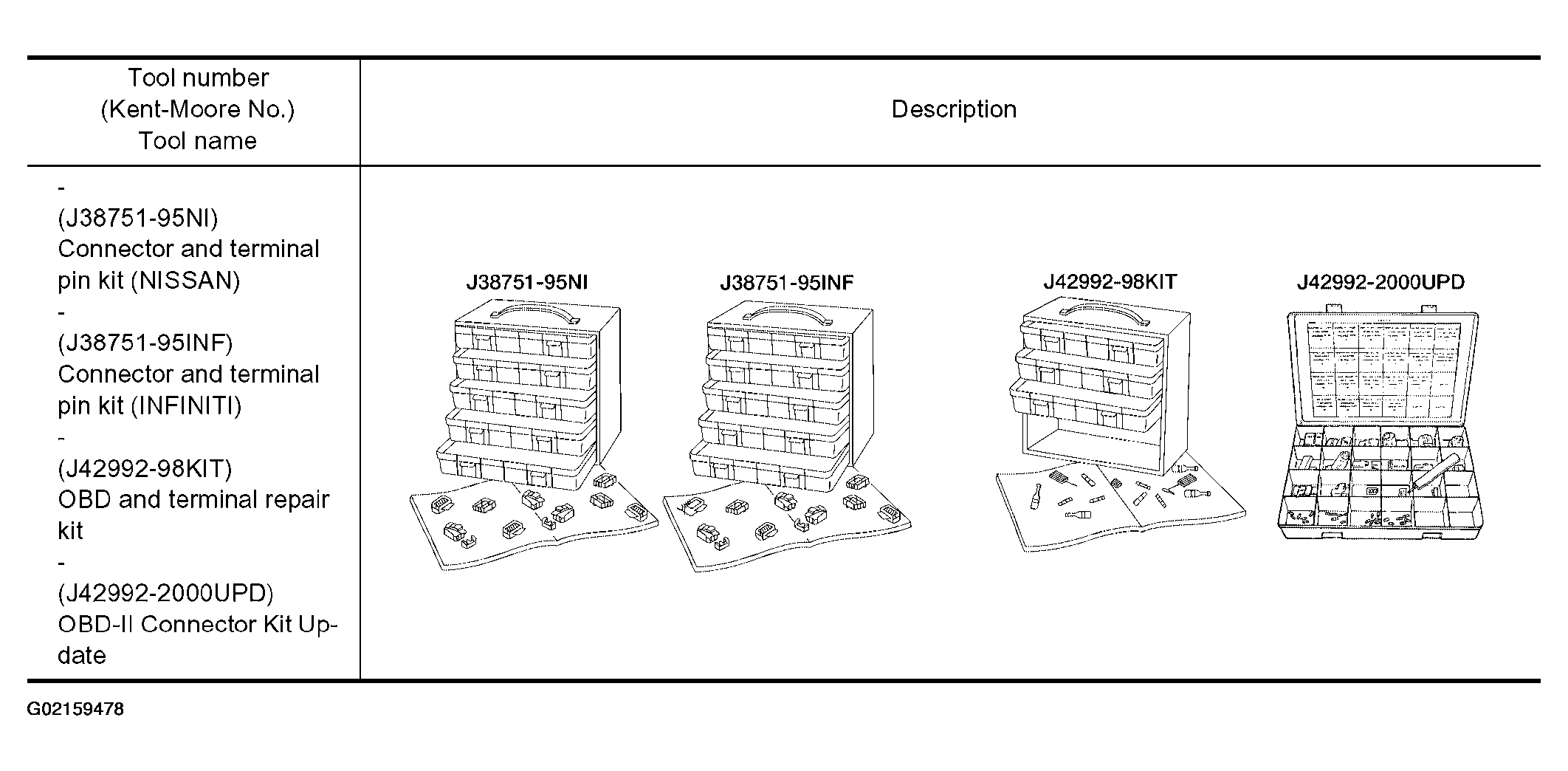

Fig 1: Connector And Terminal Pin Kit Description Chart
G02159478Courtesy of NISSAN MOTOR CO., U.S.A.
